Summary of Contents for AmbiSonic Systems D3200

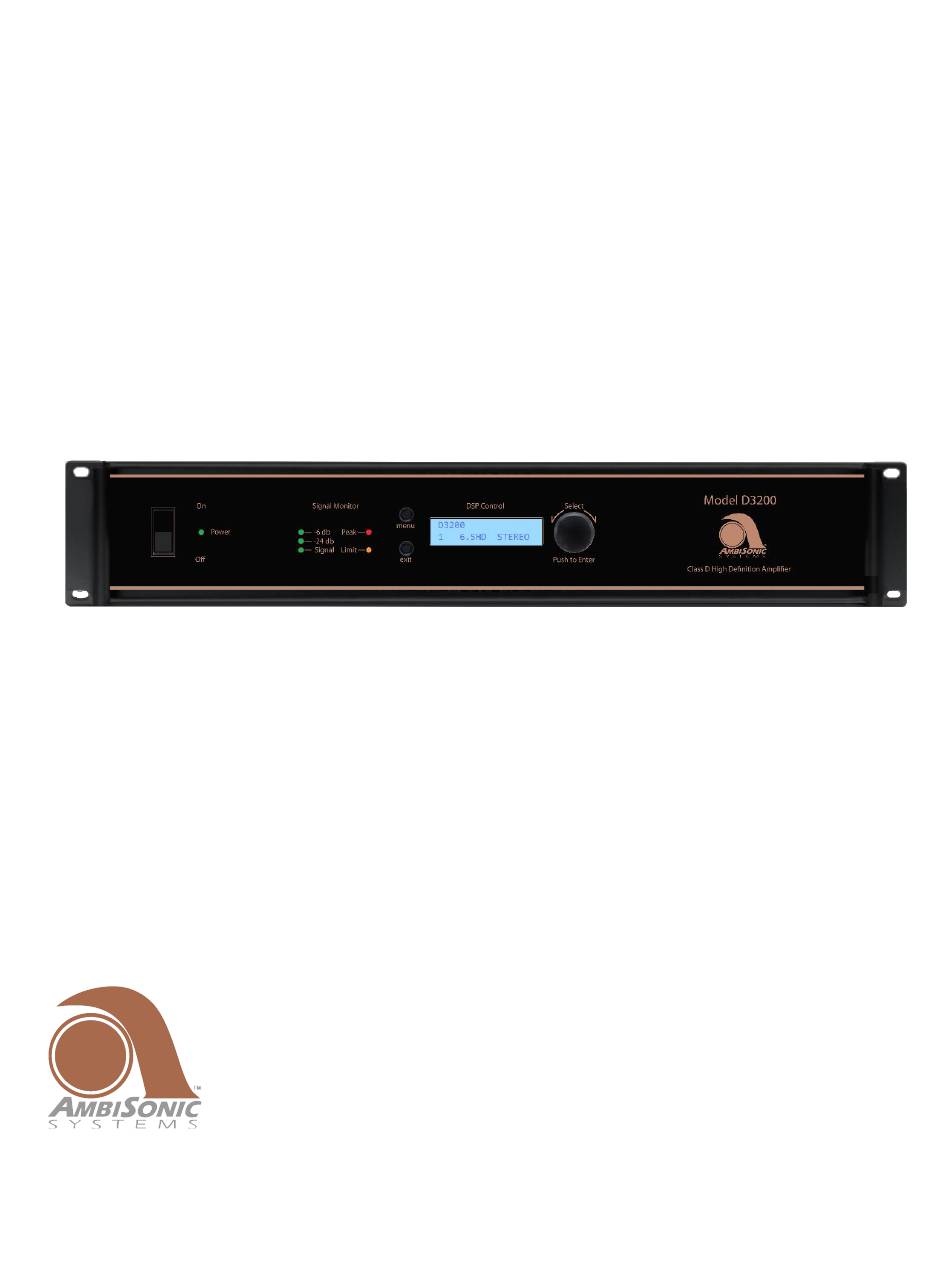

- Page 1 D3200 Owner’s Manual...
- Page 2 Intended to alert the user to the presence of uninsulated: dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. - Page 4 18. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: Duration Per Day In Hours...
- Page 5 (2) this device must accept any interference received, that may cause undesired operation. Warning: Changes or modifications to the equipment not approved by Ambisonic Systems LLC can void the users authority to use the equipment.
-
Page 6: Introduction Features
Introduction / Features AmbiSonic’s new Model D3200 amplifier has been designed and engineered to deliver the best possible “Audiophile” quality sound. Utilizing high speed class D topology, dramatically reducing weight, and offering excellent reliability and thermal efficiency. Features: Full featured Digital Signal Processor (DSP). -
Page 7: Front Panel Controls And Indicators
Front Panel Controls & Indicators Power Switch / On-Off (See additional info ACS Console Software Manual) Menu Button (DSP Navigation) Exit Button (DSP Navigation) Select Knob (DSP Navigation) (Note” When Ch 1 & Ch 2 are Linked, this Knob becomes an Input Gain Control for both channels when not used for Navigation) LCD Screen Power / Standby Indicator... - Page 8 Front Panel Controls & Indicators Continued Limit Indicator (Orange = when any output level reaches the output peak limiter threshold, or if there is gain reduction in any output compressor) Peak Indicator (Red = when any output level exceeds the output peak limiter threshold by 6dB, or if there is 6dB gain reduction in any output compressor...
-
Page 9: Rear Panel Connections & Indicators
Rear Panel Connections & Indicators AC Power Inlet (95 -240 Vac / 50-60 Hz) Main Power Switch Analog Input 1 (3-pin XLR (Pin 2+) Analog Link 1 (Supplies parallel output signal for connecting multiple amplifiers) Analog Input 2 (3-pin XLR (Pin 2+) Analog Link 2 (Supplies parallel output signal for connecting multiple amplifiers) AES/EBU Input... - Page 10 Rear Panel Connections & Indicators Continued Channel 1 Speaker Output (4 Pin twist lock connector) (Allows use of 4 conductor cable for high current) Out 1 Channel 2 Speaker Output (4 Pin twist lock connector) (Allows both channels 2 & 3 on single 4 conductor cable) (Note: For Bridge Mode, output channels 2 &...
- Page 11 Rear Panel Connections & Indicators Continued Rear Panel Indicators (Green = Front panel Power Switch On) (Red = AES connection Locked) (Yellow = Network connection present) Rear Panel Signal Level Indicators (Green = Signal) (Yellow = Limit) (Red = Peak) External Trigger Connector (ac/dc 4 -15V) (In and Out for multiple amplifier connections)
-
Page 12: Dsp Navigation
DSP Navigation Load Preset a) Press Menu b) Turn Select Knob to Desired Preset c) Press Select Knob d) Turn Select Knob to select YES e) Press Select Knob to Load... - Page 13 DSP Navigation Continued Edit Preset a) Press Select Knob b) Turn Select Knob to choose Input or Output channels (arrow pointing left) c) Press Select Knob to (arrow pointing right) d) Turn Select Knob to Select Functions Functions: Parameters: Gain Mute / -47.75dB to +12.00dB Source on Input Channels 1 &2 = Analog...
- Page 14 DSP Navigation Continued Save Preset a) Press menu button twice b) Turn Select Knob to desired location (41 – 100) c) Press Select Knob to enter Preset Name d) Turn Select Knob to select first character e) Press Select Knob to move the cursor to the next position f) Turn Select Knob to select the next character g) Once name has been entered, Press menu button to enter Save Preset h) Turn Select Knob to select YES...
-
Page 15: System Specifications
Specifications SYSTEM SPECIFICATIONS: Output power (at 1kHz, 1% THD+N, tested with AES17 filter) Channel 1: 1,600Wrms @ 8Ω 2,000Wrms @ 4Ω 2,500Wrms @ 4Ω on typical loudspeaker load enabled by the XPC (Excessive Power Control) circuitry Channels 2 and 3 each: 400Wrms @ 8Ω... - Page 16 Specifications Continued POWER AMP SPECIFICATIONS: Frequency response (Ch2/Ch3 at 4/8 Ω load): 20 Hz - 20 kHz ± 0.1 dB / [20 Hz - 20 kHz ± 0.2 dB] THD+N (AES17 filter) 1kHz, 1W, RL = 8Ω 0,003% Signal-to-Noise Ratio (A-weighted, 20 Hz - 20 kHz, 8 Ω load) > 120 dB Dynamic Range, Un-weighted/ Weighted 118dB / 120dB Intermodulation distortion (CCIF), Ch2/Ch3, 18kHz/19kHz Po = 10W, 8Ω...
- Page 17 Ambisonic Systems LLC 1990 N. McCulloch Blvd. Ste. D 222 Lake Havasu City, AZ 86403 Voice: 928.453.5111 Fax: 928.453.5550 info@ambisonicsystems.com www.ambisonicsystems.com...
- Page 18 Ambisonic Systems LLC 1990 N. McCulloch Blvd. Ste. D 222 Lake Havasu City, AZ 86403 Voice: 928.453.5111 Fax: 928.453.5550 info@ambisonicsystems.com www.ambisonicsystems.com...
