AmbiSonic Systems L-240 Owner's Manual

Outdoor wifi amplifier
Hide thumbs Also See for L-240:

Advertisement

Quick Links

Download this manual
(patent pending)
Owner's Manual
Ambisonic Systems LLC 1990 N. McCulloch Blvd. Ste. D 222 Lake Havasu City, AZ 86403 Voice: 928.733.6002 Fax: 928.453.5550
info@ambisonicsystems.com
www.ambisonicsystems.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-240 and is the answer not in the manual?

Questions and answers

Related Manuals for AmbiSonic Systems L-240

Summary of Contents for AmbiSonic Systems L-240

  • Page 1 (patent pending) Owner’s Manual Ambisonic Systems LLC 1990 N. McCulloch Blvd. Ste. D 222 Lake Havasu City, AZ 86403 Voice: 928.733.6002 Fax: 928.453.5550 info@ambisonicsystems.com www.ambisonicsystems.com...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1) Read and follow all instructions. 2) Heed all warnings. 3) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 4) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

  • Page 3: Installation Instructions

    5) Connect the speaker outputs from the “L-240 Stereo Ampli er”, to the speakers. 6) Plug “L-240 Stereo Ampli er”, into 120VAC electrical outlet and turn the power switch to the ON position. Close and lock the door to ensure your safety and to create a weather tight seal.
  • Page 4 Index Page 3: Introduction Pages 4-8: Quick Start (No Network Connection) Pages 9-10: Network Settings Pages 10-18: Connecting the Ambisonic L-240 to the Network Pages 19-20: Configuring Network Settings...

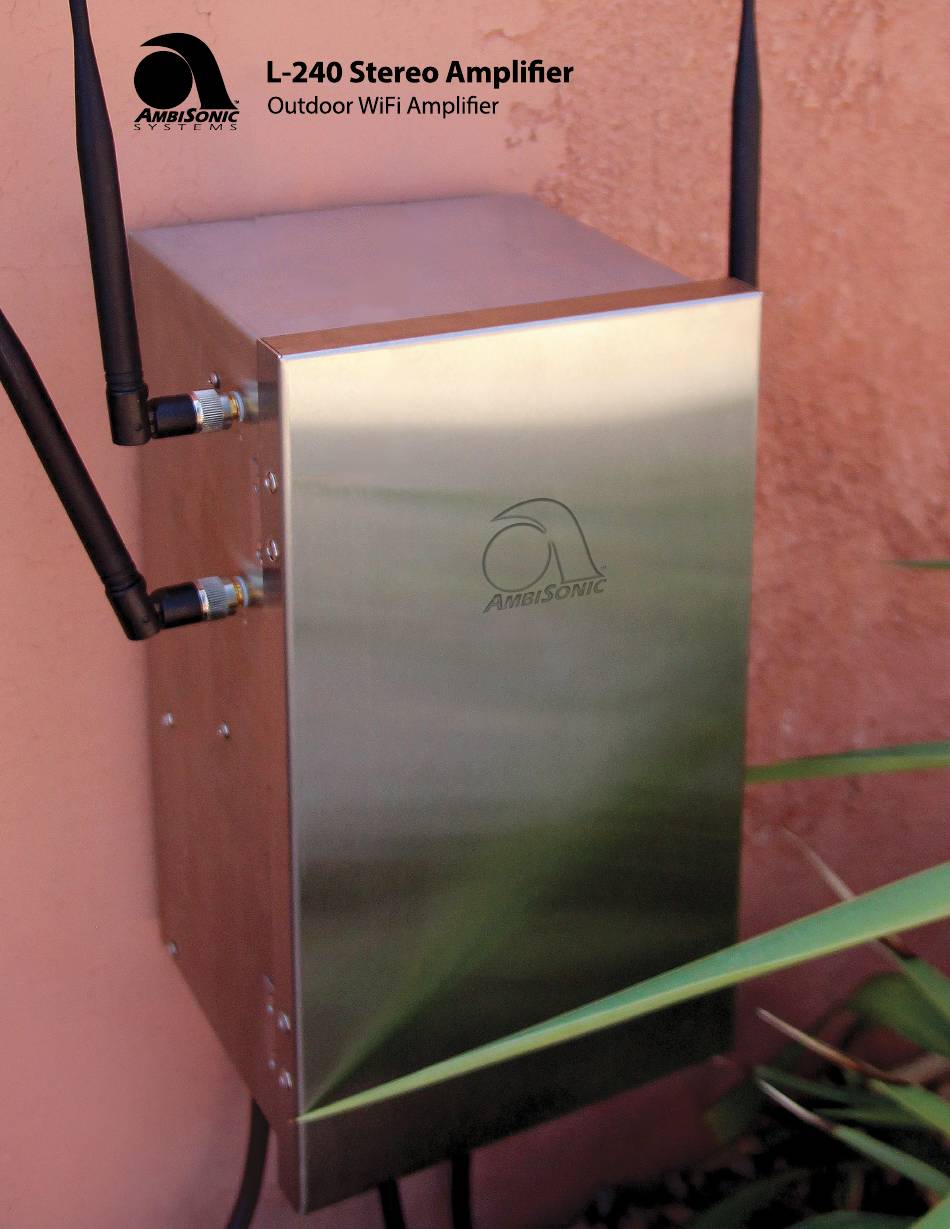

  • Page 5 Not only does it deliver sparkling, audiophile performance, it’s also weatherized to withstand harshest outdoor conditions (IP-65 outdoor rated). The L-240 WiFi Receiver can be programmed either as a WAP (Wireless Access Point) or as a Wireless Extender, allowing it to transmit an internet connection.*...
  • Page 6 Quick Start (No Network Connection) In this section we’ll learn how to utilize the L-240 amplifier in situations where you don’t have an active network connection, yet still wish to listen to your favorite music. Method 1: Bluetooth If you are in an area with no internet connection and no cellular, you can still connect to the amplifier through Bluetooth, and transmit your locally stored music to the L-240.
  • Page 7 Apple AirPlay . This option requires that you have locally stored music on your Apple device. Once connected to the L-240’s Wi-Fi network, switch your Apple device to AirPlay audio output. Now, your locally stored music will begin to play through the amplifier’s speakers.
  • Page 8 If you have an Android device, and no network access, you can still transmit locally stored music files on your phone, via Wi-Fi to the L-240. Remember, a Wi-Fi connection to the L-240 provides better audio quality than Bluetooth. Samsung SmartThings...
  • Page 9 Once Samsung SmartThings has found the device, simply select it and the L-240 will begin functioning as an audio output. If your Android device fails to automatically switch to the amplifier, pull down from the top of your screen and you should now see a section for Samsung SmartThings in your “Notifications”...
  • Page 10 ” is required in order to transmit wirelessly (Wi-Fi) to the L-240. Once the upgrade has been purchased, you’ll be able to select the L-240 as an audio device. If you have an Android device, and your L-240 is located beyond the range of any Wi-Fi networks, it’s best to load your music into...

  • Page 11: Network Settings

    Network Settings In this next section will cover the two different ways to connect the AmbiSonic L-240 to the internet, permitting the L-240 to broadcast a wireless internet signal. Method 1: Wired (Ethernet) To ensure the absolute best connection to the existing networks,...
  • Page 12 Method 2: Wireless (Wi-Fi) In some cases, a wired Ethernet connection to the L-240 is not feasible or aesthetically desirable. If hard-wired Ethernet is not a viable option, the L-240 amplifier can be attached to existing networks via Wi-Fi, provided the L-240’s location is within wireless range of the network.
  • Page 13 Connecting the Ambisonic L-240 to the Network LAN Connection (Best/Recommended) If possible, it’s best to make a direct connection to your network via a Cat5e or Cat6 cable. This provides the most stable and reliable network connection to the amplifier.
  • Page 14 2. Once the connection has been made, we recommended you turn the L-240 on and off once to allow it to properly configure its new internet settings. 3. It may also necessary to turn your router on and off once in order to allow it to properly configure the new settings.
  • Page 15 Apple Devices In order to stream music using an Apple iOS device, you’ll need to access the “Command Center” (first ensure you have latest iOS update). You can access the Command Center through one of the following steps: 1. iPhone X: Pulling down from the upper right hand side on the screen,...
  • Page 16 – in the upper right. This will reveal the available devices you can access via Apple Air Play . Select “Ambisonic L-240”. Once your AmbiSonic L-240 Indoor/Outdoor Wireless Amplifier has been properly connected to the network, you’ll be able to stream music through your favorite streaming service, or music...
  • Page 17 If your Android device supports Samsung SmartThings , simply pull down from the top of your screen to display the “Notification Center”. If the AmbiSonic L-240 is not already activated, select “Audio Output”, and then select “AmbiSonic L-240” from the drop- down menu.
  • Page 18 Ensure that Wi-Fi has been enabled on your Android device. Provided the AmbiSonic L-240 has been connected to the network, you’ll now be able to select the L-240 and wirelessly stream your locally stored music content. Once you’ve installed BubbleUPnp , open the application and select the “More”...
  • Page 19 Ensure that Wi-Fi has been enabled on your Android device. Provided the AmbiSonic L-240 has been connected to the network, you’ll now be able to select the L-240 and wirelessly stream your locally stored music content.
  • Page 20 Wireless LAN Connection (Normal) If running an Ethernet cable to the L-240 is not possible or convenient, you can still connect wirelessly to an existing network. Please follow the following steps to connect your device to your Wi-Fi network.
  • Page 21 1. Open “Settings” on your mobile device and press on “Wi-Fi”. 2. In the list of networks press on “L-240” the password to join the network is its serial number 3. Once connected, press on the network name. It will bring you to the second screen which will display the amplifiers IP address.
  • Page 22 6. If you don’t see this confirmation, you should reboot both the L-240 and your router, in succession. 7. Reboot the L-240 by turning the amplifier off, then on. 8. Reboot your router, by turning the router off, then on.
  • Page 23 Apple Devices In order to stream music using an Apple iOS device, you’ll need to access the “Command Center” (first ensure you have latest iOS update). You can access the Command Center through one of the following steps: 1. iPhone X: Pull down from the upper right hand side on the screen.
  • Page 24 – in the upper right. This will reveal the available devices you can access via Apple Air Play . Select “Ambisonic L-240”. Once your AmbiSonic L-240 Indoor/Outdoor Wireless Amplifier has been properly connected to the network, you’ll be able to stream music through your favorite streaming service, or music...
  • Page 25 If your Android device supports Samsung SmartThings , simply pull down from the top of your screen to display the “Notification Center”. If the AmbiSonic L-240 is not already activated, select “Audio Output”, and then select “AmbiSonic L-240” from the drop- down menu.
  • Page 26 Ensure that Wi-Fi has been enabled on your Android device. Provided the AmbiSonic L-240 has been connected to the network, you’ll now be able to select the L-240 and wirelessly stream your locally stored music content. Once you’ve installed BubbleUPnp , open the application and select the “More”...
  • Page 27 Ensure that Wi-Fi has been enabled on your Android device. Provided the AmbiSonic L-240 has been connected to the network, you’ll now be able to select the L-240 and wirelessly stream your locally stored music content.

  • Page 28: Configuring Network Settings

    Configuring Network Settings The Ambisonic L-240 Wireless Amplifier can be configured as either a WAP (Wireless Access Point) or as a Wireless Extender. Configuring the amplifier to work as either can be achieved through either wireless or Ethernet connections. Ethernet connection is best choice, for signal strength and reliability.
  • Page 29 WAP (Wireless Access Point) When the Ambisonic L-240 Wireless Amplifier is connected to the network with either an Ethernet or wireless connection, it will automatically begin acting as a WAP (Wireless Access Point). The L-240 is pre-configured with a default name and password.
  • Page 30 selecting “OK”, wait 2 minutes and then manually cycle your L- 240 off and on. Please also take this time to power cycle your router to ensure a solid connection is made after both systems reboot. System changes should take effect after the reboot of the amplifier and router.
  • Page 31 Extender The Ambisonic L-240 Wireless Amplifier can also be configured as a Wireless Extender. When configured as an Extender, you’ll be able to transition throughout your location while remaining connected to the same network. Once connected to the existing network at your location, access the configuration page of the amplifier at IP address: 192.168.100.1.
  • Page 32 Then, change both the name and password to match your current network. Doing so enables your L-240 amplifier to broadcast the same network name and password as your current router. This setup works best with a direct Ethernet connection. A hard- wired Ethernet connection allows the L-240 to broadcast at 100% signal strength.
