- Page 1 Niro USER MANUAL...
-
Page 2: Table Of Contents
Garage Door Opener Requirements Download the Momentum App Create an Account Setup Niro Installation Setting up Rules Triggers Adding a New Rule Mobile Alerts Storage Options Momentum Capture Cloud Storage Micro-SD Card Storage Your Dashboard... - Page 3 About Momentum © 2016 Momentum Momentum is a registered trademark in the United States. Apple and iPhone are registered trademarks of Apple Inc. Google Play and Android are trademarks of Google Inc. All other brands and product names are or may be trademarks of their respective owners.
-
Page 4: Introduction

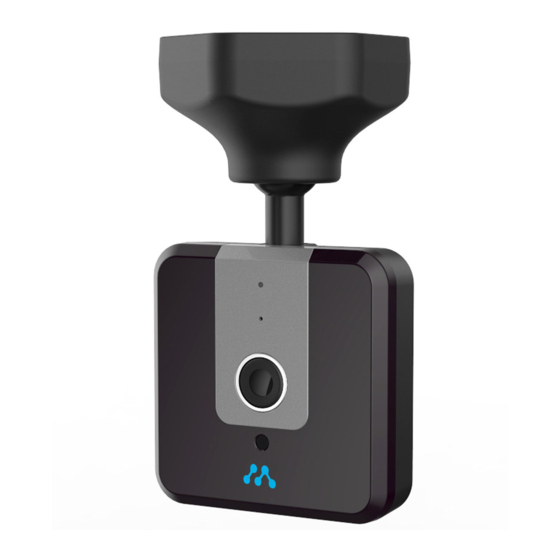

Introduction The Momentum Niro™ is a remote garage door controller and wireless monitoring device that can be accessed from anywhere where you have an internet connection. It’s great for surveillance in your garage at home and to make sure you always stay in control no matter where you are. -
Page 5: Product Features
Product Features Magnetic base Indicator light Microphone Micro SD card slot Camera lens Infrared light Front Side Pivot connector Built-in speakers Wire connector ports DC power port Reset button Release buttons Rear... -
Page 6: Niro Led Indicators
Niro LED Indicators Niro displays an LED indicator light that lets you know what it is doing. Solid Light: Camera is booting up. Slow Blinking Light: Disconnected from Wi-Fi. Double Blinking Blue Light: Ready to connect to Wi-Fi. Blinking Blue Light: Niro is connected to Wi-Fi. -
Page 7: What's Included
What’s Included Wires Niro Double-sided Tape Metal Plate Power Cable and Adapter... -
Page 8: Wi-Fi Requirements
Wi-Fi Requirements Niro requires a 2.4GHz or 5GHz router (802.11bg/n) for Wi-Fi connectivity. This is a standard home Wi-Fi router. You will need your Wi-Fi name and password when pairing your mobile device and GDC. Note: If you are using a 2.4GHz + 5 GHz dual band router, create separate SSID names for each band on your Wi-Fi router settings page. -
Page 9: Download The Momentum App
Make sure the app logo you download matches the one shown below. Create an Account If you don’t already have a Momentum account, you will need to create one. To create a new account, follow the in-app instructions. -
Page 10: Setup
Setup To begin using your Momentum Niro™ you will first need to pair it to your Momentum account and then connect it to your Wi-Fi network. Note: Pairing process has been changed from earlier models. If you have trouble during this process, please contact the Momentum customer service. - Page 11 Momentum app again. Note: If you’re using an Android device and cannot proceed to the next step, you may need to set the Niro Wi-Fi network to “automatically connect” or confirm the connection again from the android notification pop-up the comes up after attempting to connect to the Niro Wi-Fi network.
-
Page 12: Niro Installation
Niro Installation Before installing Niro to your garage door opener, make sure you prepare the following: A screwdriver (if needed) A stepladder An open outlet near your setup location Reliable Wi-Fi network A compatible mobile device ... - Page 13 Step 1: Mount Niro Niro should be set up properly so that it’s hanging from the bottom of your garage door opener unit. IMPORTANT: Make sure to first clean the area you’ll be mounting the camera, and be sure to dry off the area before applying the adhesive sticker.
- Page 14 Step 2: Connect Wires to the Garage Opener Unplug your garage opener. This is to prevent your garage door from involuntarily opening/closing during the next few steps. Locate your garage wall remote console. You should see some wires that come out of it that lead all the way to terminals on the back of your garage opener.
- Page 15 Most garage opener connection ports will look like the images below. From Wall Remote Console For this type of terminal, use a flat head screwdriver or a similar tool to press the tab to release the wires from the terminals as shown above. From Wall Remote Console ...
- Page 16 Twisting the wires together for each terminal will help for a better connection, however make sure the wall console wires go back into their original terminals. The provided wires for Niro are neutral, so it doesn’t matter which wire goes into which terminal.
- Page 17 Note: Niro is capable of being connected to two garage door openers. If you have a second garage door opener you want to connect to Niro, follow the same process as the first and connect the wires to the 3...
- Page 18 Step 4: Test the Controls Plug back in your garage opener and open the Momentum App. Select the blue Garage tile to access the garage door control screen. In this screen, you will get a live view of the state of your garage.
- Page 19 1-5 that were used in pairing your initial Momentum device. Pairing additional Non-Momentum Devices You can use your Momentum app is also compatible to control a Nest™ Learning Thermostat. To pair your Nest thermostat, select Pair in the Devices section of the app menu and select the non-Momentum device you wish to pair.
-
Page 20: Setting Up Rules
Storage subscription or a micro-SD card to record videos and photos. Triggers You can set a trigger for Niro to have it start automatically recording after detecting motion. Adding a New Rule Add the days of the week and times of the days you want the rule to be set in place. -
Page 21: Mobile Alerts
If you’d like to stop receiving alerts, you must delete the Rule or you can turn it off from your mobile device’s notification settings for the Momentum App. You may also view all of your previous alerts by tapping the Activity tile on your Dashboard. -
Page 22: Storage Options
Storage Options Niro can save your recorded videos or pictures through the Momentum Capture Cloud Storage subscription plan or with your own micro-SD card inserted into the device. The micro-SD card slot can be found on the side of the camera device. -
Page 23: Micro-Sd Card Storage
You also have the option to use your own micro-SD card (up to 128GB) instead for back-up storage. Insert the micro-SD card into Niro’s micro-SD slot on the side of the camera. The camera will automatically record events and camera photos you take directly into the micro-SD card as back-up storage. -
Page 24: Your Dashboard
Your Dashboard Your dashboard is your app’s home screen where you can view and access your paired devices. You can rearrange the Tiles on your dashboard by tapping the Pencil icon in the top right corner of the app. You can also make some device tiles larger or smaller when editing your dashboard. -
Page 25: Garage Controls
To open or close your garage door, tap the Garage tile on your dashboard to access the controller. Here you will also see a live video from your Niro camera so you can confirm whether your garage door is open or closed prior to pressing the controller button. -
Page 26: Camera Functions
Camera Functions Niro has several functions you can control through the Momentum app. To enter the camera controls, select the camera tile from the dashboard. -
Page 27: Watching Live Video
Watching Live Video To view live video stream, first select the camera you would like to view. Rotate your mobile device to view in either portrait mode or landscape mode. In portrait mode you can use your fingers to pan around the video feed. -
Page 28: Taking Photos
Taking Photos Tap the Camera icon to save a screenshot while watching live video. To save images taken from your Niro you must either have a: 1. Micro-SD card inserted into the camera, or 2. Cloud storage subscription for the specific device through the Momentum app. -
Page 29: Audio Functions
Niro’s live video stream option. Note that the audio will only go through one source (camera or app) at a time. To speak through the app to Niro’s speakers, tap on the Microphone icon. You must tap on the icon again to de- select it to begin hearing Niro’s side again. -
Page 30: Viewing Recorded Photos And Videos
Viewing Recorded Photos and Videos On the Home screen, tap the Activity tile to view recorded videos, captured photos, or alerts for a specific day. You can also access the activity list from the live camera view. When you select a video in your activity list, it will begin playing back automatically. -
Page 31: Saving And Deleting Recordings
Saving and Deleting Recordings If you have purchased a cloud subscription and set up a rule for recordings, footage of those recordings will be automatically saved onto the cloud for the predetermined time, depending on which plan you have purchased. If you have inserted your own micro-SD card and set up a rule for recordings, footage of those recordings will be saved on the micro-SD card until the storage becomes full... -
Page 32: Device Settings
Device Settings Under the Menu tab, you will find My Devices. Here you can change your device’s name, check on the device’s Cloud subscription status, update the firmware, and adjust the camera’s image-quality, motion detection and sound detection levels. Use the slide bar to adjust the image-quality, motion detector and sound detector to your liking. -
Page 33: Restoring Forgotten Passwords
Restoring Forgotten Passwords If you've forgotten your login password, tap on the Forgot Password button at the sign in page. You will receive an email with instructions to guide you through the rest of the way. -
Page 34: Resetting The Camera
If it still does not fix the issue, trying resetting the camera. Reset the Camera 1. To reset your Momentum device, hold the Reset button on the back of the camera for about 10 seconds. During the reset sequence, the LED indicator light on the front of the camera will first display a solid red, then double blinking blue. -
Page 35: Troubleshooting
Support. For further assistance, go to https://www.support.momentumcam.com. About Momentum Momentum provides an easy-to-setup home security camera that connects to your smart phone or tablet giving you real-time video streaming and two-way voice communication – anywhere, anytime. Momentum... - Page 36 For more information, please visit www.momentumcam.com or contact us at help@momentumcam.com. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
Need help?
Do you have a question about the Niro and is the answer not in the manual?
Questions and answers
unable to connect to niro MOGO-001
To connect the Momentum Niro MOGO-001, follow these steps:
1. Download the App
- Install the Momentum App from the Apple App Store or Google Play.
- Ensure your mobile device is connected to the Wi-Fi network you want to use.
2. Create an Account
- Sign up for a new account and verify it via the email confirmation link.
- Return to the app and sign in.
3. Power the Niro Device
- Connect the Micro-USB cable to the back of the camera and the power adapter.
- Plug the power adapter into an outlet.
4. Pair the Niro Device
- Ensure your mobile device is connected to the Wi-Fi network.
- Open the Momentum app and select "Pair Device."
- Choose "Garage Door Controller" from the device list.
- Go to your mobile device’s Wi-Fi settings and connect to the ‘MOGA-001’ network.
5. Connect to Wi-Fi Network
- Return to the Momentum App.
- Enter your Wi-Fi network password if prompted.
6. Mount the Niro Device
- It is recommended to mount the Niro upside down on the bottom of your garage opener.
- Use the provided sticker and metal plate for attachment.
7. Connect Wires to the Garage Door Opener (GDO)
- Unplug your garage opener for safety.
- Locate the wall remote console and find the wires leading to the terminals on the garage opener.
- If unsure, refer to your garage opener’s manual for the correct terminal connections.
- Use a screwdriver or press tabs to release and connect the provided wires from the Niro box to the same terminals as the wall remote console.
After completing these steps, your Momentum Niro should be successfully connected.
