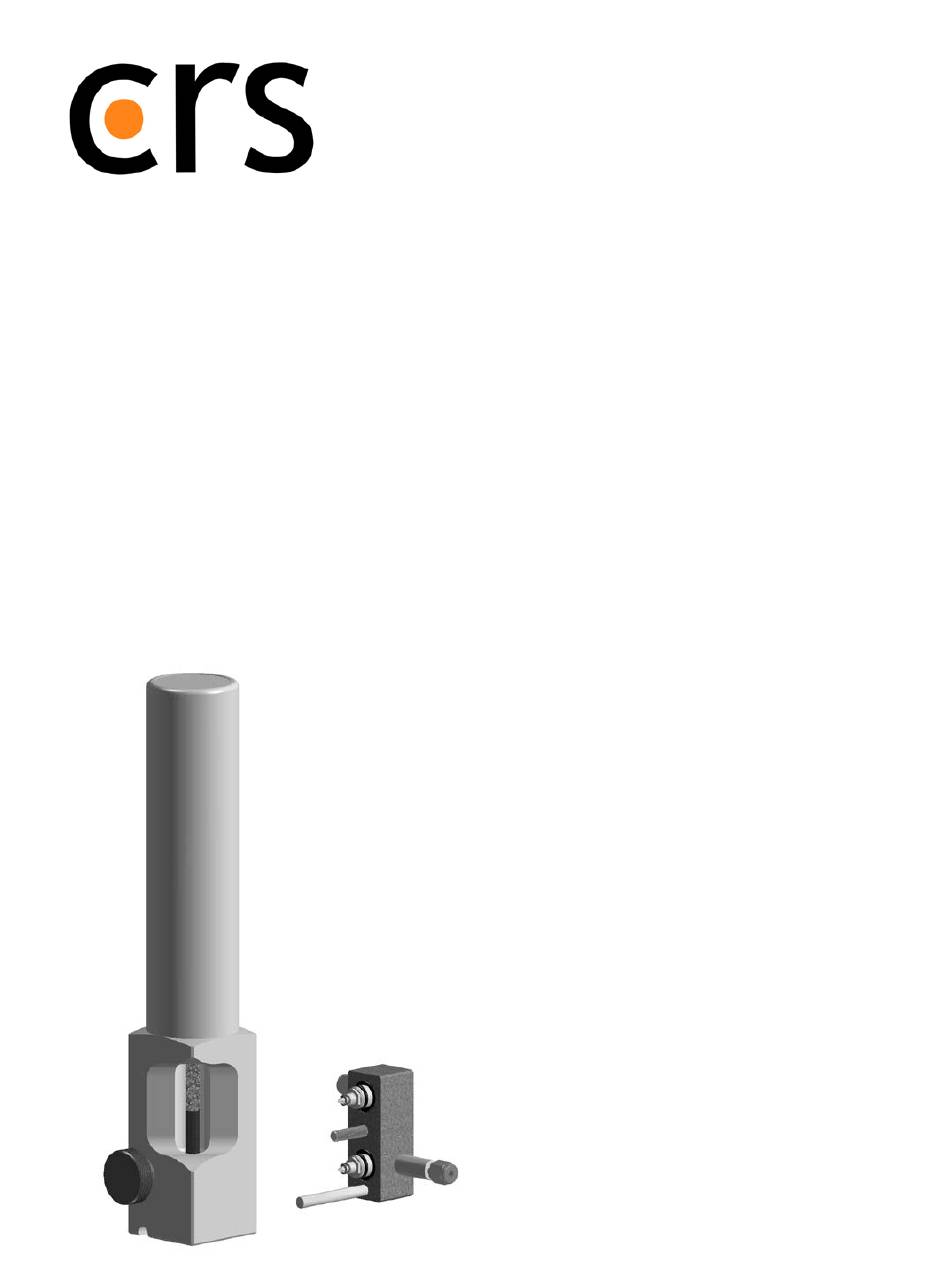

- Page 1 CRS Advanced Filter System 202900 202910 Operation Guide...
- Page 2 Version 2 WARNINGS WARNING notices must be read carefully and understood. Improper use of this product can cause harm or death to personnel and damage to property! Recycling For recycling contact your local CRS Sales Office CRS Advanced Filter System...
- Page 3 Operation Manual This operation manual applies to the following products: • CRS Advanced Filter System, part number 202900 • CRS Advanced Filter System, replacement cartridge part number 202910 CRS Advanced Filter System...
-
Page 4: Filter Setup
Filter System before beginning setup. Use the same degree of care as you would with any precision instrument. Remove the AFS Cartridge, Manifold and Mounting Brackets from the package. Inspect the filter system. If there is any visible damage contact your supplier immediately. CRS Advanced Filter System... - Page 5 Do not use to remove more than 50ppm of oxygen! Rapid heating of the oxygen adsorbent will occur – and very high temperatures can result. Limits: Temperature 15ºC to 35ºC Pressure 0.75 to 14 bar Gas Supply < 50ppm O O and Hydrocarbons Flow Rate < 1L/min CRS Advanced Filter System...
- Page 6 Do not overtighten or the fittings may be damaged. Remove the protective plastic cups from the manifold check valves. Be careful, the ends of the check valves are sharp! Inlet Outlet CRS Advanced Filter System...
- Page 7 Optional Bench Mount I / II without Screws Make sure to clean the area on bench thoroughly, before placing the bracket in place. Note: Tape mounting is not intended for wall use CRS Advanced Filter System...
-
Page 8: Mounting The Filter Cartridge
The filter cartridge is shipped full of helium, but the gas lines should still be purged with a gas flow for at least several hours after the initial installation. Moisture levels downstream of the instrument may continue to improve for several days. CRS Advanced Filter System... -
Page 9: Operation And Maintenance
Unscrew the clamping screw. This pushes the cartridge off the manifold spools. Only after the screw is completely disengaged is it possible to remove the filter from the manifold. Mount the replacement cartridge as instructed in the section “Setup”. CRS Advanced Filter System... -
Page 10: Troubleshooting
Verify that the source meets specifications as listed under “Limits” on page 5. If the gas source is supplying other filters as well, check the condition of these filters. Otherwise check specification and procedures for verifying gas quality. CRS Advanced Filter System...
