Summary of Contents for CRS 202902
-

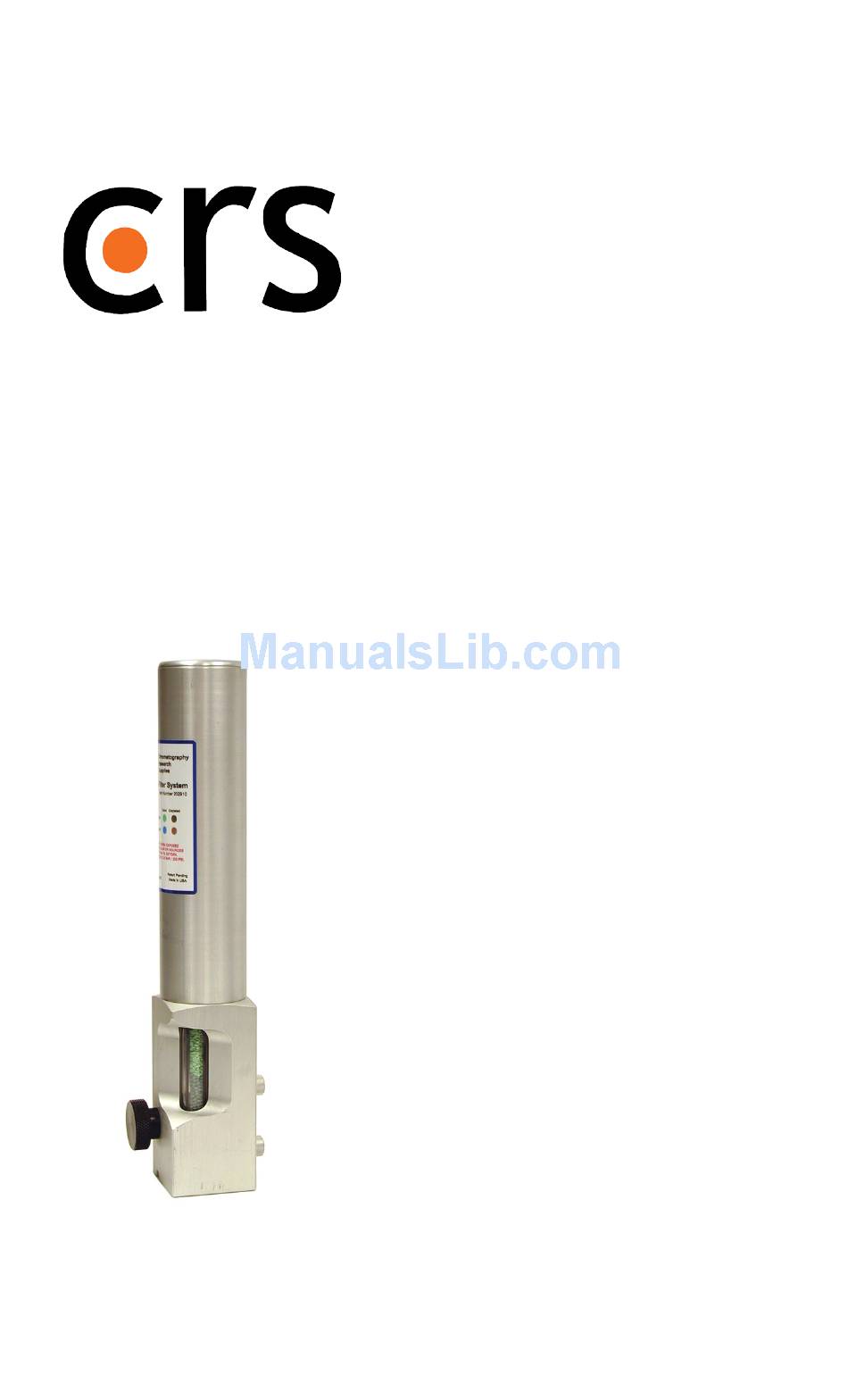

Page 1: Operation Guide
Setup and Operation CRS AFS Purifier I 202900 202902 202910 Operation Guide... -
Page 2: Safety Notice
Chromatography Research cause harm or death to Supplies, Inc. personnel and damage 2601 Technology Drive to property! Louisville, KY 40299 tel. (+1) 502-491-6300 www.chromres.com Recycling For recycling contact your local CRS Sales Office or Distributor. CRS AFS Purifier I... - Page 3 2 L/minute or less. Limits: Temperature 15ºC to 35ºC Pressure 0.75 to 14 bar Gas Supply < 50 ppm O O and Hydrocarbons Flow Rate < 2 L/min CRS AFS Purifier I...
-
Page 4: Operation Manual
Operation Manual This operation manual applies to the following products: • CRS AFS Purifier I, O O, 1/8 fittings, part number 202900 • CRS AFS Purifier I, O O, 1/4” fittings, part number 202902 • CRS AFS Purifier I, O... -
Page 5: Filter Setup
Remove the AFS Cartridge, Manifold and Mounting Brackets from the package. Inspect the filter system. If there is any visible damage, contact your supplier immediately. CRS AFS Purifier I... - Page 6 The compression fittings on the block fit 1/8” stainless steel tubing (202900) or 1/4” stainless steel tubing (202902). If you need to connect the filter to lines of another diameter, adapters will need to be installed first. 2. Select the bracket, bench-mount (L-shaped) or wall- mount (flat), which you intend to use.
- Page 7 Do not overtighten or the fittings may be damaged. 8. Remove the protective plastic cups from the manifold check valves. Be careful, the ends of the check valves are sharp! Inlet Outlet CRS AFS Purifier I...
- Page 8 Bench Mount II 25mm Gap of at least 25mm is required behind the bracket Bench Mount I Bench Mount II with no screws with no screws 25mm Gap of at least 25mm is required behind the bracket CRS AFS Purifier I...
- Page 9 Optional Bench Mount I / II without Screws Make sure to clean the area on bench thoroughly, before placing the bracket in place. Note: Tape mounting is not intended for wall use. CRS AFS Purifier I...
-
Page 10: Mounting The Filter Cartridge
5. The filter cartridge is shipped full of helium, but the gas lines should still be purged with a gas flow for at least several hours after the initial installation. Moisture levels downstream of the instrument may continue to improve for several days. CRS AFS Purifier I... - Page 11 Clamping Screw Support CRS AFS Purifier I...
-
Page 12: Operation And Maintenance
Unscrew the clamping screw. This pushes the cartridge off the manifold spools. Only after the screw is completely disengaged is it possible to remove the filter from the manifold. Mount the replacement cartridge as instructed in the section “Setup”. CRS AFS Purifier I... -
Page 13: Troubleshooting
If the AFS Purifier I is still in the warranty period, please contact your dealer for support. If the warranty period has expired, please visit www.chromres.com for information about how to purchase a replacement or regenerated cartridge. CRS AFS Purifier I... - Page 14 CRS AFS Purifier I...
- Page 15 CRS AFS Purifier I...
- Page 16 Chromatography Research Supplies Inc. Printed in USA. 995101v3 CRS AFS Purifier I...
