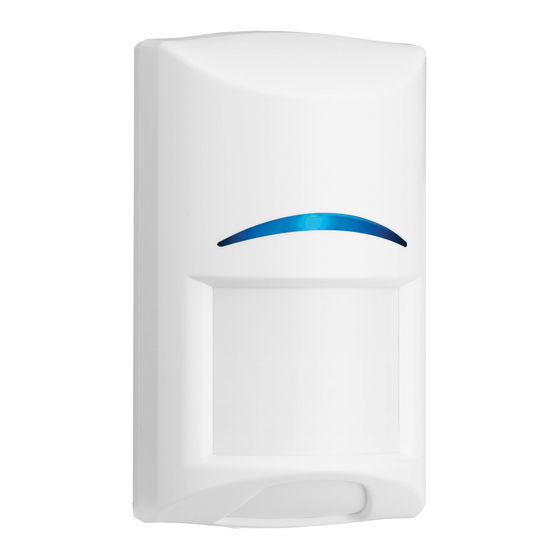

Bosch ISC-BDL2-WP12 Quick Start Manual

Blue Line Pet Friendly TriTech
Motion Detector
ISC-BDL2-WP12, ISC-BDL2-WP6
This product is intended for use in
the following countries within the
European Union and in other
countries outside of the
European Union:
ISC-BDL2-WP12G (10.525 GHz):
Austria, Belgium, Denmark, Finland, Greece, Italy,
Luxembourg, Netherlands, Norway, Portugal,
Spain, Sweden
ISC-BDL2-WP12H (10.588 GHz):
France, United Kingdom
US Patent No.
5,670,943
7,009,106
5,450,062
Indicate Reason for Warranty Return
Ordered Wrong Product
False Alarm
Catch Performance
Does Not Power Up
LED Does Not Turn Off
LED Does Not Turn On
Alarm Relay
Tamper Alarm
Mechanical (Please Describe):
Terminal Strip
Other (Please Describe):
© 2010 Bosch Security Systems, Inc.
2,2 m - 2,75 m
(7.5 ft - 9 ft)
Changes or modifi cations not expressly approved
by Bosch Security Systems, Inc. can void the user's
authority to operate the equipment.
UL
Use only a Listed limited-power source.
SELV
Connect all wiring to a safety extra-low voltage (SELV)
circuit only.
EN 50131-2-4 Grade 2
EN 50130-5 Environmental Class II
IP30 IK04 (EN 60529, EN 50102)
1
1
2
Solo il modello ISC-BDL2-WP12, ISC-BDL2-
WP6 è certifi cato IMQ – Sistemi di sicurezza al
primo livello di prestazione. La certifi cazione
IMQ – Sistemi di sicurezza del MODELLO ISC-
BDL2-WP12, ISC-BDL2-WP6 decade nel
caso di installazione del rilevatore con gli snodi
Ligue todas as cablagens apenas a um circuito de
segurança de tensão extra baixa (SELV).
Conecte el cableado únicamente a un circuito
de seguridad para voltajes muy bajos (SELV).
Alle Drähte sind ohne Ausnahme an Niederspannung
anzuschließen.
2
Sluit alle bedrading uitsluitend aan op een circuit
met een extra lage veiligheidsspanning.
Prenez soin de connecter tous les câbles à un circuit à
très basse tension de sécurité (TBTS).
Collegare tutti i cavi esclusivamente a un circuito SELV
(circuito di sicurezza a bassissima tensione).
-30°C to +55°C
(-20°F to +130°F )
UL Listed installations,
the temperature
range is 0°C to +49°C
(+32°F to +120°F)
0 - 95% Relative Humidity
(0 - 85% UL installations)
3
F.01U.140.810 | 02 | 2010.03 | 1
Pet Friendly
≤ 45 kg (100 lb)
Pour les installations
certifi ées NFA2P,
Température de
fonctionnement
-10°C à +55°C
