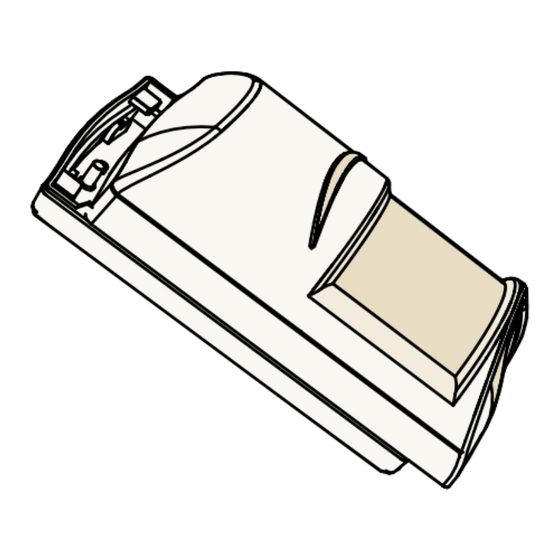

Bosch ISC-BDL2-WP6 Installation Manual

Blue Line Gen2
Pet Friendly TriTech
Motion Detector
ISC-BDL2-WP12, ISC-BDL2-WP6
en Installation Guide
Optional Brackets:
B328, B338, B335
1
1
2
© 2017 Bosch Security Systems, Inc.
2,2 m - 2,75 m
2,2 m - 2,75 m (7.5 ft - 9 ft)
(7.5 ft - 9 ft)
Recommended:
Recommended:
2,2m (7.5 ft)
2,2m (7.5 ft)
Changes or modifications not expressly approved by Bosch
Security Systems, Inc. can void the user's authority to
operate the equipment.
UL/C-UL
Perform Walk Test at least once a year.
Pet immunity not tested by UL/C-UL.
Use only a Listed limited-power source.
The Listed control unit or a Listed burglary power supply
must provide 4 hours (40 mAh) of standby power.
Install the unit in accordance with National Electrical Code
NFPA 70 and Part 1 of the Canadian Electrical code CSA
C22.1.
Adjust the microwave range control, if necessary, to achieve
maximum range.
SELV
Connect all wiring to a safety extra-low voltage (SELV)
circuit only.
IP30 IK04 (EN 60529, EN 62262)
För svensk installationsanvisning se www.boschsecurity.se.
2 3
Pet Friendly Pet Friendly
≤ 45 kg (100 lb)
† 45 kg (100 lb)
Ligue todas as cablagens apenas a um circuito de
segurança de tensão extra baixa (SELV).
Conecte el cableado únicamente a un circuito
de seguridad para voltajes muy bajos (SELV).
Alle Drähte sind ohne Ausnahme an Niederspannung
anzuschließen.
ISC-BDL2-WP12G, ISC-BDL2-WP6G (10.525 GHz)
ISC-BDL2-WP12H (10.588 GHz)
Sluit alle bedrading uitsluitend aan op een circuit met
een extra lage veiligheidsspanning.
Prenez soin de connecter tous les câbles à un circuit à
très basse tension de sécurité (TBTS).
Collegare tutti i cavi esclusivamente a un circuito SELV
(circuito di sicurezza a bassissima tensione).
-30°C to +55°C
(-20°F to +130°F )
UL/C-UL Listed
installations,
the temperature range
is 0°C to +49°C
(+32°F to +120°F)
0 - 95% Relative Humidity
(0 - 85% UL/C-UL installations)
4
