Wi-Fi; Wi-Fi Function; Wi-Fi Connecting - Trinabess Trinahome T Series Installation Manual

7.2 Wi-Fi

7.2.1 Wi-Fi Function

TB5200TD/TB5200TH/TB9800TH solar battery hybrid inverter has integrated Wi-Fi
module. User can be connected to the Internet after Wi-Fi connecting and setting. Log in
the Trinabess web portal or Trinabess APP on your smart phone, you can monitor your
system status timely and remotely.
Before setting the Wi-Fi, make sure:
1) The Wi-Fi indication light on the hybrid inverter panel is lit;
2) Wi-Fi signal is available on the installation site to be received by the antenna integrated
in the inverter.
PV1
PV1
ON
ON
OFF
PV2
PV2

7.2.2 Wi-Fi Connecting

7.2.2.1 Get Connected with the Inverter Wi-Fi
Open the wireless network in the smart phone,（if you do not have smart phone, you can
also use pad or computer）as shown in Figure 7.16 to search for signals. Find the
device's wireless SSID which is same as the serial number in the side of the equipment.
After discovering the device SSID, click it to connect.
BAT
BAT
DRED RS485 CAN Ethernet
OFF
SET AS-BOX WIFI

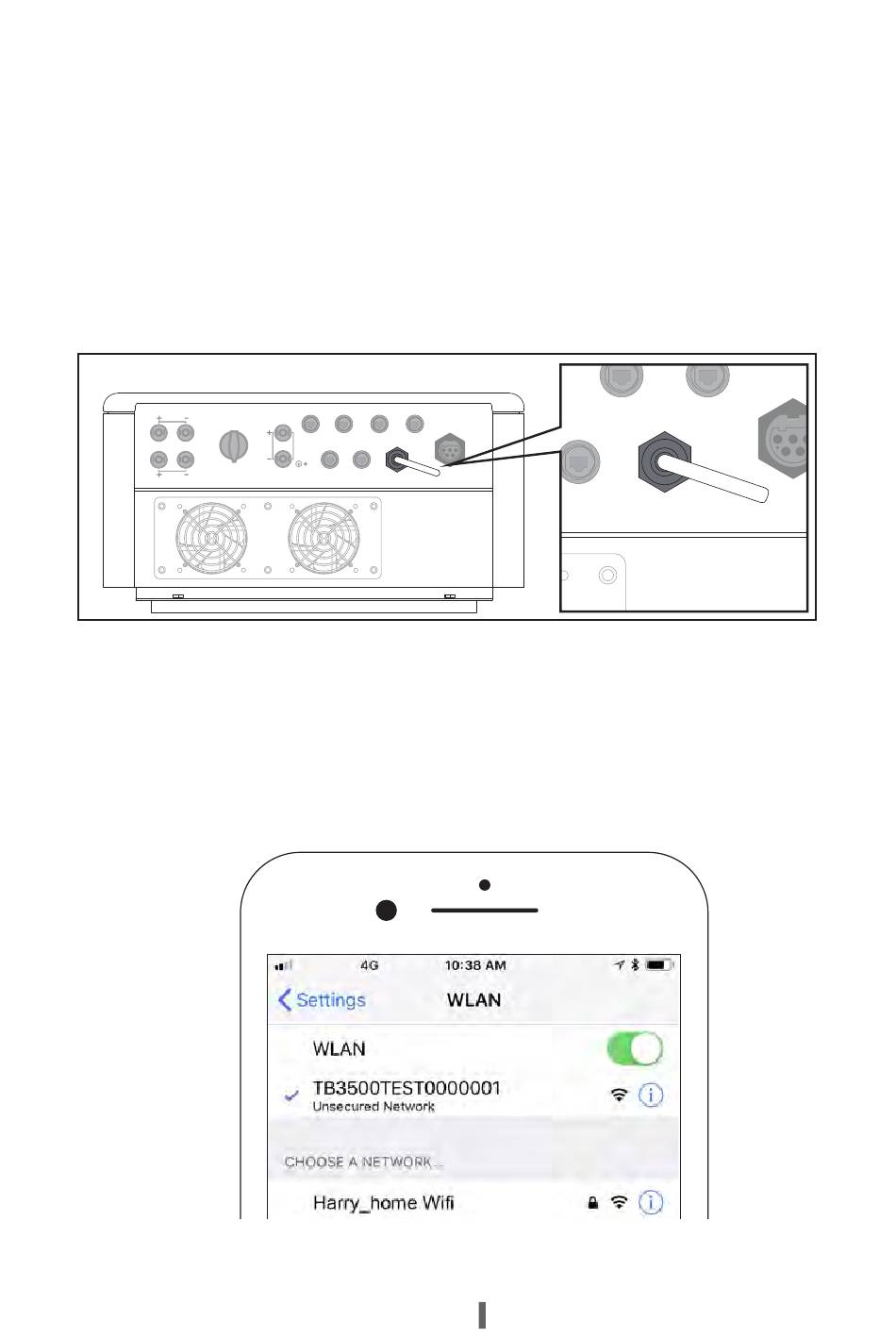

Figure 7.15 Wi-Fi antenna
Figure 7.16 Connecting to inverter Wi-Fi
