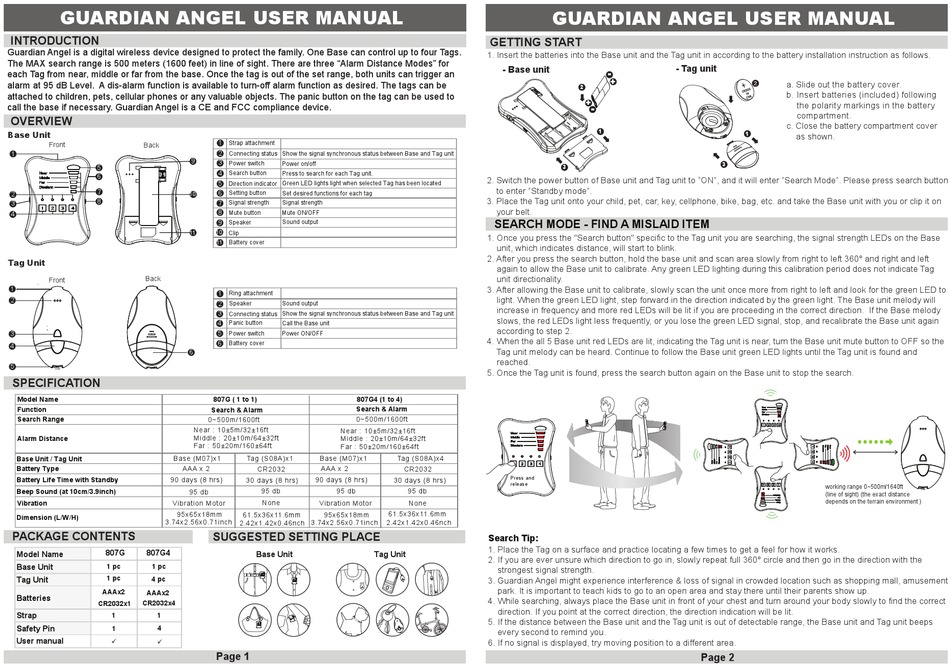

GUARDIAN ANGEL USER MANUAL
INTRODUCTION
Guardian Angel is a digital wireless device designed to protect the family. One Base can control up to four Tags.
The MAX search range is 500 meters (1600 feet) in line of sight. There are three "Alarm Distance Modes" for
each Tag from near, middle or far from the base. Once the tag is out of the set range, both units can trigger an
alarm at 95 dB Level. A dis-alarm function is available to turn-off alarm function as desired. The tags can be
attached to children, pets, cellular phones or any valuable objects. The panic button on the tag can be used to
call the base if necessary. Guardian Angel is a CE and FCC compliance device.
OVERVIEW
Base Unit
Front
Back
1
5
6
7
2
8
3
4
Tag Unit
Back
Front
1
2
3
4
5
SPECIFICATION
Model Name
Function
Search Range
Alarm Distance
Base Unit / Tag Unit Base (M07)x1
Battery Type AAA x 2
Battery Life Time with Standby 90 days (8 hrs)
Beep Sound (at 10cm/3.9inch)
Vibration
Vibration Motor
95x65x18mm
Dimension (L/W/H)
3.74x2.56x0.71inch

PACKAGE CONTENTS

807G4
807G
Model Name
Base Unit 1 pc 1 pc
1 pc 4 pc
Tag Unit
AAAx2
AAAx2
Batteries
CR2032x4
CR2032x1
Strap
1 1
Safety Pin 4
1
User manual
 
1
Strap attachment
2
Connecting status Show the signal synchronous status between Base and Tag unit
9
3
Power switch
Power on/off
4 Search button Press to search for each Tag unit.
5 Green LED lights light when selected Tag has been located
Direction indicator
6
Setting button
10 Set desired functions for each tag
7 Signal strength Signal strength
8
Mute button Mute ON/OFF
9 Sound output
Speaker
10
11 Clip
Battery cover
11
1 Ring attachment
2
Speaker Sound output
3
Connecting status Show the signal synchronous status between Base and Tag unit
4 Panic button Call the Base unit
5 Power switch Power ON/OFF
6 Battery cover
6
807G ( 1 to 1) 807G4 (1 to 4)
Search & Alarm
Search & Alarm
0~500m/1600ft
0~500m/1600ft
Near : 10±5m/32±16ft
Near : 10±5m/32±16ft
Middle : 20±10m/64±32ft
Middle : 20±10m/64±32ft
Far : 50±20m/160±64ft
Far : 50±20m/160±64ft
Tag (S08A)x1 Base (M07)x1
AAA x 2
CR2032
90 days (8 hrs)
30 days (8 hrs)
95 db 95 db 95 db
None
Vibration Motor
61.5x36x11.6mm 95x65x18mm
2.42x1.42x0.46nch 3.74x2.56x0.71inch
SUGGESTED SETTING PLACE
Base Unit
Page 1
GUARDIAN ANGEL USER MANUAL

GETTING START

1. Insert the batteries into the Base unit and the Tag unit in according to the battery installation instruction as follows.
- Base unit
2. Switch the power button of Base unit and Tag unit to "ON", and it will enter "Search Mode". Please press search button
to enter "Standby mode".
3. Place the Tag unit onto your child, pet, car, key, cellphone, bike, bag, etc. and take the Base unit with you or clip it on
your belt.
SEARCH MODE - FIND A MISLAID ITEM
1. Once you press the "Search button" specific to the Tag unit you are searching, the signal strength LEDs on the Base
unit, which indicates distance, will start to blink.
2. After you press the search button, hold the base unit and scan area slowly from right to left 360° and right and left
again to allow the Base unit to calibrate. Any green LED lighting during this calibration period does not indicate Tag
unit directionality.
3. After allowing the Base unit to calibrate, slowly scan the unit once more from right to left and look for the green LED to
light. When the green LED light, step forward in the direction indicated by the green light. The Base unit melody will
increase in frequency and more red LEDs will be lit if you are proceeding in the correct direction. If the Base melody
slows, the red LEDs light less frequently, or you lose the green LED signal, stop, and recalibrate the Base unit again
according to step 2.
4. When the all 5 Base unit red LEDs are lit, indicating the Tag unit is near, turn the Base unit mute button to OFF so the
Tag unit melody can be heard. Continue to follow the Base unit green LED lights until the Tag unit is found and
reached.
5. Once the Tag unit is found, press the search button again on the Base unit to stop the search.
Tag (S08A)x4
CR2032
Press and
30 days (8 hrs)
release
95 db
None
61.5x36x11.6mm
2.42x1.42x0.46nch
Search Tip:
1. Place the Tag on a surface and practice locating a few times to get a feel for how it works.
Tag Unit
2. If you are ever unsure which direction to go in, slowly repeat full 360° circle and then go in the direction with the
strongest signal strength.
3. Guardian Angel might experience interference & loss of signal in crowded location such as shopping mall, amusement
park. It is important to teach kids to go to an open area and stay there until their parents show up.
4. While searching, always place the Base unit in front of your chest and turn around your body slowly to find the correct
direction. If you point at the correct direction, the direction indication will be lit.
5. If the distance between the Base unit and the Tag unit is out of detectable range, the Base unit and Tag unit beeps
every second to remind you.
6. If no signal is displayed, try moving position to a different area.
- Tag unit
-
+
2
+
-
1
3
.
Page 2
a. Slide out the battery cover.
b. Insert batteries (included) following
the polarity markings in the battery
compartment.
c. Close the battery compartment cover
as shown.
working range 0~500m/1640ft
(line of sight) (the exact distance
depends on the terrain environment )
