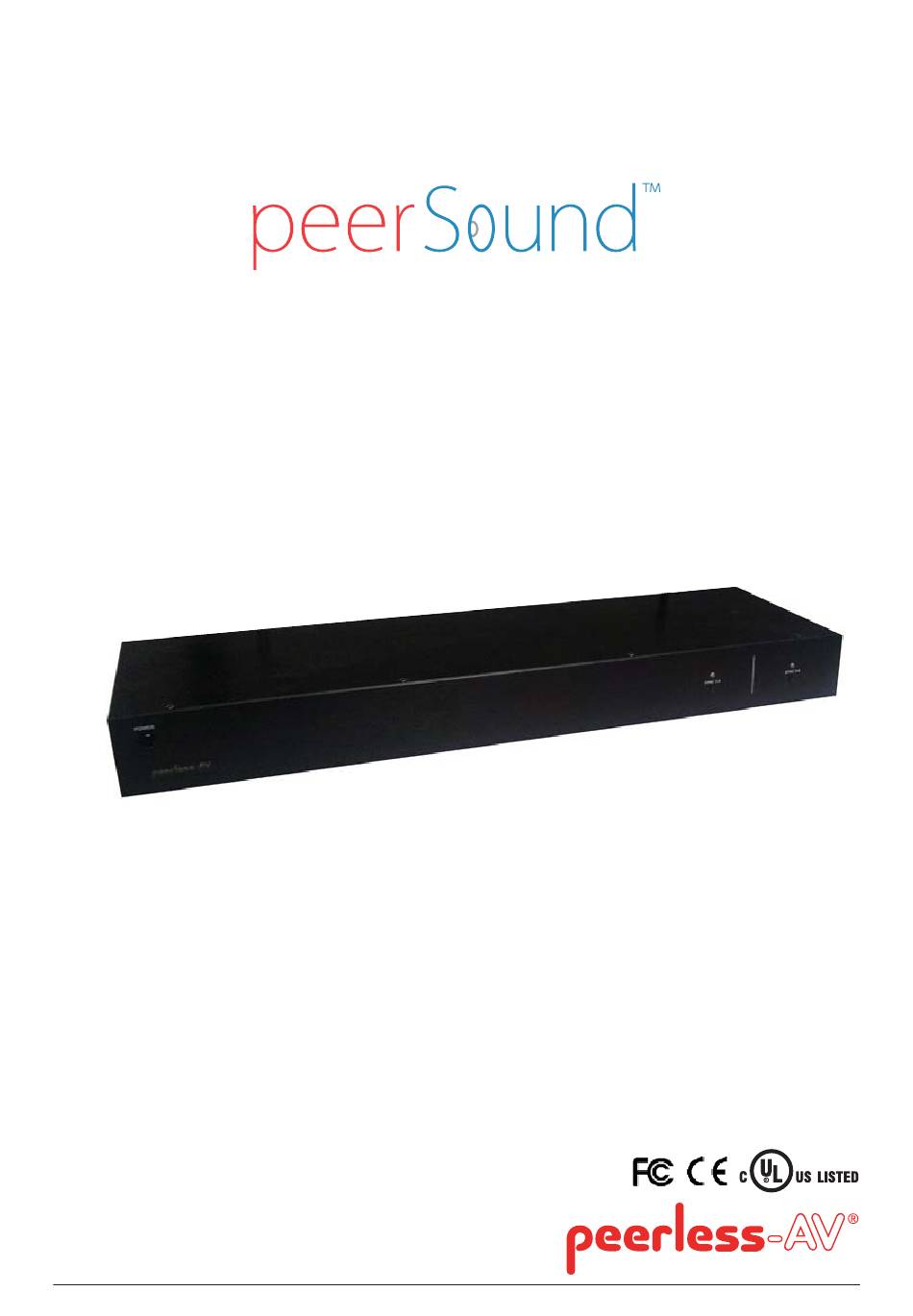

- Page 1 User Manual and Installation Guide Transmitter Models: ADS100-T8 ISSUED: 10-07-13 SHEET #: 180-9055-1...
-
Page 3: Table Of Contents
Contents Important Safety Instructions ......................4 Important Information ........................6 Unit Care Recommendations ......................6 Introduction............................7 What’s In The ADS100-T8 Box ...................... 7 Tools Needed For Installation ......................7 Overview............................8 ADS100-T8 Transmitter ......................... 8 Installation............................9 Limited Warranty ........................... 10 3 of 16 ISSUED: 10-07-13 SHEET #: 180-9055-1... -
Page 4: Important Safety Instructions
Important Safety Instructions Warnings/Safety 1. Read these instructions 2. Keep these instructions 3. Heed all warnings 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. 8. - Page 5 Important Safety Instructions 17. To prevent electric shock, make sure to use the supplied DC adapters as power supply to the product. 18. Avoid overloading electrical outlets or extension cords which otherwise could result in electric shock or fi re. 19.
-
Page 6: Important Information
Important Information • Never use this product in an aircraft or a medical facility as it can cause interference or an undesirable effect. • The use of this product in the following locations may result in abnormal audio output (noise, etc,). -
Page 7: Introduction
Introduction This ADS100-T8 transmitter provides 8 total independent mono zones, or 4 total stereo zones, or any combination in-between. By connecting your source(s) to either the RCA line level or speaker level inputs, you can wirelessly receive the audio signal and amplify it for the remote speakers. For initial set up, refer to the main instruction sheet within the ADS100-B kit. -
Page 8: Overview
Overview ADS100-T8 Transmitter: First, review the transmitter connections and controls. Front 1. POWER • Turns unit ON/OFF 2. SYNC 1-4 • Used to pair amps for channels 1-4 3. SYNC 5-8 • Used to pair amps for channels 5-8 Back 1. -
Page 9: Installation
Installation Step 1 On the existing transmitter complete the following: • Turn the power off. • Remove the power plug from the back panel socket. • Remove all input connections 1-8, noting the exact connections for replacement. • Remove the phillips locking screws in the TX module(s). •... -
Page 10: Limited Warranty
This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV®, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV®’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. - Page 12 Peerless -AV 2300 White Oak Circle Aurora, IL 60502 USA peerair.peerless-av.com ©2013 Peerless-AV. All rights reserved. Peerless-AV is a trademark of Peerless Industries, Inc. Other parties’ marks are the property of their respective owners.
