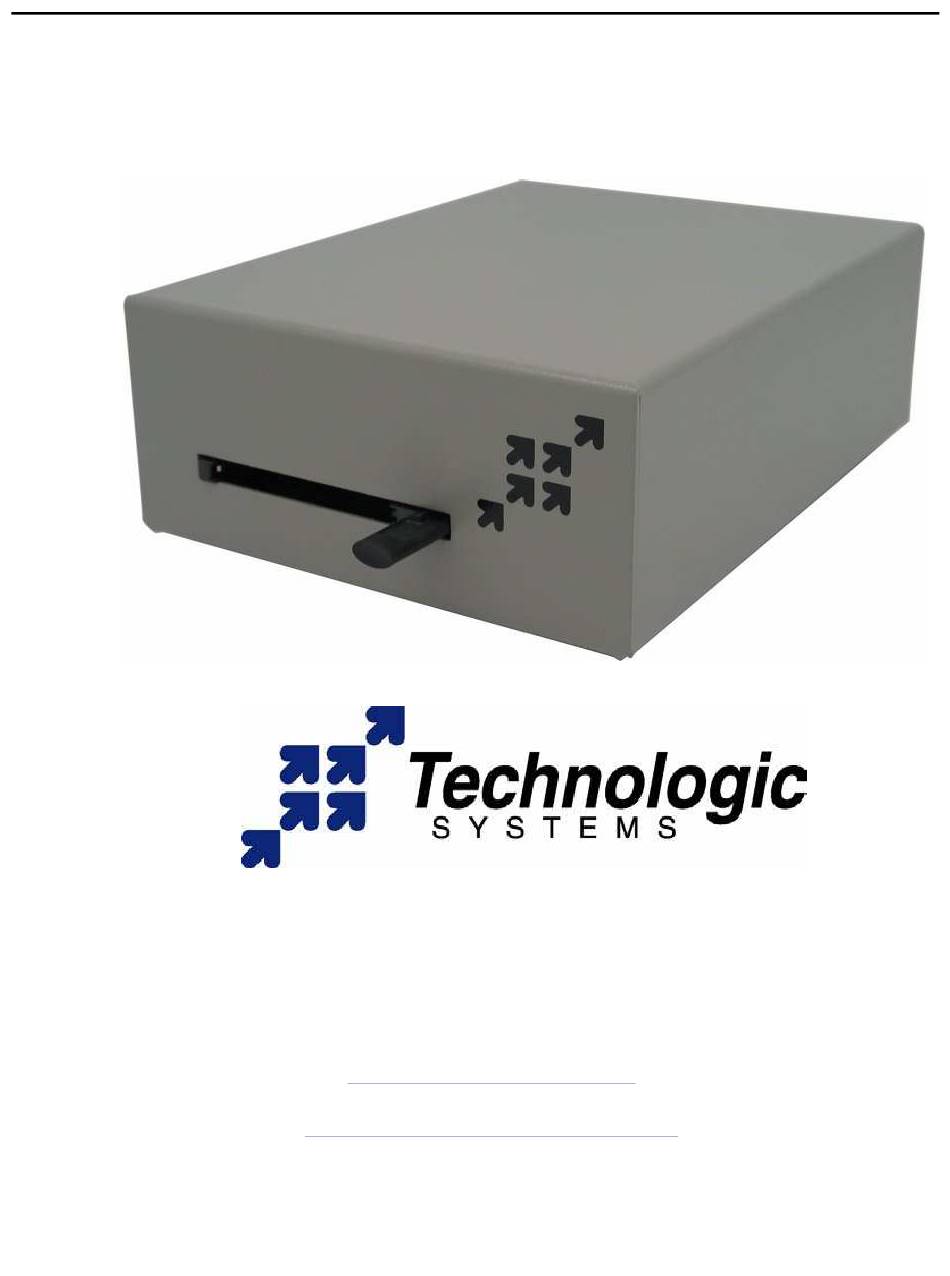

- Page 1 Enclosure TS-ENC550 User Manual 16525 East Laser Drive Fountain Hills, AZ 85268 TEL 480.837.5200 FAX 480.837.5400 info@embeddedx86.com http://www.embeddedx86.com/...
- Page 2 Technologic Systems, Inc. © COPYRIGHT 1998 - 2009 Technologic Systems Inc. Enclosure 550 User Manual Rev. 1.2 July 2009 Note All modifications from previous versions are listed in Appendix B. TS-ENC550 - 2...
-
Page 3: Table Of Contents
Limited Warranty ..................15 Repairs ........................15 Not Covered ......................15 Out-of-Warranty Repairs ..................15 Regulatory Notices ..................16 FCC Advisory Statement ..................16 Appendix A: Enclosure Views and Diagrams ........17 Appendix B: User Manual Revisions .............19 Contact Information.................20 TS-ENC550 - 3 Rev. 1.2... -
Page 4: Product Overview
Technologic Systems, Inc. Product Overview Introduction The TS-ENC550 metal enclosure is made to house the TS-5500 Single Board Computer and PC/104 peripheral boards. The switching power regulator efficiently converts 12-38 VDC to regulated +5 VDC required by the SBC. Features and Benefits... -
Page 5: Installing The Enclosure
Monitor COM2 using a terminal emulator to verify that the enclosure is operating properly. Disconnecting AC Power Unplug the power cord from the power source. Disconnect the power cord from the rear panel of the enclosure. TS-ENC550 - 5 Rev. 1.2... -
Page 6: Components
The rear panel of the metal enclosure has six connectors and two additional elements, as indicated in the above view. Identifiers, and a description for each, are listed in the tables below. Identifier Connector Description Ethernet 0 DIO/ADC/COM4 COM1 COM2 COM3 TS-ENC550 - 6... - Page 7 TS Enclosure 550 User Manual Additional Elements Identifier Description 12-38VDC and Power Indicator LED Chassis Grounding Lug TS-ENC550 - 7 Rev. 1.2...
-
Page 8: Com1 9-Pin Subd Outs Table
Technologic Systems, Inc. Enclosure TS-ENC550 Ethernet Port 0 Left and Right LEDs highlighted Ethernet: The Ethernet connector is a standard RJ-45 socket. It can be used to connect a standard 10/100 Ethernet cable into the enclosed EPC. Note The right side LED above the Ethernet port indicates a 100-Mbit link, while the left side LED indicates network activity. -
Page 9: Com2 9-Pin Subd Outs Table
TS Enclosure 550 User Manual Enclosure TS-ENC550 COM2 Port Pin 1 highlighted COM 2: COM2 is brought in from the base SBC. This 9-pin SubD connector is industry standard for a PC. The TxD, RxD, RTS, CTS, and ground pins are supported for RS-232 communications. -
Page 10: Com3 9-Pin Subd Outs Table
Full Duplex RS-485 9-Pin 9-Pin 9-Pin Signal Signal Signal SubD SubD SubD RX/TX + TX + Receive data Transmit data RX + Ground Ground Ground RX/TX - TX - Request to Send Clear to Send RX - TS-ENC550 - 10... -
Page 11: Dio/Adc/Com4 25-Pin Subd Outs Table
DIO1. If the ADC or COM4 options are purchased, the 25-pin connector is plugged into the purchased option. Only one of the headers on the TS-ENC550 power supply board may be connected at one time. Plugging more than one of the headers in may damage the circuitry. - Page 12 Technologic Systems, Inc. Enclosure TS-ENC550 12-38 VDC Connector 12-38VDC: The three-pin connector accepts 12-38 VDC of external power to supply power to the board. Power Indicator Light Power Indicator Light: The amber-colored LED indicator on the rear panel, shown highlighted above in red, is the power LED. It is lit whenever power is applied to the unit.
-
Page 13: Product Specifications
Note: Refer to your product manual, The internal temperature must not exceed +70° C. or contact Customer Service at Technologic Systems if the environmental temperature of the location is in doubt. Not to exceed 90% Not to exceed 90% noncondensing. -
Page 14: Options And Other Features
Technologic Systems, Inc. Options and Other Features RS-485 is optional on COM3 A wall-mounted power supply is available for this product TS-ENC550 - 14... -
Page 15: Limited Warranty
TS Enclosure 550 User Manual Limited Warranty Technologic Systems warrants this product to be free of defects in material and workmanship for a period of one year from date of purchase. Repairs During this warranty period Technologic Systems will repair or replace the defective unit in... -
Page 16: Regulatory Notices
Commission (FCC) may also prove helpful: How to Identify and Resolve Radio-TV Interference Problems (Stock No. 004-000- 000345-4) Interface Handbook (Stock No. 004-000-004505-7) These booklets may be purchased from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402 TS-ENC550 - 16... -
Page 17: Appendix A: Enclosure Views And Diagrams
TS Enclosure 550 User Manual Appendix A: Enclosure Views and Diagrams Enclosure TS-ENC550 Front-Top View Enclosure TS-ENC550 Rear Panel View TS-ENC550 - 17 Rev. 1.2... - Page 18 Technologic Systems, Inc. TS-ENC550 Board TS-ENC550 Board Diagram and Dimensions TS-ENC550 - 18...
-
Page 19: Appendix B: User Manual Revisions
TS Enclosure 550 User Manual Appendix B: User Manual Revisions Date of Issue/Revision Revision Number Comments January 2005 First release July 2008 Fixed broken web links June 2009 Updated mailing address TS-ENC550 - 19 Rev. 1.2... -
Page 20: Contact Information
Technologic Systems, Inc. Contact Information 16525 East Laser Drive Fountain Hills, AZ 85268 TEL 480.837.5200 FAX 480.837.5400 info@embeddedx86.com http://www.embeddedx86.com/ TS-ENC550 - 20...
