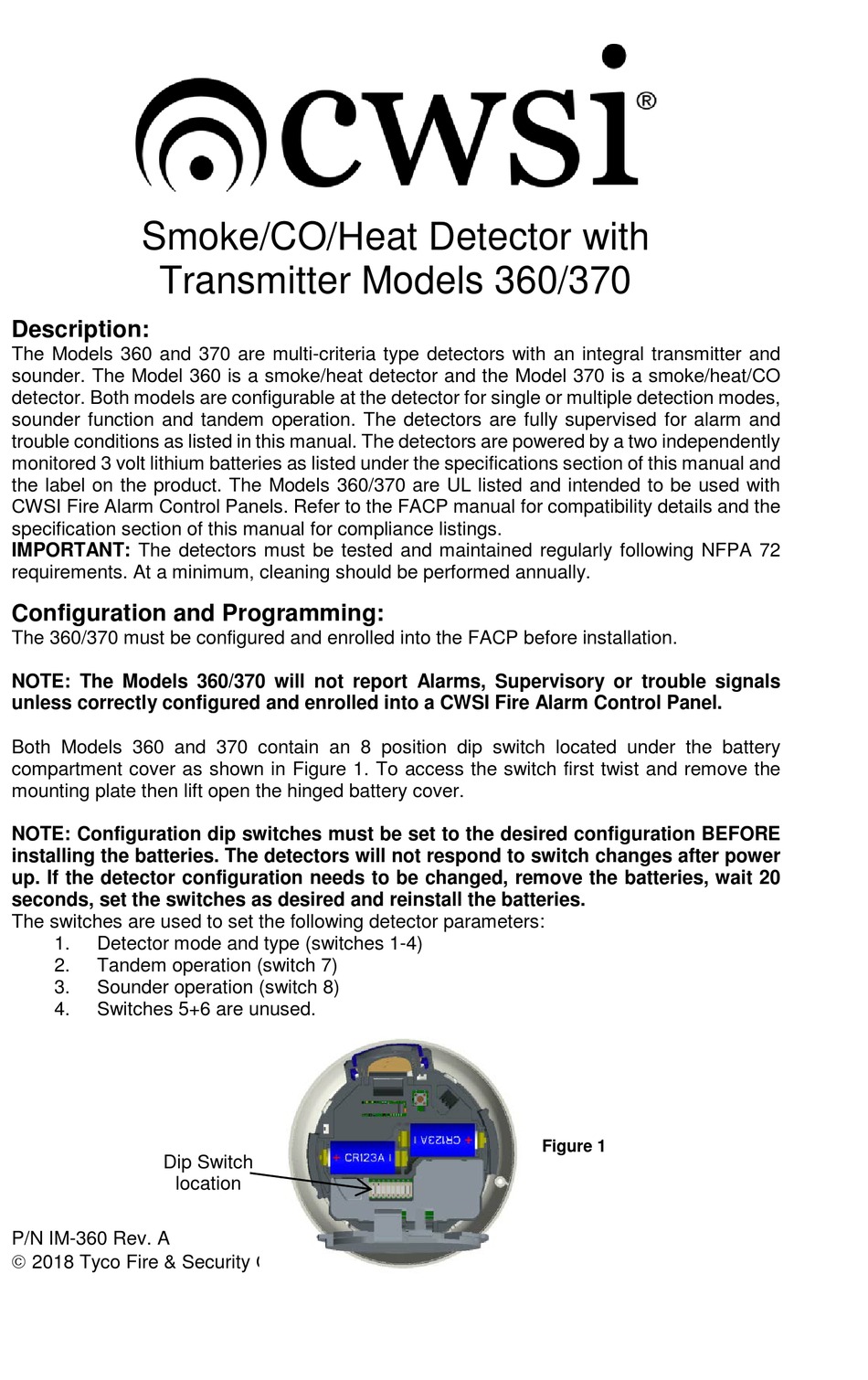

Smoke/CO/Heat Detector with
Transmitter Models 360/370
Description:
The Models 360 and 370 are multi-criteria type detectors with an integral transmitter and
sounder. The Model 360 is a smoke/heat detector and the Model 370 is a smoke/heat/CO
detector. Both models are configurable at the detector for single or multiple detection modes,
sounder function and tandem operation. The detectors are fully supervised for alarm and
trouble conditions as listed in this manual. The detectors are powered by a two independently
monitored 3 volt lithium batteries as listed under the specifications section of this manual and
the label on the product. The Models 360/370 are UL listed and intended to be used with
CWSI Fire Alarm Control Panels. Refer to the FACP manual for compatibility details and the
specification section of this manual for compliance listings.
IMPORTANT: The detectors must be tested and maintained regularly following NFPA 72
requirements. At a minimum, cleaning should be performed annually.
Configuration and Programming:
The 360/370 must be configured and enrolled into the FACP before installation.
NOTE: The Models 360/370 will not report Alarms, Supervisory or trouble signals
unless correctly configured and enrolled into a CWSI Fire Alarm Control Panel.
Both Models 360 and 370 contain an 8 position dip switch located under the battery
compartment cover as shown in Figure 1. To access the switch first twist and remove the
mounting plate then lift open the hinged battery cover.
NOTE: Configuration dip switches must be set to the desired configuration BEFORE
installing the batteries. The detectors will not respond to switch changes after power
up. If the detector configuration needs to be changed, remove the batteries, wait 20
seconds, set the switches as desired and reinstall the batteries.
The switches are used to set the following detector parameters:
1.
Detector mode and type (switches 1-4)
2.
Tandem operation (switch 7)
3.
Sounder operation (switch 8)
4.
Switches 5+6 are unused.
P/N IM-360 Rev. A
 2018 Tyco Fire & Security GmbH
Dip Switch
location
1
Figure 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 360 and is the answer not in the manual?

Questions and answers

Summary of Contents for CWSI 360

  • Page 1 3 volt lithium batteries as listed under the specifications section of this manual and the label on the product. The Models 360/370 are UL listed and intended to be used with CWSI Fire Alarm Control Panels. Refer to the FACP manual for compatibility details and the specification section of this manual for compliance listings.
  • Page 2 Table 1 below shows the switch settings for the detector mode/type selection on the Model 360 and Table 2 shows the detector mode/type settings for the Model 370. The first column lists the applicable Model detector for that rows dip switch setting.
  • Page 3: Installation

    Installation: Select an accessible location that is not prone to tampering or accidental damage. The Model 360/370 must be installed and maintained in accordance with the National Fire Protection Association’s Standards (NFPA), the National Electrical Code and all local fire and electrical requirements. The mounting surface should be relatively flat and capable of accepting screws or anchors.
  • Page 4 CO detectors. Refer to technical bulletins part numbers IM-300-TB- RevB and IM-350-TB-Rev A for more information. P/N IM-360 Rev. A  2018 Tyco Fire & Security GmbH...
  • Page 5 Figure 3 Tamper Resistant Feature LED and Sounder Operation: The 360/370 detectors are equipped with a tricolor LED status indicator and a sounder* to provide local visual and audible indication of the detector’s status. The table below explains the LED and sounder functions.
  • Page 6 *** When the unit powers up, you will see a sequence of 7 yellow LED flashes followed by 5 green LED flashes. The 5 green flashes will not occur if the detector has a fault. Smoke Alarm Operation: P/N IM-360 Rev. A  2018 Tyco Fire & Security GmbH...
  • Page 7 The detector can be installed in both living and common areas. When it is installed in common areas do not program the tandem feature. The model 360/370 allows the detectors piezo sounder to be turned on or off in tandem with an RF command signal from the FACP. This...
  • Page 8 360/370 detector. If a detector fails any of the tests below, it should be cleaned as outlined in the Maintenance section and retested. If the detector still fails, it should be replaced.
  • Page 9 5. If the detector failed the test, it should be cleaned as outlined in the Maintenance section. Rerun the test. If the detector still fails, it should be replaced. P/N IM-360 Rev. A  2018 Tyco Fire & Security GmbH...
  • Page 10 3 for 2 seconds. The model 360/370 piezo sounder will beep once. A delay of up to 15 seconds will occur followed by either one or two beeps. One beep indicates an unacceptable location and two beeps indicate an acceptable location.
  • Page 11 Low battery The model 360/370 detector periodically tests each battery for a low battery condition. The voltage on either battery has to be at or below 2.7V nominally for two consecutive battery tests before a low battery trouble condition is transmitted. When a low battery is detected the yellow LED will blink every 45 seconds and a low battery trouble signal will be transmitted and repeated every 90 seconds.
  • Page 12 9. Remove the panel from test mode. Tamper The Models 360/370 contain a built in switch that will cause a tamper signal to be transmitted if the detector is removed from its mounting position. Upon detector removal, a tamper signal is transmitted and repeated every 90 seconds until the detector is mounted on its base.
  • Page 13 Note: This trouble is self-restoring on some CWSI control panels. Refer to the control panel manual. Hardware Fault The Models 360/370 monitors the integrity of the hardware and communications between the smoke detector board and the RF transmitter board internal to the smoke detector. A Hardware Flt trouble will be displayed on the FACP if there is a hardware failure or communications failure between the two boards.
  • Page 14 • Battery Life: 12 Months Minimum • Battery Replacement: Upon Low battery report and/or during annual maintenance. • Average Standby Current: Model 360/370 32.8ua Tandem mode 71.5ua • Average Alarm Current: Model 360/370 36ma • Tamper Switch: On base •...
  • Page 15 However, CWSI a Tyco Fire & Security GmbH Company (CWSI), may not be held accountable for errors or omissions in this or other CWSI publications. No license is granted by implication or otherwise under any patent rights of CWSI.
