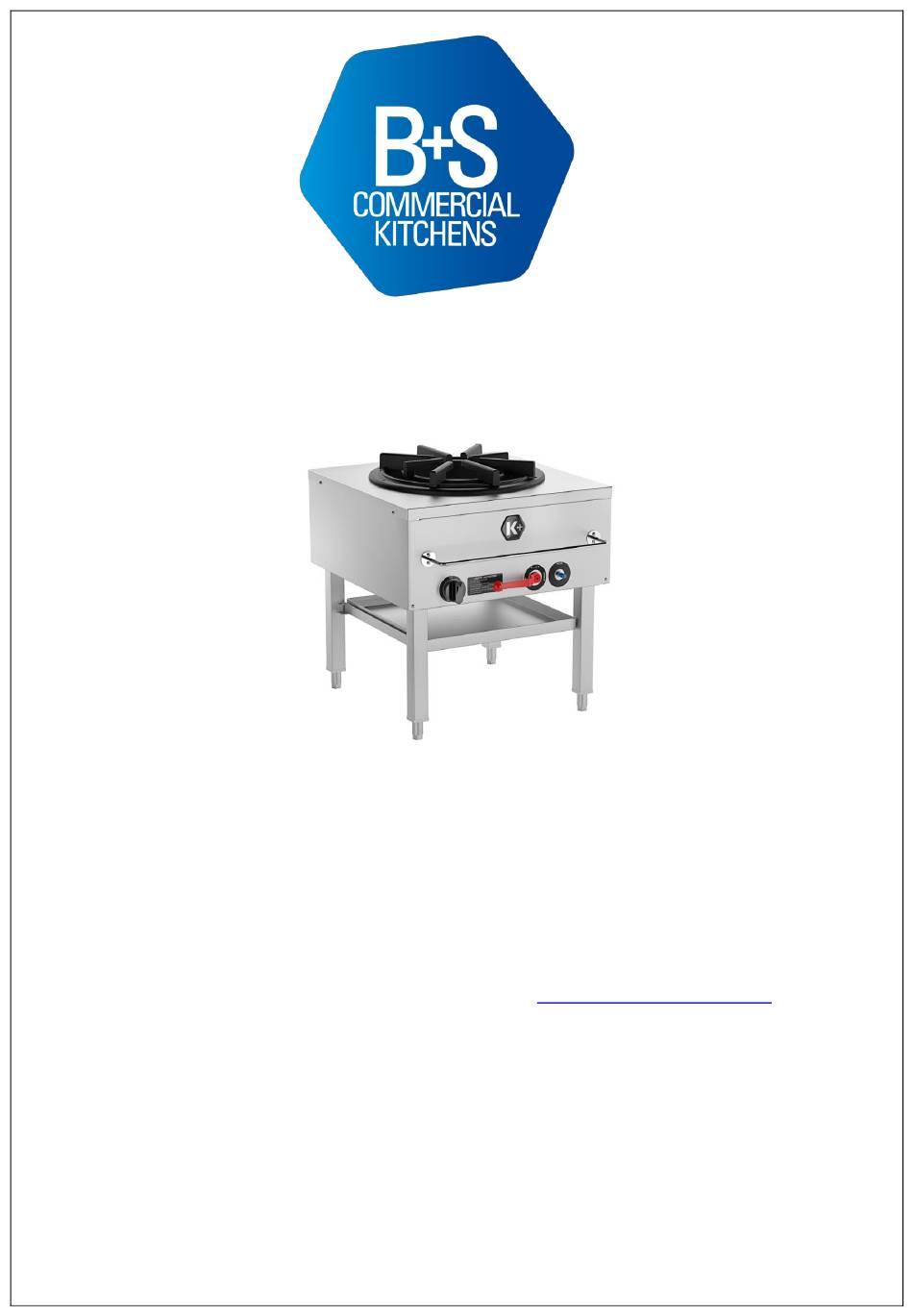

INSTALLATION, OPERATING AND SERVICING INSTRUCTION MANUAL

CSP Series Stock Pot

Model No's.: CSP-1
Approval No.; GMK10343
Manufactured By;
B&S Commercial Kitchens Pty Ltd
57 Plateau Road Reservoir VIC 3073 AUSTRALIA
Tel: +61 3 9469 4754 Fax: +61 3 94694504 Web:
www.bscommercialkitchens.com
Please ensure this booklet is kept in a safe and prominent location for future reference.
The reproduction on or copying of any part of this booklet via any means is strictly forbidden unless agreed to in writing by
the manufacturer.
Owing to continual product development and improvements to its products, B&S Commercial Kitchens Pty Ltd reserves the
right to change the product specifications and design without prior notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSP Series and is the answer not in the manual?

Questions and answers

Related Manuals for B+S CSP Series

Summary of Contents for B+S CSP Series

  • Page 1: Installation, Operating And Servicing Instruction Manual

    INSTALLATION, OPERATING AND SERVICING INSTRUCTION MANUAL CSP Series Stock Pot Model No’s.: CSP-1 Approval No.; GMK10343 Manufactured By; B&S Commercial Kitchens Pty Ltd 57 Plateau Road Reservoir VIC 3073 AUSTRALIA Tel: +61 3 9469 4754 Fax: +61 3 94694504 Web: www.bscommercialkitchens.com...

  • Page 2: Table Of Contents

    Pressure Test Point ......................... 5 Before Leaving - Commissioning ..................... 5 Operating Instructions ...................... 6 IMPORTANT WARNING! ....................6 Figure 1: CSP Series Stock Pot - Knowing Your Appliance ................6 IMPORTANT WARNING! ....................7 Lighting Instructions ......................... 7 Shutdown Procedure ....................... 7 Maintenance and Care ......................

  • Page 3: Table 1: Nominal Terminal Input Rates & Injector Sizes

    Product Specifications & Introduction Appliance Name: CSP Series Stock Pot This appliance may be branded as B&S and Kirana Manufactured By: B&S Commercial Kitchen s Pty Ltd Certificate Holder: 57 Plateau Road Reservoir Victoria 3073 Tel; + 61 3 9469 4754 Fax: +61 3 9469 4504 E-mail: info@bscommercialkitchens.com...

  • Page 4: Important Warnings

    IMPORTANT WARNINGS THIS APPLIANCE SHALL ONLY BE INSTALLED/SERVICED BY AN AUTHORISED INSTALLER. THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE SPECIFIED INSTRUCTIONS AND SPECIFICATIONS. IMPROPER INSTALLATION OPERATION THIS APPLIANCE MAY RESULT IN PRODUCT FAILURE WHICH MAY LEAD TO PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

  • Page 5: Combustible Surfaces

    Combustible Surfaces Clearances to combustible surfaces must be in accordance with AS/NZS 5601.1 - Gas Installations, clause 5.12.4.5. Install on a flat/level floor. Where the floor is not fire resistant, a fire resistant material shall be put under the appliance which shall have a fire resistance rating at least equal to that of 10mm millboard. The material shall extend at least 50mm beyond the edge of the appliance.

  • Page 6: Operating Instructions

    THE APPLIANCE IS POSITIONED IN APLACE WHERE THE POTS CANNOT BE ACCIDENTALLY KNOCKED OFF THE APPLIANCE. FAILURE TO DO SO MAY RESULT IN SERVERE SCALDING AND/OR PERSONAL INJURY. Figure 1: CSP Series Stock Pot - Knowing Your Appliance Ring Trivet...

  • Page 7: Important Warning

    IMPORTANT WARNING! ENSURE NO OR MINIMAL AMOUNTS OF OIL AND FOODSTUFFS FALL INTO THE BURNER AREA WHILST COOKING. FAILURE TO DO SO MAY AFFECT THE EFFICIENT AND SAFE OPERATION ON THE APPLIANCE AND MAY VOID WARRANTY Lighting Instructions A. Before lighting this appliance, ensure the red handled ball valve is in the off position. B.

  • Page 8: Servicing Instructions

    Yearly Checks & Service  The appliance should be inspected and adjusted periodically by a qualified service person as part of any kitchen maintenance program.  B&S recommends that this appliance is inspected at least annually by a authorised service technician as follows: Inspect the table inside-out for excessive build-up of any fats, oils and foodstuffs.

  • Page 9: Servicing Of Main Gas Valve, Flame Failure Safety Device & Pilot Gas Cock

    Servicing of Main Gas Valve, Flame Failure Safety Device & Pilot Gas Cock Follow procedure described under GAINING ACCESS TO GAS SYSTEM 1. Undo barrel union located at each end of the gas valve assembly and lift the assembly out. 2.

  • Page 10: Table 3: Troubleshooting

    Table 3: Troubleshooting FAULT POSSIBLE CAUSE CHECKS Blockage of pilot Check pilot injector is not blocked as described in servicing instructions - pilot and flame safeguard Pilot light not igniting Adjustment of pressure from flame Check gas pressure to pilot as control described under servicing instruction - adjustments...
