Sunfull 1002-ARM Instructions For Installation

Instruction for installation

Suitable gateway type（1 network port 2 serial port）
Model:BAC1002-ARM MOD1002-ARM HUB1002-ARM SNMP1002-ARM
1.0 software configuration step (refer to the relevant configuration software operation manual)
please confirm the following:
- the configuration project is correct;
- upload engineering files to the gateway (note not download works)
- simulation test to collect data;

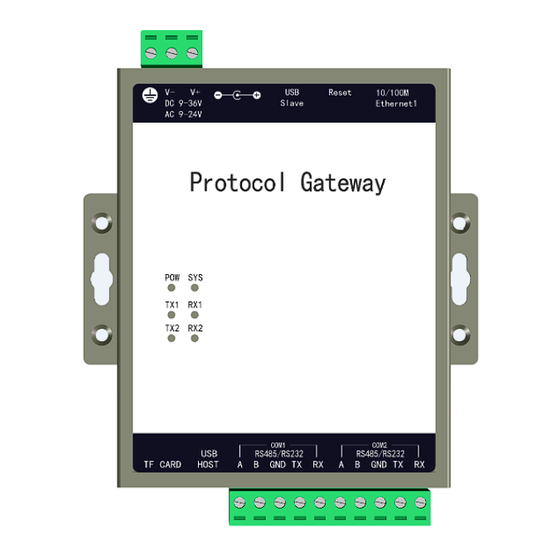

2.0 gateway graphic

Wall type installation gateway size:129mm× 109mm× 27mm(L× W× H)
Guide rail installation gateway size: 129mm× 86mm× 34mm(L× W× H)
Power: AC/DC 9~24V (rated power 5 W);（V+ , V-）
Gateway:

3.0 wiring description:

Ethernet network: if the network port protocol is used, the default IP address is 192.168.1.88.
Reset: when the user forgets the gateway IP address, the user can press the Reset button until the
gateway "tick" and the network port temporarily restore the default IP address, and then log in
192.168.1.88 to check the original IP address of the gateway.(the operation takes effect immediately,
and fails after power failure)
RS485 interface: 2 total isolation RS485 interface A (+) B negative (-)
RS232 interface: 2 full isolation RS232 interface (note: reusing relationship with RS485)
Rx (2) TX (3) GND (5)
DB9-M
weight：200g DB9-F
weight：200g

4.0 login gateway Web server

The network line receives the Ethernet, the default IP address: 192.168.1.88 login user name:
admin password: admin123456
Note: download gateway configuration software after entering the web server, please refer to the
PDF document under the Help folder for specific operation.
5.0 common problems
Question 1: how to change the IP address?
Answer 1: gateway factory default IP address 192.168.1.88, subnet mask 255.255.255.0, default
Gateway RX (2) ~~ device TX (3)
Gateway TX (3) ~~ device RX (2)
Gateway GND (5) ~~ equipment GND (5)
Gateway RX (2) ~~ device RX (2)
Gateway TX (3) ~~ device TX (3)
Gateway GND (5) ~~ equipment GND (5)
