Sunfull 1002-LITE Installation Instructions

Installation instructions
Suitable gateway type（1 network port 4 serial port ： 4 RS485, 1 RS232）
Basic version: W7-1041
Gateway version: W7-1041-GW
1.0 Before use the software configuration step (refer to the relevant configuration
software operation manual), please confirm the following:
- the configuration project is correct;(please refer to the X2View configuration software
operation instructions for details)
- upload engineering files to the touch panel;
- simulation test to collect data;

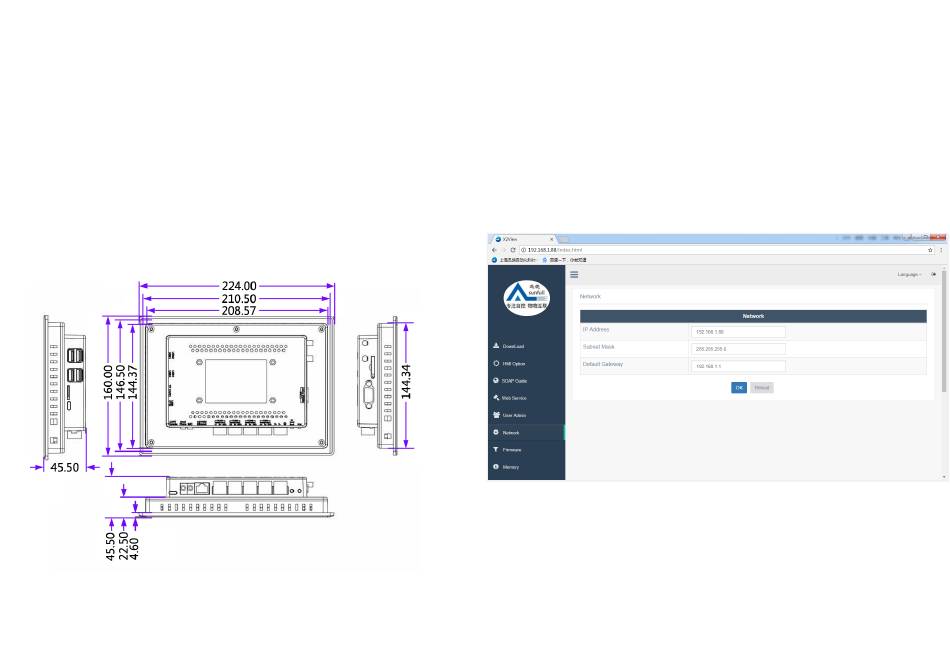

2.0 Touch panel size

7 inch touch panel Hole size: 210.5mm x 146.5mm (L * W) weight: 550g
Installation method: (Card buckle installation)

3.0 wiring instructions

Power supply: AC/DC 9~24V (rated power 5W);
Network port: default IP address 192.168.1.88;
Full isolation RS485 interface: (COM1, COM2, COM3, COM4)
A positive (+) B negative (-) GND (ground)
Full isolation RS232 interface: Rx (2) TX (3) GND (5)
DB9-M: Gateway RX (2) ~~ device TX (3)
Gateway TX (3) ~~ device RX (2)
Gateway GND (5) ~~ equipment GND (5)
DB9-F: Gateway RX (2) ~~ device RX (2)
Gateway TX (3) ~~ device TX (3)
Gateway GND (5) ~~ equipment GND (5)

4.0 Login touch panel Web server

Under the network cable to the Ethernet port, enter the URL on the browser:
http://192.168.1.88/login.html
Note: download gateway configuration software after entering the web server, please
refer to the PDF document under the Help folder for specific operation.

5.0 common problems

Q1: how to modify the IP address of the gateway/touch panel?
A1: The gateway factory default IP address 192.168.1.88, subnet mask 255.255.255.0, default
gateway 192.168.1.1.
Login Username: admin Password: admin123456
