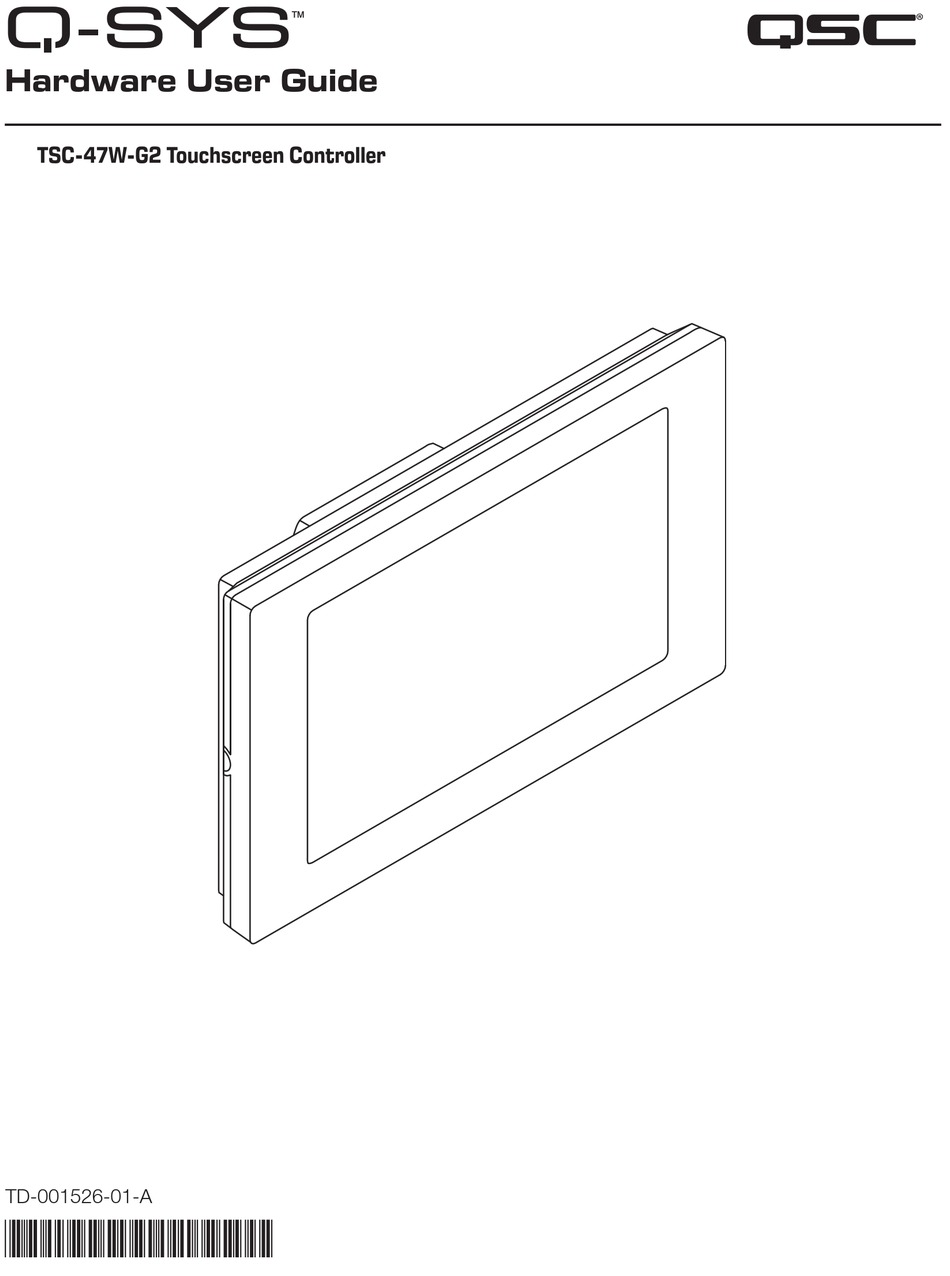

- Page 1 ™ ® Hardware User Guide TSC-47W-G2 Touchscreen Controller TD-001526-01-A *TD-001526-01*...
-
Page 2: Explanation Of Symbols
EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. -
Page 3: Rohs Statement
For a copy of the QSC Limited Warranty, visit the QSC, LLC., website at www.qsc.com Para una copia de la Garantía Limitada de QSC, visite el sitio web de QSC, LLC., en www.qsc.com Pour obtenir une copie de la garantie limitée de QSC, visitez le site de QSC, LLC. à www.qsc.com Besuchen Sie die Webseite von QSC, LLC. -
Page 4: Package Contents
Safety Information and Touchscreen Wall-Mounting-Bracket Regulatory Statements Controller TD-001510 QSC Limited Screws (#6-32, 25mm) Warranty TD-000453 Description The TSC-47W-G2 Touchscreen Controller combines capacitive LCD touch technology with a 960 x 540 high-definition resolution display, and Power over Ethernet (PoE) for simplified single-cable installation. The TSC-47W-G2 can operate in both portrait or landscape mode providing more design flexibility when installing in a wall, lectern or a similar flat surface. -
Page 5: Rear Panel
24VDC / 0.5A Touchscreen Controller to the installed Universal Wall-Mounting-Bracket LAN/PoE 2. Mounting clips (4x) for QSC, LLC holding the Touchscreen 1675 MACARTHUR BLVD. Designed in U.S.A. & Taiwan COSTA MESA, CA, 92626 PRODUCT OF TAIWAN Controller to the Universal... -
Page 6: Installation
Installation The TSC-47W-G2 Touchscreen Controller is designed for surface mount installation in a wall, lectern or similar flat surface. A Universal Wall-Mounting-Bracket is included for mounting to standard US and European wall and junction boxes and allows for vertical or horizontal installations. - Page 7 Dimensions 119 mm 4.7 in. 35 mm 80 mm 1.4 in. 3.1 in. 80 mm 3.1 in. — Figure 7 — TD-001526-01-A...
-
Page 8: Specifications
Specifications Display (Front Panel) User Interface 4.7 in. (119 mm) diagonal viewing area Projected capacitive touch Multi-position touch and gesture surface, in-plane switching (IPS) technology, 16.7M colors Resolution 960x540 Brightness 400 Nits Rear Panel RJ-45 LAN, 1000 Mbps, LEDs for network status and activity Auxiliary Power Receptacle 2-position latching Plug (not supplied) -
Page 9: Mailing Address
FAX: +1.714.754.6173 +1.714.957.7150 © Copyright 2017, QSC, LLC, QSC™ is a registered trademark of QSC, LLC, “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office. Q-SYS, Q-LAN and, Q-SYS Designer are trademarks of QSC, LLC. All trademarks are the property of their respective owners.
