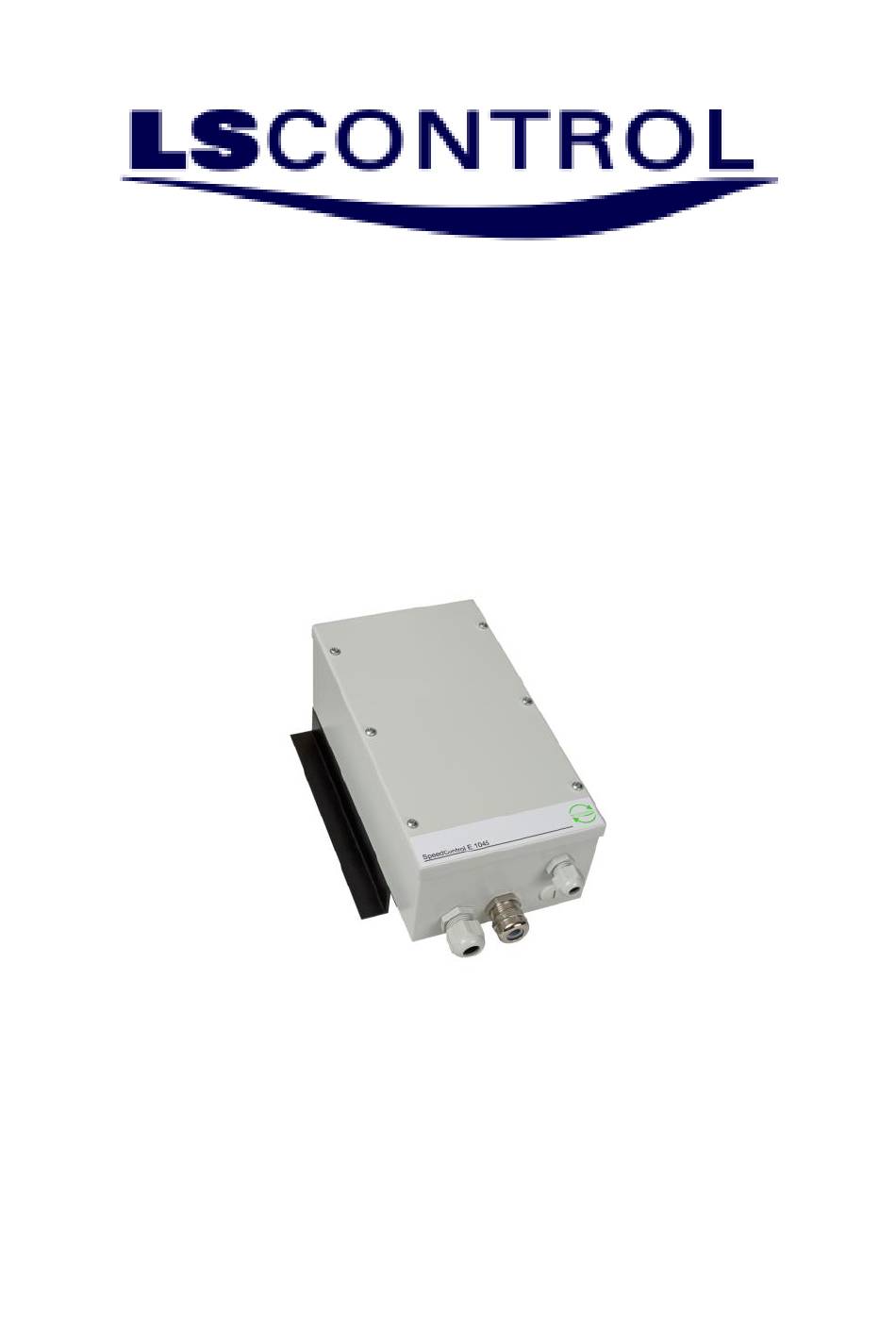

- Page 1 Frequency Converter SpeedControl E 1045 For use with specific motors Date: 19/11-2018 Revision: 9 Drawn by: FS and DF Manufactured by: LS Control A/S http://www.lscontrol.com Phone: +45 5550 5550 Drawing: 949-206095_HIGHLY_vejledning_ES1045_rev9_UK...
-
Page 2: Table Of Contents
User Guide for SpeedControl E 1045 Table of Content Product Description ................3 Considerations if used with compressors..........3 Application considerations with compressors ........3 Technical Specifications ................4 EMC ......................4 Warnings ....................4 Description of Functions ................. 6 Supply ............................... -
Page 3: Product Description
User Guide for SpeedControl E 1045 Product Description SpeedControl E 1045 is a frequency converter for control of EC, PMSM, BLDC and standard asynchronous motors up to 1500W/5.5A or 2000W/6.5A for 3 phase motors with single phase supply. SpeedControl E 1045 is enclosed in an IP 54 metal housing for demanding environments. -
Page 4: Technical Specifications
Adjustable speed electrical power drive systems - Part 5-1: Safety requirements - Electrical, thermal and energy. If a frequency converter is purchased in no enclosure (IP00), LS Control can’t ensure that the frequency converter complies with the above standards. Warnings Before the frequency converter is taken into use, verify that the frequency converter specifications are compatible with the mains to which it is going to be connected. - Page 5 User Guide for SpeedControl E 1045 If the frequency converter is connected to an installation with a residual current device as an extra protection, the device must be marked with the following symbol: HPFI/PFI The components of the power unit of the frequency converter are live when it is connected to mains.
-
Page 6: Description Of Functions
User Guide for SpeedControl E 1045 Description of Functions Supply The frequency converter is supplied by 230VAC ±10%. However it is possible to lower the voltage, but it must be noted, that the power of the asynchronous motor will be lowered as the main supply voltage decreases. -
Page 7: Hw Stop Switch
User Guide for SpeedControl E 1045 HW Stop switch The frequency converter is supplied with a Hardware (HW) Stop switch function. This HW Stop Function can be used with a switch (e.g. a pressure switch or a thermal switch). The Switch must be connected between connector 16 and 17, and it must be closed for the frequency converter to run the motor. -
Page 8: Electrical / Mechanical Installation
User Guide for SpeedControl E 1045 Electrical / Mechanical Installation Important A time delay of approx. 3 - 30 sec will occur at start up. If the PCB is dismounted from the metal housing, the warranty will be void. Before handling the frequency converter, it must have been disconnected from supply power for at least 5 min. -
Page 9: Supply
User Guide for SpeedControl E 1045 Supply The frequency converter is supplied by mains (230VAC ±10%) with minimum 3 x 1.5 mm2 cable. The distance between supply cable and motor cable must be as long as possible (> 30 cm). If it is neccessary to cross the power cable and the motor cable, this must be done at an angle of 90°. -
Page 10: Mounting
User Guide for SpeedControl E 1045 Mounting Mounting instruction for ES1045D PCB Note: If thermal switch is not used shorten connector 1 & 2. If the thermistor is needed connect to connector 1 & 2 and setup through ModBus for thermistor use. -
Page 11: Indicator Lights
User Guide for SpeedControl E 1045 Indicator Lights The PCB is equipped with LED lights. LED1 to LED7. Modbus LED lights LED5 (red) and LED6 (green) are modbus LED lights. See page ”10” for LED locations. LED6 flashes fast when communicating. -
Page 12: Controller Led's
User Guide for SpeedControl E 1045 Controller LED’s LED3 (red) and LED4 (green) are controlled by the interface circuit controlling the I/O’s. See page ”10” for LED locations. Start When the frequency converter is connected to mains, the following pattern is shown: LED3 turns on and LED4 flashes fast. -
Page 13: Faq
User Guide for SpeedControl E 1045 No LEDs are on and the motor will not start. Check if the frequency converter is connected to mains Check if fuse is blown. The motor will not start and LED7 is on If hardware stop switch is not in use, terminals 16 and 17 must be shortened.
