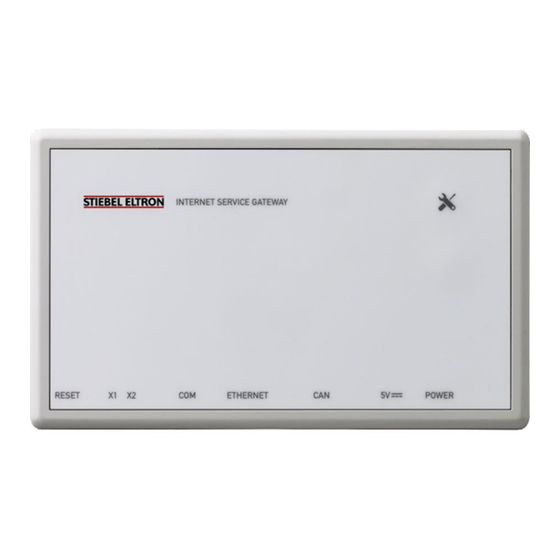

  • Page 1 OPERATION AND INSTALLATION Internet Service Gateway » ISG web...

  • Page 2: General Information

    (WPM) is equipped with the minimum software versions listed below. f If in doubt, consult our service department. Hinweis The Modbus TCP/IP software is installed on the ISG at the factory and can be used with compatible devices. ISG web www.stiebel.com.au...
  • Page 3 You can use the ISG in conjunction with the following heat pumps/integral ventilation units: STIeBeL eLTRON Type from yr Controller from soft- WP web connection Building automation of mftr ware vrsn ISG web Modbus usage LWZ 303/403 Integral/SOL Integral 08/2008 LWZ 304/404 SOL Integral LWA 403 Integral LWZ 304 Integral...

  • Page 4: Appliance Description

    - Crossover cable RJ45 grey CAT5E (3.0 m long) with the provisions of the German Federal Data Protection Act. Instructions, standards and regulations Note Observe all applicable national and regional regulations and instructions. Test symbols See type plate on the appliance. ISG web www.stiebel.com.au...

  • Page 5: System Requirements

    Enter "http://servicewelt" or "192.168.0.126" or the IP address assigned during commissioning in your web browser address bar. Press Enter. SERVICEWELT opens. Your data will be loaded. Note If the access lock is enabled (see chapter "Access lock"), a login screen will appear first. www.stiebel.com.au ISG web...

  • Page 6: Start Page

    On the SERVICEWELT start page you will see an overview of your system and can make changes to the most important settings directly. 1 Menu 2 Operating mode 3 System status 4 Portal status 5 Quick access convenience values 6 Graph panel 7 Graph selection ISG web www.stiebel.com.au...

  • Page 7: Troubleshooting

    In the event of problems with the on-site IT network, f Click on "Save". please consult an IT contractor. The set operating mode is displayed. 4.2.4 System status The "System status" field shows you information such as error messages. www.stiebel.com.au ISG web...

  • Page 8: Installation

    Use the CAN BUS cable supplied to connect the ISG to your heat pump/integral ventilation unit via the CAN interface. When doing so, observe the operating and installation in- structions of your heat pump/integral ventilation unit. ISG web www.stiebel.com.au...
  • Page 9 CAN connection status f Carry out a manual registration. constant rapid flashing connection established flashing connection is being established Manual registration no connection f Enter "http://servicewelt" or "192.168.0.126" in the address bar of your web browser. Press Enter. www.stiebel.com.au ISG web...

  • Page 10: Network Configuration In The Servicewelt

    The Servicewelt or the selected IP address will open. Your data will be loaded. Commissioning is now complete. Note We recommend bookmarking the SERVICEWELT or adding it to your favourites in your web browser. f Click on "Profile" in the menu bar to access the network settings. ISG web www.stiebel.com.au...

  • Page 11: Restoring Factory Settings

    Click on "Next". Restoring factory settings The data protection policy and terms of use are displayed. f To restore the ISG to factory settings, hold down the reset button using a fine pen or a paperclip for 10 seconds. www.stiebel.com.au ISG web...

  • Page 12: Specification

    - You can access the mobile website at the following address: "https://servicewelt.stiebel-eltron.de/mo- Note bile/app/app.html" Enter your heat pump/integral ventilation unit data in the "Device type" and "Device number" fields. Specification f Click on "Next". ISG web 229336 Electrical data Max. power consumption Dimensions Height Width Depth...

  • Page 13: Environment And Recycling

    This will not affect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations. www.stiebel.com.au ISG web...
  • Page 14 Australia STIEBEL ELTRON Australia Pty. Ltd. 294 Salmon Street | Port Melbourne VIC 3207 Tel. 03 9645-1833 | Fax 03 9645-4366 info@stiebel.com.au www.stiebel.com.au...
