Summary of Contents for Velleman DTO2234

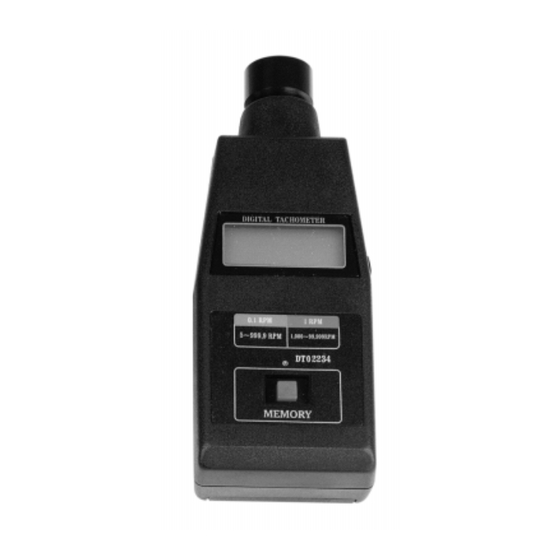

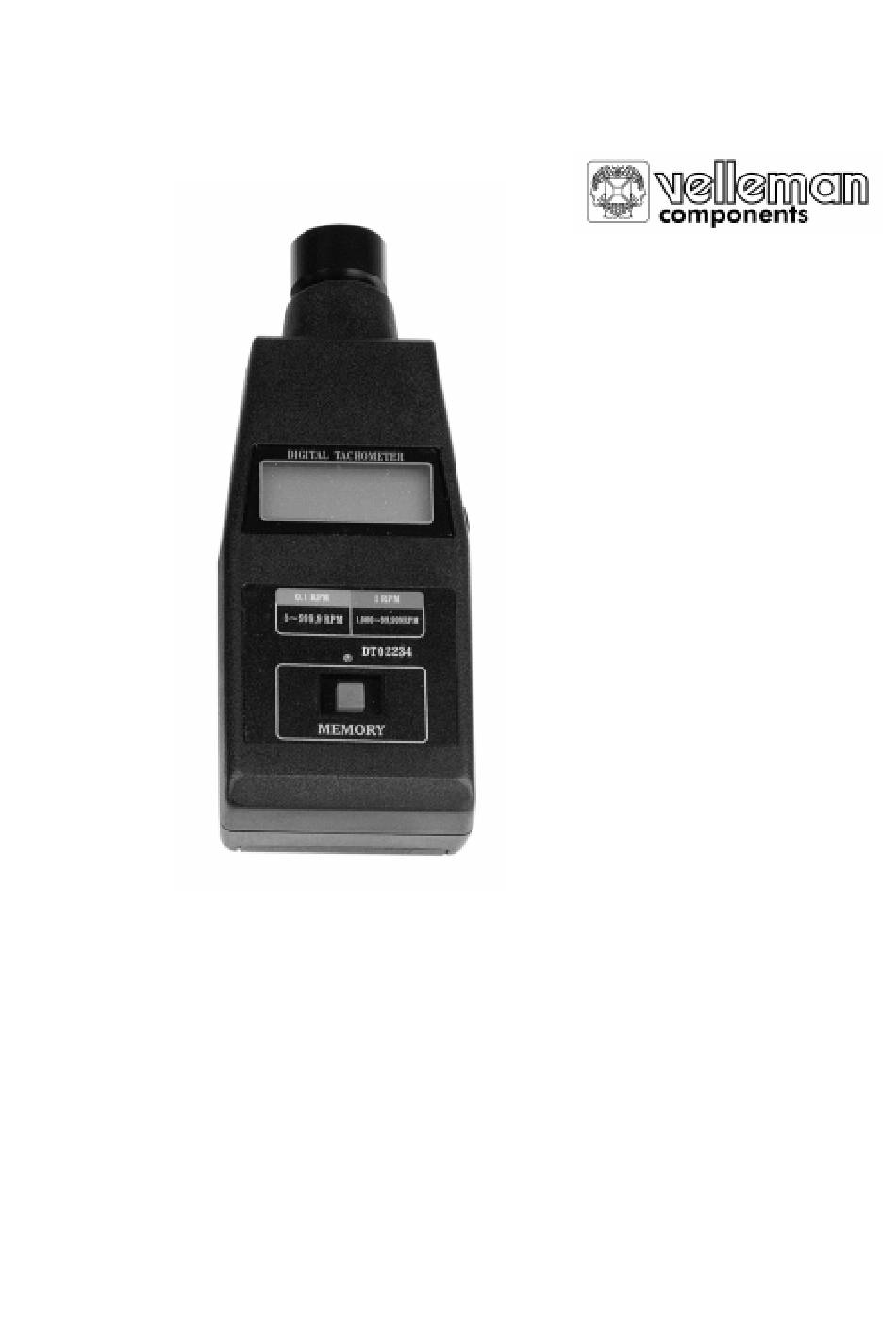

- Page 1 DTO2234 Digital Photo Tachometer User Manuel Gebruikershandleiding Manuel d’Utilisation...
-
Page 2: Specifications
0 to 50°C (32 to 122°F) Size : 191 x 72 x 38mm (7.5" x 2.8" x 1.5") Weight : 250g (0.55 lb) (including batteries) Accessories : Carrying case : 1 pc Reflection tape marks (600mm) : 1pc Operation manual : DTO2234... -
Page 3: Measuring Procedure
Apply a reflective mark to the object being measured. Depress the MEASURE BUTTON (5) and align the visible light beam (2) with the applied target. Verify that the MONITOR INDICATOR (3) lights up when the measuring stabilises (about 1 to 2 seconds). DTO2234... - Page 4 6.1 A readout (the last value, max. value, min. value) obtained immediately before turning off the MEASURING BUTTON is automatically memorised. For example, please refer to figure 2 below. Max Value Last Value Display Reading Min Value Measuring Time DTO2234...
- Page 5 4.5V), "LO" will appear on the display. 2. Slide the battery cover (7) away from the instrument and remove the batteries. 3. Install the batteries (4 x 1.5V AA/UM-3) correctly into the case. Permanent damage to the circuit may result from incorrect installation. DTO2234...
