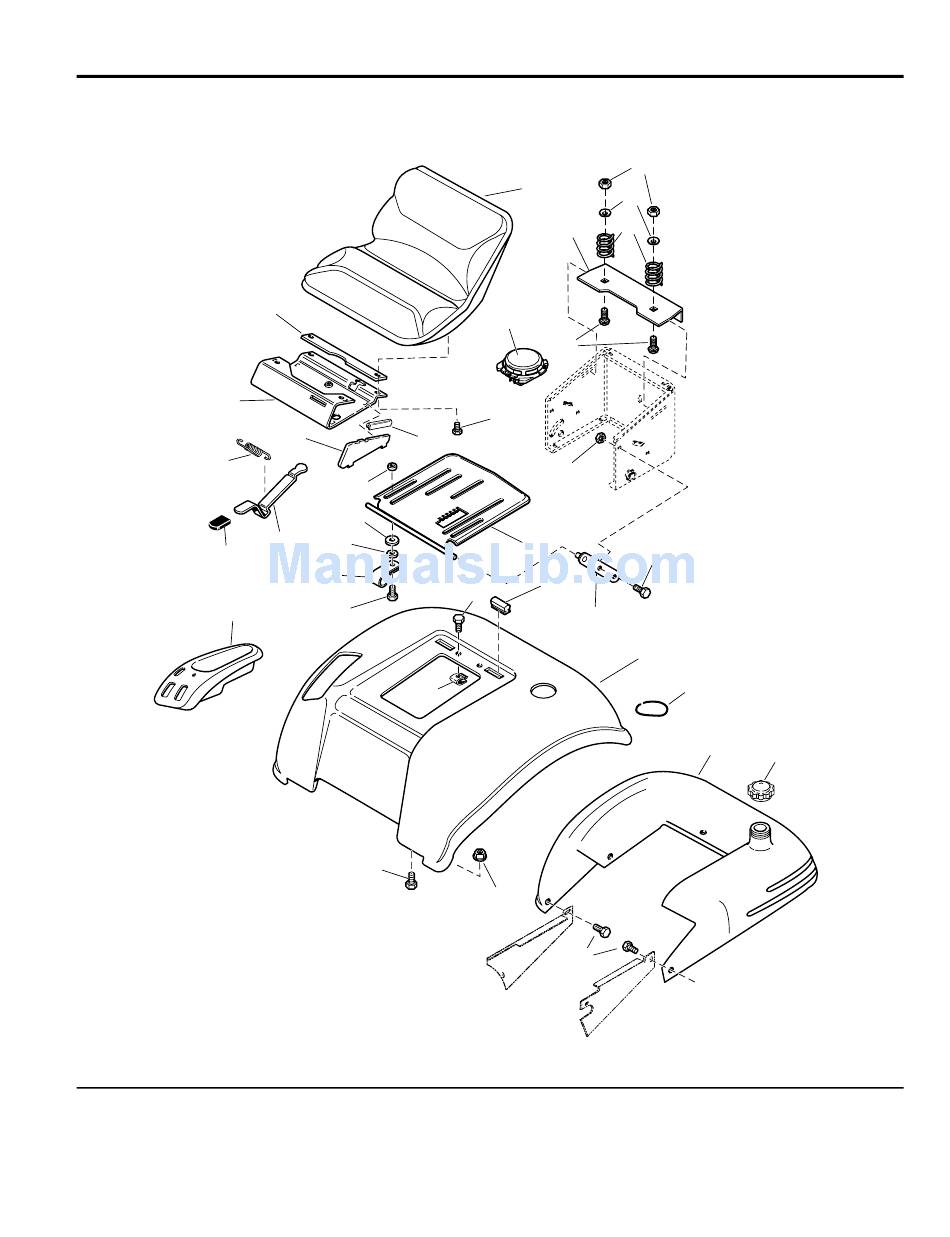

Seat Deck & Fuel Tank Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
12
10
9
1
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
