Lioncast LM60 User Manual

Pro gaming mouse
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LM60
P RO GA M IN G MOUSE
U SE R M AN UA L
E N G LI S H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lioncast LM60

Summary of Contents for Lioncast LM60

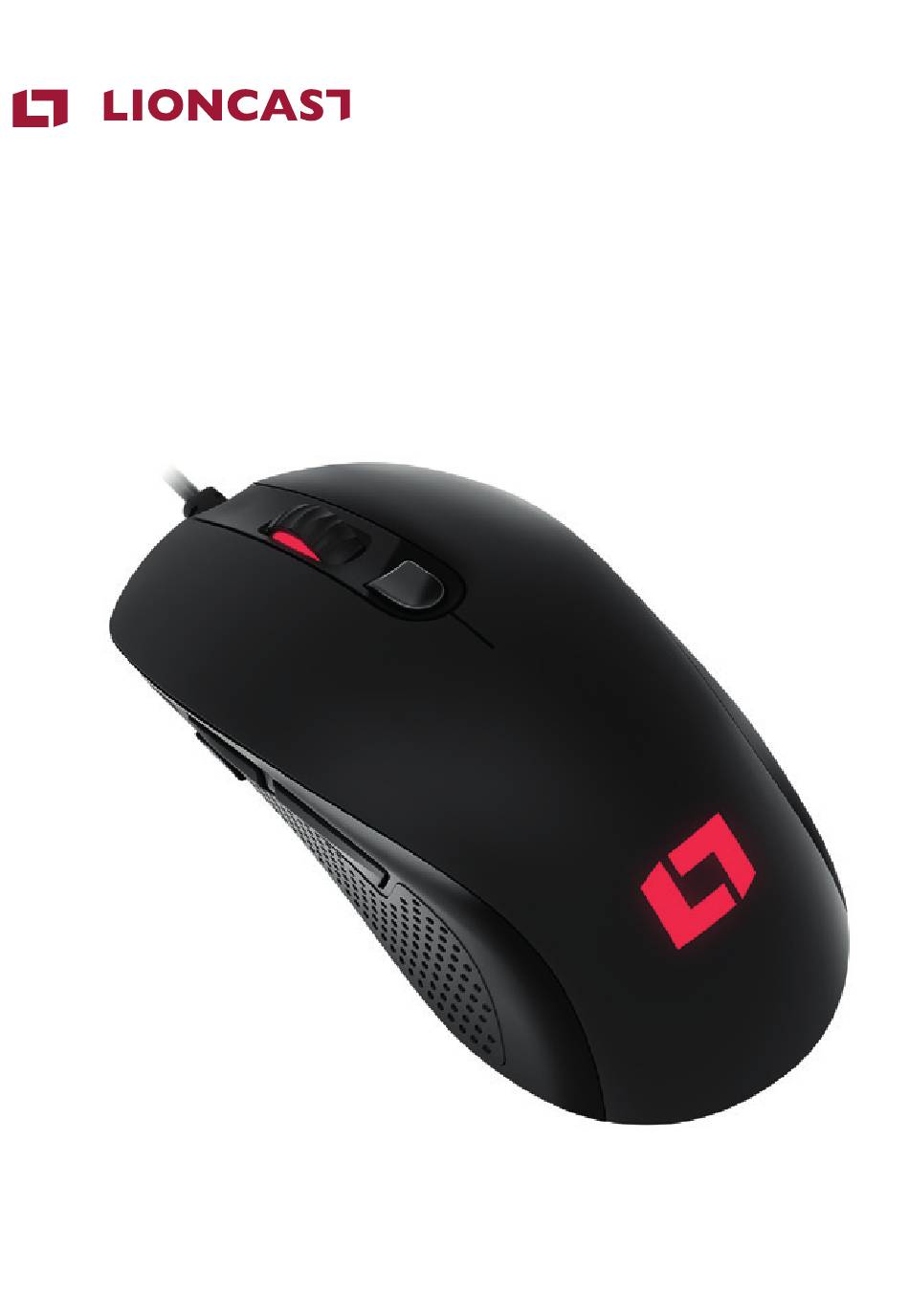

  • Page 1 LM60 P RO GA M IN G MOUSE U SE R M AN UA L E N G LI S H...
  • Page 2 LION C A S T LM 6 0 PRO G AMI NG M O US E The LM60 is the first absolute high-end gaming mouse from Lioncast. We use only the best components available on the market. The optical PixArt PMW3389 sensor ensures the finest, flawless scanning on almost any surface.

  • Page 3: Package Contents

    PACK AGE C ONT ENTS » LM60 PRO Gaming Maus » Software available for download at: www.lioncast.com > Support > LM60 SYS T E M RE QU I RE M ENTS » PC with a free USB port » Windows 10 / 8 / 7 »...
  • Page 4 BUTTO N S Left mouse button Special button Right mouse button Fourth mouse button Mouse wheel / third button Fifth mouse button DPI button...

  • Page 5: Mo Use Co Nf I G Ur Ati O N

    We recommend downloading and using the software to configure the mouse. This lets you configure profiles, LED colors, DPI stages, and many other button assignments. Installing the Lioncast LM60 Software: Plug the mouse into a free USB port on your computer. Download the software at: www.lioncast.de >...
  • Page 6 SOFTWAR E - B UTTONS TA B Here the button assignments of the LM60 can be configured and saved by cli- cking „Save“. In addition, there is a button-shift feature which activates the second function of each button. If this is assigned to a button (e.g. to button 7), the second function...
  • Page 7 SOFTWAR E - B UTTONS TA B Disable Button Scroll right Deactivates a button. Scrolls one step right. Default Custom Hotkey Standard function for a button. Assigns a keyboard combination (e.g. Shift + A or CTRL + SHIFT + A) Mouse functions Left click DPI (+)
  • Page 8 SOFTWAR E - B UTTONS TA B Macro Multimedia Choose an Macro which has already Multimedia and audio functions been programmed. Profiles Button-Shift Switches or cycles through the Switches all mouse buttons to their profiles in various ways; this corre- second function as long as the but- sponds to the profile selector on the ton is held.
  • Page 9 SOFTWAR E - SE NS OR TA B DPI Settings This lets you configure the sensor settings. Decide whether you would like to use 1, 2, or 3 DPI levels. Each DPI level can be assigned to 50-16,000 DPI. You can even assign different DPI settings to the X and Y axes.
  • Page 10 SOFTWAR E - SE NS OR TA B Sensor Lift Off Distance Choose how quickly the sensor stops tracking when the mouse is lifted. Low: the mouse pointer stops moving with the tiniest lift of the mouse. High: the mouse pointer takes somewhat longer to react when the mouse is lifted.
  • Page 11 SOFTWAR E - LI G H TS TAB This lets you separately configure illumination for the different illumination ele- ments. Mode Constant: The assigned colors glow steadily. Wave: The assigned colors become alternately dimmer and brighter Pulse: The assigned colors blink on and off Color flow: The assigned colors are ignored and all LED‘s cycle through the entire color spectrum.
  • Page 12 SOFTWAR E - LI G H TS TAB Sleep Lets you determine how soon the illumination turns off when not in use Speed Sets the speed of the pulse effect Strength Sets the LED brightness...
  • Page 13 SOFTWAR E - M AC RO TA B With the Macro manager, a series of commands is executed with perfect timing by clicking a mouse button. This is useful for all possible applications, so you can use your imagination to find the best ways to use it in your games. Since this is a rather complex topic, it will take some time to become familiar with it.

  • Page 14: Delay Options

    Test your macro, for example in Windows Editor. Open the editor, click in the window, and press the mouse button to which the macro is assigned. Now the macro should run and be visible in the editor. Lioncast tip: Mouse buttons also can be recorded in real time. Delay Options With the options at the upper right, you can automatically insert delays between button presses.

  • Page 15: Repeat Options

    SOFTWAR E - R E I TER M ACRO Repeat Options With the „Repeat Macro“ function you can trigger the Macro multiple times successively. „Run Macro while pressed“ runs the Macro as long as you hold the mouse button. „Repeat until button is pressed again“ lets the Macro run until you click the button a second time.
  • Page 16 SOFTWAR E - P ROF I L E A ND UPDAT ES Profiles Profile settings are found at the bottom. You can choose from five profiles using the drop-down menu, and you can also rename them. In addition, you can save profiles to your computer, delete them, or load them from your hard drive.
  • Page 17 SOFTWAR E - P ROF I L E A ND UPDAT ES In the settings under „Updates“ the factory firmware version is displayed as 1.00. Click „Update“: A firmware update pop-up window will appear. Click „Update“:...
  • Page 18 SOFTWAR E - P ROF I L E A ND UPDAT ES Wait until the progress bar completes. During the flash process, the mouse LED flashes and the cursor cannot be moved. DO NOT DISCONNECT THE MOUSE FROM THE PC DURING THE UPDATE! A message will appear in the Update pop-up as soon as the firmware update is complete.

  • Page 19: Factory Default

    SOFTWAR E - P ROF I L E A ND UPDAT ES Factory Default Clicking „Default“ resets the mouse and all settings to the original factory con- dition. Note: All profiles will also be reset, so don‘t forget to save them to your PC before resetting.
  • Page 20 LM 6 0 | G A M I N G M OUS E Color: Black Art.-No.: 15551 Lioncast is a registered trademark of ® 4 250541 921777 Ströer Products GmbH | Torstr. 49 | 10119 Berlin REACH...
