Summary of Contents for Lioncast LM45 Wireless

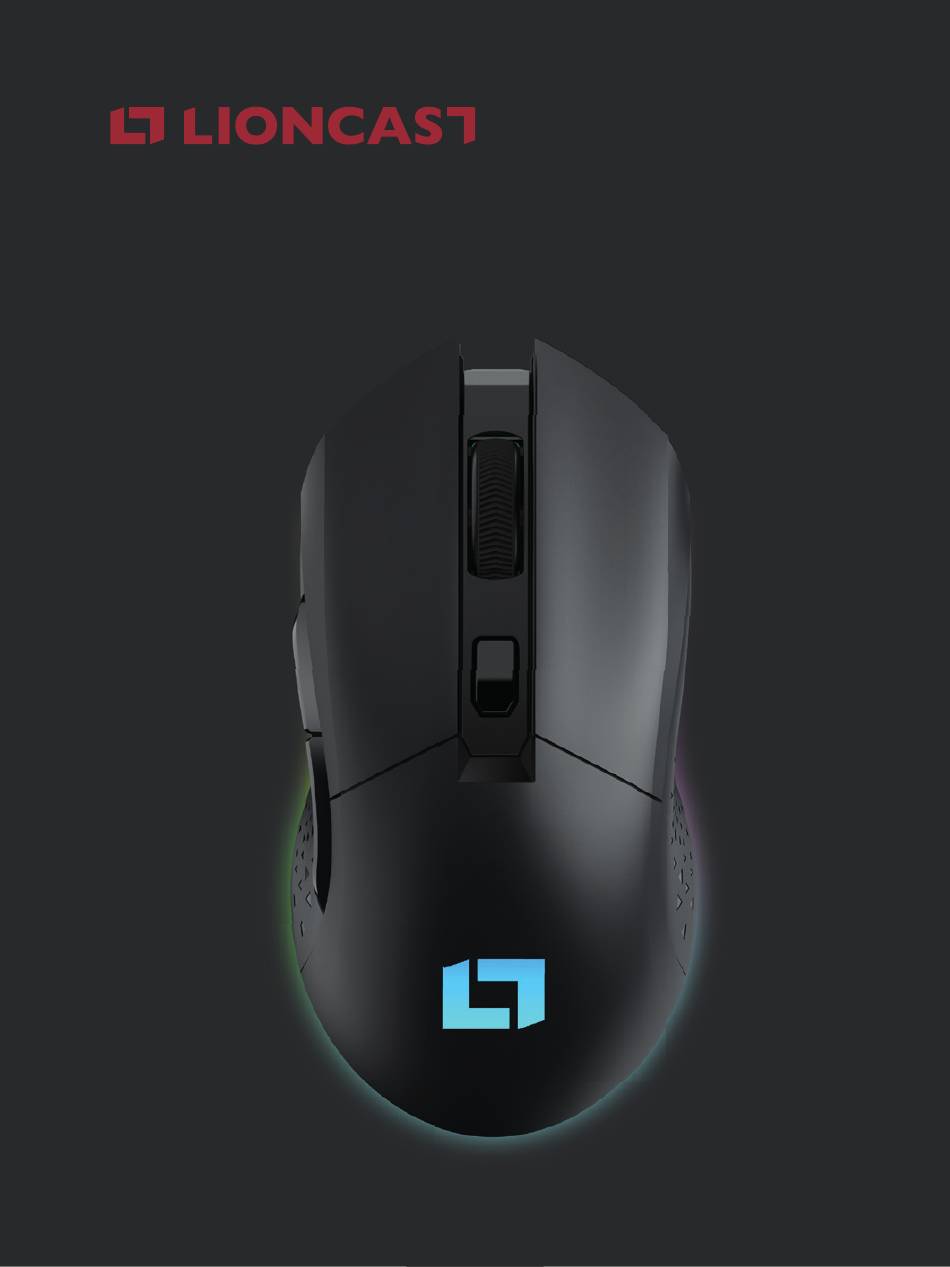

- Page 1 LM45 Wireless Wireless Gaming Mouse...
- Page 2 Lioncast LM45 WL Wireless Mouse The LM45 WL is the first wireless gaming mouse from Lioncast. The optical PixArt sensor ensures the best, most flawless scan- ning on nearly any surface. With its speed of 250 IPS, accelera- tion of up to 40G, and scanning rate of up to 18,000 FPS, it‘s ready to precisely respond to all of your movements.
-
Page 3: System Requirements
LM45 WL Wireless Gaming Mouse » USB Type-A dongle » USB-C to USB-A cable » Software available for download at www.lioncast.de > Support > Gaming Mouses > LM45WL System Requirements » PC with free USB port » Windows 10/8/7 »... - Page 4 Technical Details Repeat rate 125/250/500/1000 Hz Lighting On/off + different modes Battery indicator Low: Logo flashes red / On charge: Logo flashes yellow / Fully charged Logo is green Battery capacity 930mAh / 3,7V Power consumption max (with LED) 40mA Power consumption min (no LED) 15mA...
- Page 5 Buttons Right mouse button Left mouse button Mouse wheel / third mouse button Fourth mouse button DPI button Fifth mouse button...
- Page 6 Setting polling rate Hold the mouse wheel and right mouse button for 3 s. LED will glow white: 1x: Power-saving mode (125 Hz) 2x: Office mode (250 Hz) 3x: Gaming mode (500 Hz) 4x: E-sports mode (1000 Hz)
- Page 7 Cable & power supply USB Type-C cable USB Type-A dongle Lioncast tip: We recommend first connecting the mouse directly to the PC with the cable to charge it completely.
- Page 8 Turning on / LED mode Storage USB dongle Switch on and off: Switch to turn the mouse on and off LED color change: Press briefly to switch through: Color gradient > Fading red > Fading red II > red...
-
Page 9: Wireless Mode
Wired mode & wireless mode Port for Cable connection Cable mode Connect the mouse directly to an available USB port on your PC using the included USB Type-C to USB Type-A cable. Wireless mode Plug the USB Type-A dongle into a free USB port of your PC. Once the USB Type-A dongle is recognized by the PC, press the pairing button on the bottom of the mouse to allow the mouse to connect to the dongle. - Page 10 Profile & Mouse Configuration Standard-Konfiguration: 1200 2400 6400 18000 DPI-Stage Operating the mouse (without software): When the mouse is used without software, the standard set- tings apply (see above). The DPI setting can be changed with the DPI button on the top side. We recommend downloading and using the software to con- figure the mouse.
- Page 11 Software (for Windows PCs only) Installation of the Lioncast LM45 WL software: Plug the mouse into a free USB port on your computer. Download the software. www.lioncast.de > Support > Gaming Mouses > LM45WL Run the installer and follow the instructions on the screen.
- Page 12 If you have any questions about the product or if you encounter any problems during operation or similar, please first contact the following office by e-mail: info@lioncast.com Lioncast is a trademark of Stage10 GmbH | Oranienburger Str. 45 | 10117 Berlin | Germany...
- Page 13 Disposal Dispose of packaging Dispose of the packaging according to type: • Cardboard and carton to waste paper • Foil to the recyclables collection Dispose of device (Applicable in the European Union and other European count- ries with separate collection systems for recyclable materials) Old devices must not be disposed of with house- hold waste! If your adapter can no longer be used, every consumer is required by law to dispose of old...
- Page 14 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must ac- cept any interference received, including interference that may cause undesired operation.
- Page 15 LM45 Wireless Wireless Gaming Mouse Article Information Art.-No.: 15648 EAN: 4 250541 925195 FCC-ID: 2AONQ-15648 Lioncast® is a registered trademark of Stage10 GmbH Oranienburger Str. 45 10117 Berlin Germany Made in China...
