RC2400/RC2400HP-ZNM-DK-USB Demonstration Kit
Quick Start
Intro

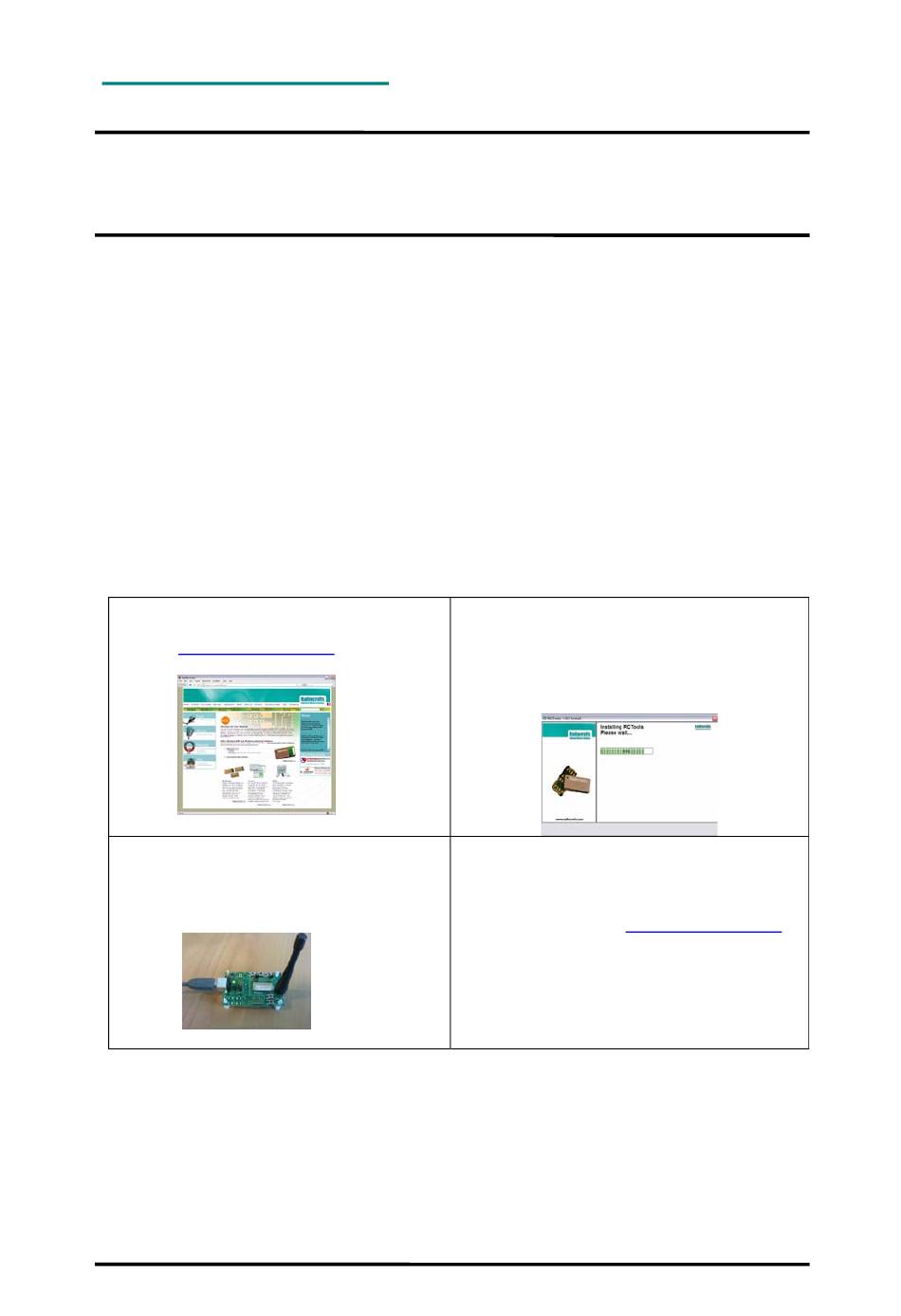

The Demonstration Kit from Radiocrafts is designed to make it easy for the user to evaluate
the module, develop an application and build prototypes very quickly.
There are two paths the final module solution:
1. Use the demo boards/module with preloaded ZNM functionality
2. Write, compile and download your own FW to the module
Included in the kit
-
3 Demo Boards including ZNM FW
3 Antennas
-
3 USB cables
-
1 CC-debugger (programmer/debugger)
-
How to get started
Please follow this guideline to ensure that the USB driver is properly installed on your
computer before you connect the demo board to the PC.
1. Download the latest version of
RCTools-ZNM from
www.radiocrafts.com
3. Connect the demo boards to the
PC after installing the RCTools PC
software. Connect the antenna or
connect to your test equipment.
©2010 Radiocrafts AS
RC2400/RC2400HP-ZNM-DK-USB
RC24xxDK-USB Demonstration Kit Quick Start (rev. 1.3)
2. Install the RCTools-ZNM as
described in the RCTools Installation
Guide. The USB Driver is
automatically installed together with
RCTools-ZM.
4. You are now ready to use the Demo
Board. Radiocrafts offer a powerful
RCTools PC suite, but any terminal
program using COM ports can also
be used. Visit
www.radiocrafts.com
to download relevant documents.
