Beka Hospitec SENTA PUR L User Manual

Hide thumbs Also See for SENTA PUR L:
Table of Contents

Advertisement

Quick Links

Edition V 1.6 EN
Technical Changes reserved
09.09 .2014
User Manual
for
SENTA PUR L lift
Part No. 278700

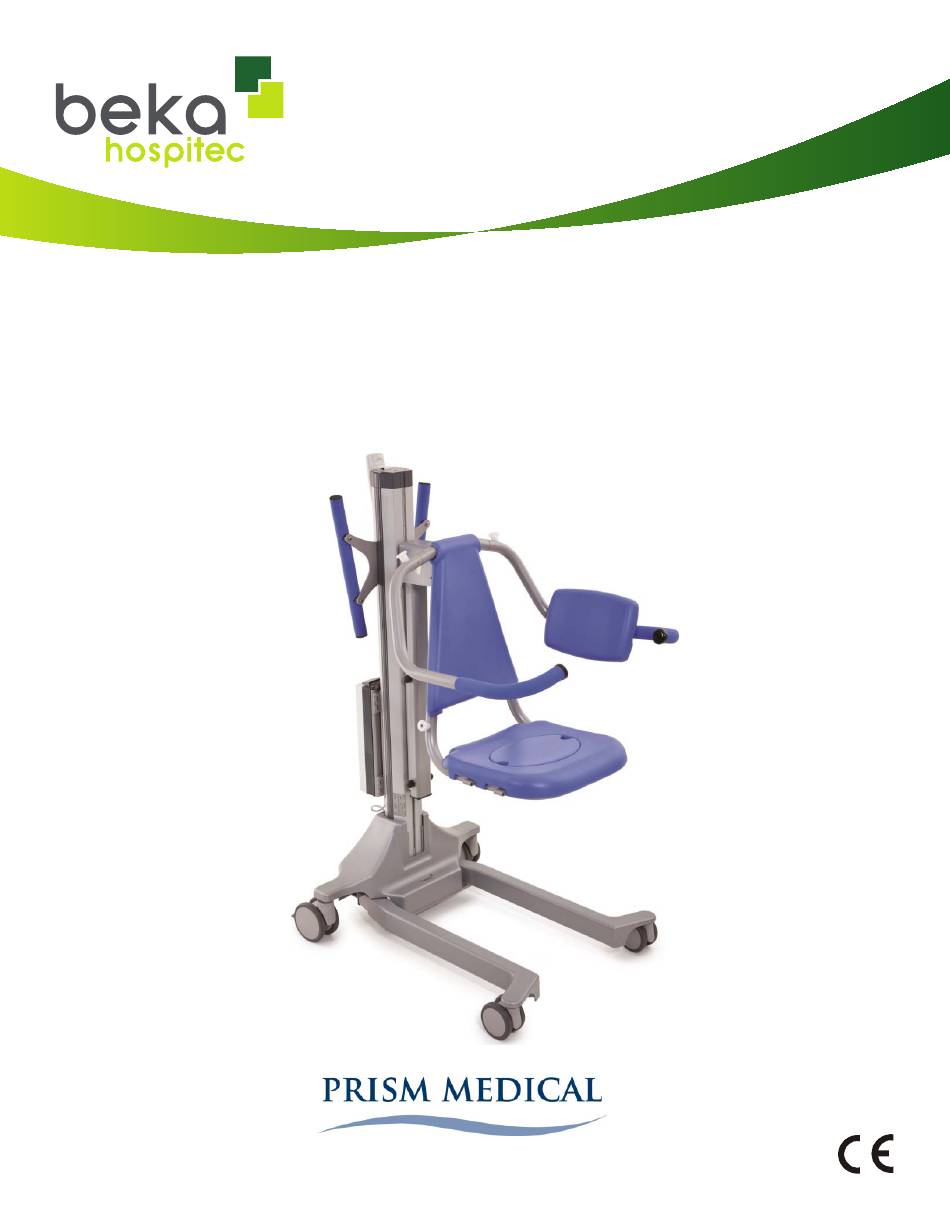

Illustration shows
SENTA PUR L lift
Part No. 278700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENTA PUR L and is the answer not in the manual?

Questions and answers

Related Manuals for Beka Hospitec SENTA PUR L

Summary of Contents for Beka Hospitec SENTA PUR L

  • Page 1 User Manual SENTA PUR L lift Part No. 278700 Illustration shows SENTA PUR L lift Part No. 278700 Edition V 1.6 EN Technical Changes reserved 09.09 .2014...

  • Page 2: Table Of Contents

    3. Safety instructions 4. Operation instructions 4.1 Before Use 4.2 Manual Emergency Lowering 4.3 SENTA PUR L lift with wings 4.4 SENTA PUR L lift 4.5 Function of the Safety Arm Rests 4.6 Battery Pack position 4.7 Detachable Lifter for Lying Patients Wing 5.
  • Page 3 Prism Medical Ltd. V1-2014 Contents 8. Operating the SENTA PUR L lift 8.1 Patient Pickup 8.2 Manual Emergency Lowering 8.3 Contact Partner for Technical Information 9. Cleaning / Disinfection 9.1 Cleaning 9.2 Disinfection 9.3 Sterilisation 10. Disposal 10.1 Disposal of the Packing Material 10.2 Product Disposal...

  • Page 4: Preface

    5. Installations, upgrades, changes or repairs are only permitted by BEKA Hospitec or by authorized BEKA Hospitec distributors. In the case of repairs or modifications to BEKA Hospitec products that are not done by BEKA Hospitec or by authorized BEKA Hospitec distributors, all warranties for the repairs or modifications as well as for the device and device functionalities connected with these repairs or modifications, will expire immediately.

  • Page 5: Introduction

    The expected operating life of the combo bath lift is approx. 8 years. 2.2 Duration of treatment The SENTA PUR L lift is intended to be used for a limited amount of time without getting in contact with injured skin. Please Note Side effects caused by this treatment are not known.

  • Page 6: Safety Instructions

    • Operating instructions - Read this manual before using the Senta Pur L lift for the first time. Please keep these operating instructions near the device for later use. • Product shall only be operated by trained personnel.
  • Page 7 Please never insert any foreign objects into the device. This may create a safety hazard as well as a life-threatening electrical shock or damage to the device. • Safety checks A “Safety Check” need to be carried out on the Senta Pur L lift every 12 months in conjunction with maintenance work. See section 11. • Accessories Operate the SENTA PUR L lift with original accessories only.

  • Page 8: Operation Instructions

    Triggering the emergency lowering function: The SENTA PUR L lift is equipped with an emergency lowering function. The hole in the cover plate on the lifting pole allows, through using the 6 mm allen key that comes with the product, to lower the respective patient manually.

  • Page 9: Senta Pur L Lift With Wings

    4.3 SENTA PUR L lift with wings SENTA PUR L lift consists of three parts, to facilitate positioning at any side of the patient’s bed. When the lift is positioned at the patient’s bed, the two wings (left and right) are folded up or down to allow back and legs of the patient to rest comfortably (see illustration 3).

  • Page 10: Function Of The Safety Arm Rests

    Prism Medical Ltd. V1-2014 4.5 Function of the Safety Arm Rests The two safety arm rests can be folded or removed completely, independently from each other. In order to fold the safety arm rest turn them towards the back, as shown on illustration 5. To remove a safety arm rest turn it until the two red marking on the safety arm is aligned with the red mark on the socket (see illustration 6).

  • Page 11: Detachable Lifter For Lying Patients Wing

    Prism Medical Ltd. V1-2014 4.7 Detachable Wings for the SENTA PUR L lift Use the SENTA PUR L lift with wings for lying patients. Detaching: • Position the wing to be detached from the lift into its end position and hold it.

  • Page 12: Senta Digital Scale Sl

    This is a non-calibrated scale. Calibration can be done in the units N, kN, g, kg, t or lb. Depending on the design SENTA PUR L can weigh persons with a weight of up to 150 kg.

  • Page 13: Safety Instructions Digital Scale Sl

    • Preparing the weighing process: Position the resident on the SENTA PUR L lift. Make sure that the resident floats freely and the weighing process is not impaired through that the resident still rests partly on e.g. a chair / wheel chair / bed.

  • Page 14: Combo Bath Lifter With Calibrated Scale

    Reviewing whether settings meet legal regulations should be carried out on a case-by-case basis. BEKA Hospitec EDI 03 weighing device is a highly precise digital weighing indicator based on the state-of- the-art Sigma-Delta A/D technology. This guarantees for a precise and fast weight indication.

  • Page 15: Operating The Scale

    Prism Medical Ltd. V1-2014 • Cleaning: Never use aggressive detergents or solvents. Clean with moist cloth and soap suds. • Area of Application: The EDI 03 weighing indicator is not meant to be used in explosion-prone areas. The device has the IP X5 protection type.

  • Page 16: Stable Error" Error Message

    Prism Medical Ltd. V1-2014 Button Description If a printer is connected and the printing function has been activated in the menu, <PRINT> will read a weight value, the display will read PRINT and the data will be sent to the printer. If no printer is connected, the device will wait for 10 sec.

  • Page 17: Live Wt

    Prism Medical Ltd. V1-2014 6.6 LIVE WT This function allows persons to be weighed who keep moving causing their weight to fluctuate heavily. • If <LIVE WT> is pressed briefly then this function is identical to <HOLD>. • Keep <LIVE WT> pressed for 2 seconds to switch between person weighing and normal weight display.

  • Page 18: Error Message During Operation

    Prism Medical Ltd. V1-2014 6.7 Error Message during Operation Error Description Measure (U - - - - ) Scale is under loaded. Increase weight or switch scale off and on again. (O - - -- -) Scale is overloaded. Reduce weight. (TARE) Tarring attempt outside allowed range Change weight.

  • Page 19: Diagnosis Error Messages

    Prism Medical Ltd. V1-2014 6.9 Diagnosis Error Messages Error Description Rectification E0001 Line voltage too low. Check E0002 Line voltage too high. Check E0010 Temperature too high / low Check environment (-10 to +50°C ambient). E0020 Scale division not correct (target Change value between 100 and 30,000 divisions).
  • Page 20 Prism Medical Ltd. V1-2014 Charging process: 1. Plug battery charger into the power outlet. 2. Plug the battery charger’s connector into the charging socket, right hand side below the scale cover at the Senta lift. 3. Charging indicator shines red, battery pack is being charged. Charging time of the complete battery pack is 16 hours (battery pack capacity is 2700 mAh, sufficient for approx.

  • Page 21: Battery Device 24 Volt

    7.1 Power Supply for the SENTA PUR L lift SENTA PUR L lift is equipped with a 24 V battery system. SENTA PUR L lift does not need to be connected to the power supply system in order to operate. When charging the battery alwaysensure power supply is in compliance with local requirements.
  • Page 22 Prism Medical Ltd. V1-2014 Illustration shows Illustration shows Wall mount charger Coiled cord Part No. 278104 Handle with trigger Illustration shows: SENTA PUR L Battery Part No.: 280680...

  • Page 23: Hand Control Senta

    Control box CBJ 2: SENTA PUR L lift is equipped with a 24 V battery system. In order to remove the battery unlock the battery by using the trigger in the battery handle. To insert the battery place the battery in the control...

  • Page 24: External Charging Device / Wall-Mounted Station Chj2

    The battery as well as the control box must not be opened by the customer. Repairs shall only be carried out by BEKA Hospitec or by BEKA Hospitec authorized companies. Re-charge empty batteries immediately, if possible, since this will extend their life-cycle. Re-charge stored batteries at least every 6 months (a possible deep discharge may destroy the battery).

  • Page 25: Operating The Senta Pur L Lift

    8. Operating the SENTA PUR L lift The seat of the SENTA PUR L lift is moved up or down by using the provided hand control. Symbols mark the respective movement direction. The steering rollers at the back can be locked in position.

  • Page 26: Manual Emergency Lowering

    Triggering the emergency lowering: The SENTA PUR L lift is equipped with an emergency lowering function. Find the hole in the end cap of the lifting pole to lower the respective patient pickup manually by using the provided 6 mm allen key.

  • Page 27: Cleaning / Disinfection

    9. Cleaning / Disinfection 9.1 Cleaning the SENTA PUR L lift Clean the SENTA PUR L lift with a soft, lint-free cloth. For thorough cleaning use a cloth moistened with soap suds. For disinfection you can moisten the cloth with isopropyl-alcohol solvent.

  • Page 28: Disposal

    As the manufacturer, BEKA Hospitec GmbH will provide more information on environment compatible disposal. 11. Safety Check A safety check needs to be carried out with the SENTA PUR L lift every 12 months along with maintenance. Safety checks and maintenance must be documented.

  • Page 29: Troubleshooting And Customer Support

    Prism Medical Ltd. V1-2014 12. Troubleshooting / Customer support 12.1 Troubleshooting Guide Problem with lift Solution Lift does not work up and down. a) Check that the emergency stop button is not pushed. b) Check hand control and all cables are connected correctly.

  • Page 30: Customer Support

    Check the battery charge state. and the indicator lamp (red) light up. 12.2 Customer Support Contact your sales partner’s customer support or the manufacturer if the SENTA PUR L lift does not work as intended and it is not resolved with troubleshooting (section 12.1).

  • Page 31: Appendix

    Prism Medical Ltd. V1-2014 Prism Medical Ltd. V1-2014 13. Appendix 13.1 Technical data Dimensions and Weights Length arms open: 86.0 cm Length arms closed: 94.0 cm Width: 71.8 cm Height: 137.5 cm Height min: 47.5 cm Height max: 117.5 cm Width wing: 43.0 cm Length wings open:...
  • Page 32 Between -15° C and 40° C Relative humidity: Non-condensing between 10% and 80% Atmospheric pressure range: 500 – 1100 hPa BEKA Hospitec GmbH Am Rübenmorgen 3 D-35582 Wetzlar Fon: +49(0)641-9 22 20 - 0 Fax: +49(0)641-9 22 20 - 20 info@beka-hospitec.de www.beka-hospitec.de...

  • Page 33: Dimensions

    13.2 Dimensions SENTA PUR L lift...

  • Page 34: Icons And Symbols Used

    Prism Medical Ltd. V1-2014 13.3 Icons and Symbols used Accompanying documents / Observe operating manual. Warning of a hazard area. Application part “Type B” according to DIN EN 60601-1. No domestic waste. Do not put the treatment system and packing materials into the domestic waste. CE mark according to 93/42/EEC for medical products.

  • Page 35: Declaration Of Conformity

    Prism Medical Ltd. V1-2014 13.4 Declaration of conformity The declaration of conformity of the lifting tub will be provided by the manufacturer BEKA Hospitec GmbH upon your request. 13.5 Spare Parts and Accessories for SENTA PUR L lift Spare Part No.
