MR MESSKO MTO Technical Data Manual

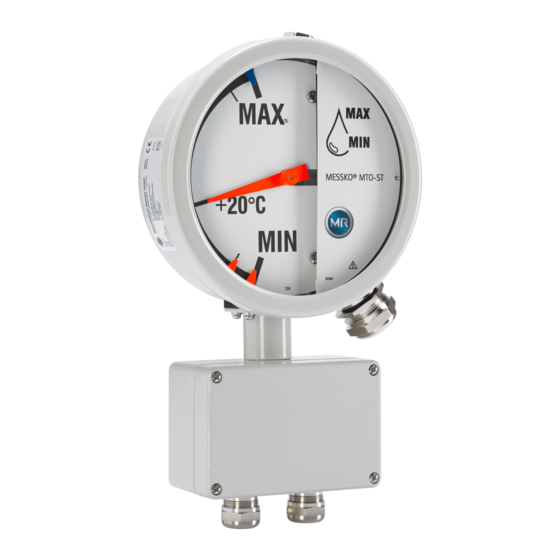

MESSKO® MTO
Oil Level Indicator
Technical Data
1
2
1
4
5
6
7
Messko GmbH 2018

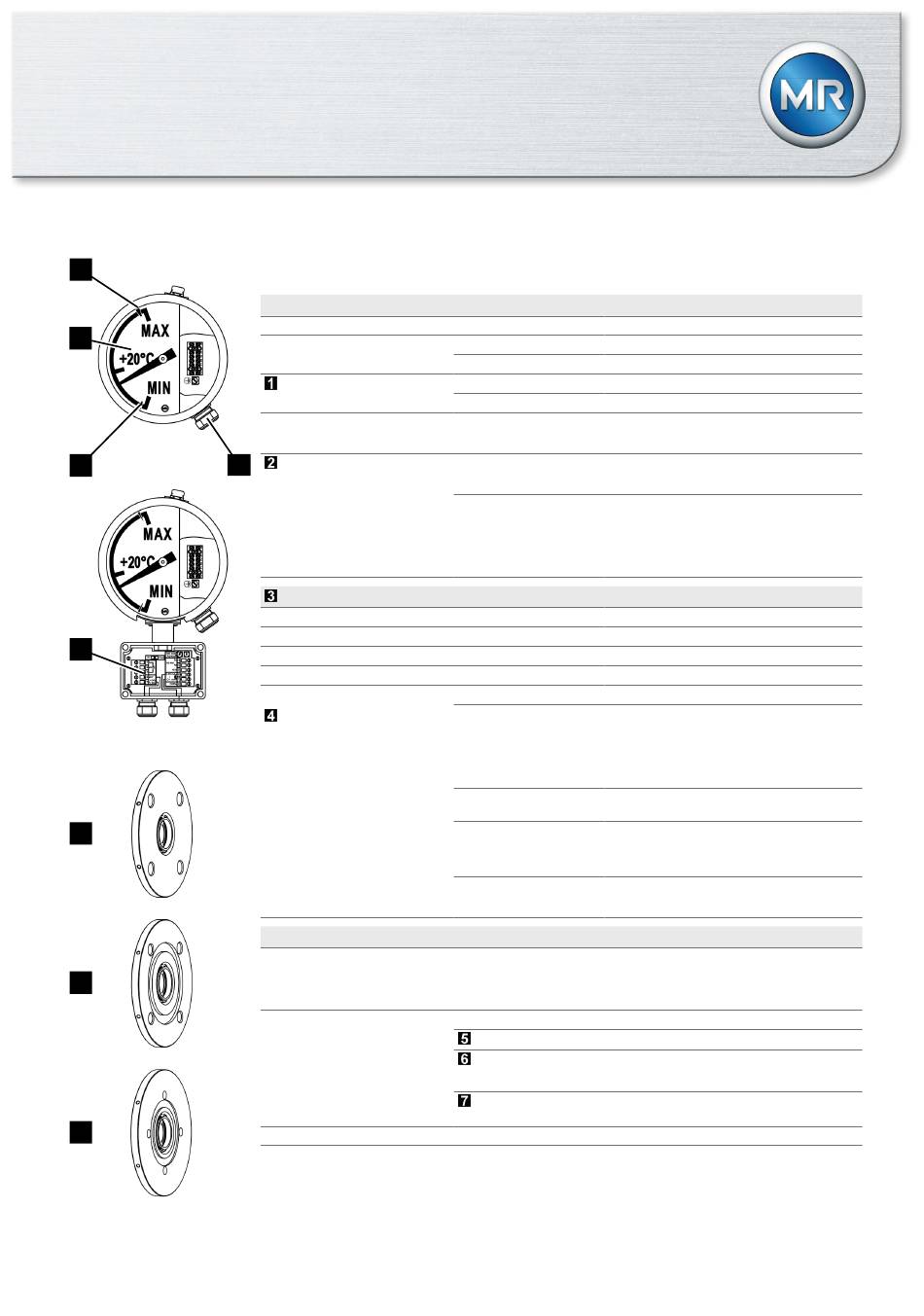

Product variants

This technical document contains detailed information about the technical properties of the product. If you
would like to place an order, please use the MESSKO inquiry and order specification, which you can also
find on our website http://www.reinhausen.com below the respective product.
Limit value switch
Without switch
Non-adjustable 15 A switch
Adjustable 5 A switch
Switching points
Scale marks
3
Electrical Connection
Cable screw connection
ANSI plug
NPT 1/2" internal thread
MIL plug
Optional:
TT30 box with analog output
Design types
Housing color tone
Mounting flange
Optional
(MTO-STF160)
For details, see the micro-switch table, page 3
(MTO-ST160)
For details, see the micro-switch table, page 3
Standard: 5° before MIN and 5° before MAX; others available
(For adjustable switches: minimum distance >10° between switches)
Standard: MAX...+20°C...MIN
Others available
Scale/shade color
1 x M25x1.5
Cable length available in a variety of lengths
For details, see the technical data, page 4, and graphics, page 5/6
Analog output
Digital output
K1 micro-switch
K1 switching point
RAL 7033 cement gray
RAL 7038 agate gray
RAL 7032 gravel gray (only for sheet steel housing)
For details, see the technical data, page 3
Standard flange Ø 134 mm [Ø 5.28"], bolt circle Ø 102 mm [Ø 4.02"]
RM* flange Ø 134 mm [Ø 5.28"], bolt circle Ø 101.6 mm [Ø 4.000"]
*) Version for the US market
NAT/DS flange Ø 134 mm [Ø 5.28"], bolt circle Ø 79.38 mm [Ø
3.125"]
Offshore model
5784996-00 EN
max. 3 units
max. 3 units
Black on white dial face
White on black dial face
Yellow on black dial face
Others available
1 x M25x1.5 WADI (watertight) available
0...1 mA
0...20 mA
4...20 mA (error signal < 3.6 mA)
4...20 mA (error signal > 22 mA)
RS485 interface with standard ASCII proto-
col available
Switching function:
Rising level (NO/NC) or falling level
(NO/NC)
Standard at 20 °C
Others available
MESSKO® MTO 1
