ASL INTERCOM T2 Manual

Floor grinding machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

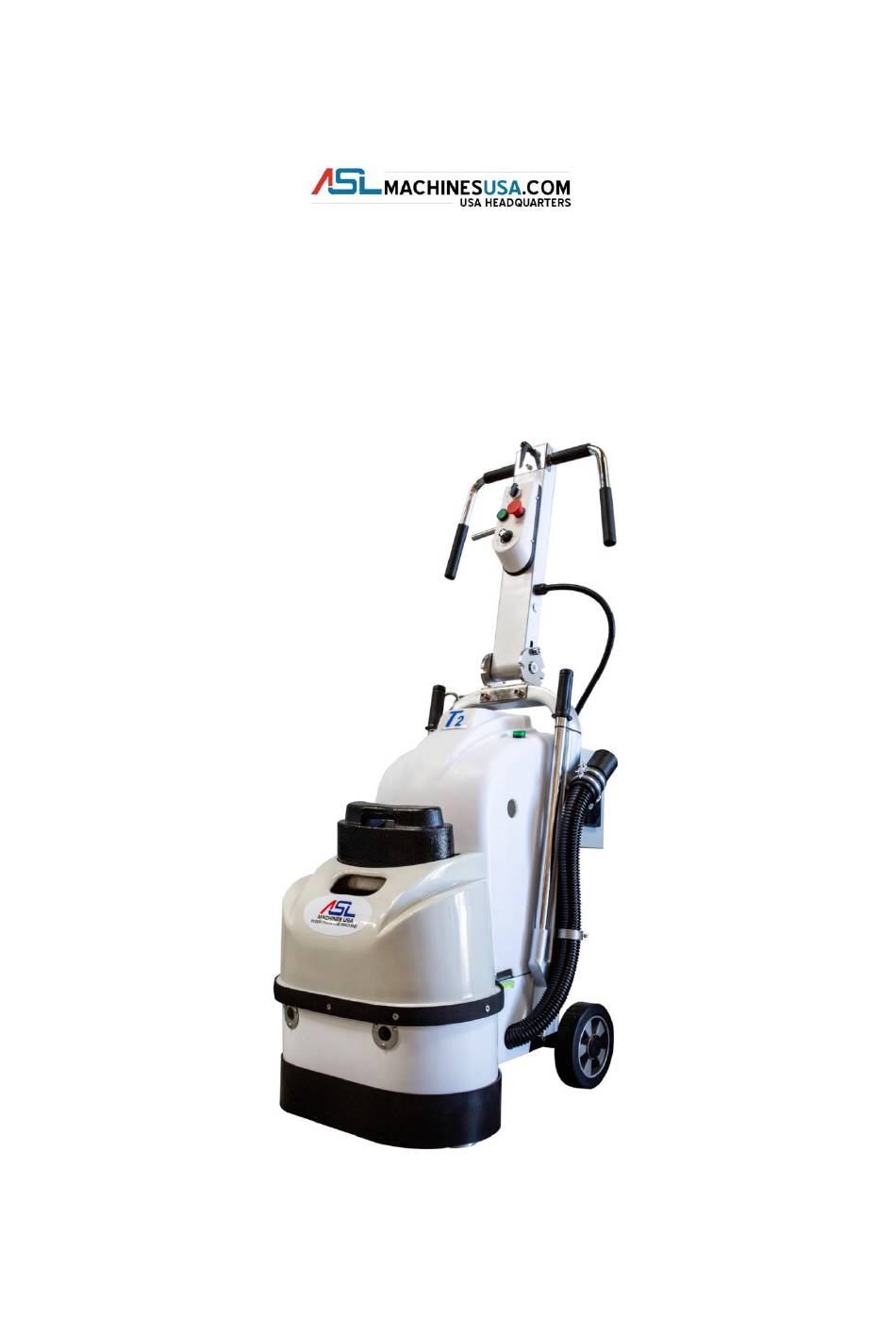

ASL T2 FLOOR GRINDING MACHINE
MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2 and is the answer not in the manual?

Questions and answers

Related Manuals for ASL INTERCOM T2

Summary of Contents for ASL INTERCOM T2

  • Page 1 ASL T2 FLOOR GRINDING MACHINE MANUAL...

  • Page 2: Table Of Contents

    Contents Preface 3 1.1 Safety Guide 1.2 Precautions 2.1 Purchase Check 2.2 Nameplate and Model Description 2.3 Technical Parameter Description 2.3.3 Main Product Feature 2.3.4 Product Design Concept 7 3.1 Equipment Operation Method 7 3.2 Equipment Storage after Use 7 3.3 Instructions for using Floor Grinding Machine 3.4 Equipment Dismounting Steps and Precaution 4.1 Notices for Wiring...

  • Page 3: Preface

    Preface Thank you for purchasing the ASL-T2 floor grinding machine. The ASL-T2 floor grinding machine is the newest generation of equipment independently developed by ASL. This machine is multi-function integrating grinding, renovating, polishing, and cleaning into one. The machine greatly improves surface preparation and maintenance efficiency of concrete, stone and epoxy floor so as to meet the high-standard requirements of floor surface treatment and maintenance as well as saving the contractor time and money.

  • Page 4: Safety Guide

    1.1 Safety Guide [1]: The operator must wear water-proof and insulating work shoes and gloves, and barefooted operation is prohibited to prevent personal casualty from electric shock. [2]: The external connecting wire must be more than 4m2 and must be grounded to prevent electric shock. [3]: Before using the equipment, you must check whether the power wire is damaged or aging.

  • Page 5: Nameplate And Model Description

    [3]: All ASL-T2 floor grinding machines have passed strict quality inspections. Please check for certificate of quality, product user manual and warranty card. [4]: Check whether there are any damages inside of the machine. If there is obvious damages, please don’t operate and use the machine, and timely contact our company or the dealer to avoid accidents.

  • Page 6: Main Product Feature

    Water Tank Weight 306 LBS Dimension 950MM X 500MM X 700MM 2.3 Product Description 2.3.1 Product Structure Description 2.3.2 Main Product Feature [1]: U-handle, which can rotate around 360°, and is safe and reliable with convenient operation conforming to operator ergonomics.

  • Page 7: Equipment Operation Method

    grinding, polishing and refurbishing into one so as to meet the grinding, polishing and refurbishing requirements of various kinds of floors. Chapter III Operation Instruction 3.1 Equipment Operation Method 3.1.1 Equipment Operation Preparation [1]: Prior to starting, check whether the power switch is in the off state to ensure the safety. [2]: First adjust the handle in the line-style, and then hold the handle and with one foot stepping on the step bar and press downwardly;...

  • Page 8: Equipment Storage After Use

    3.2 Equipment Storage after Use [1]: Place the handle into the vertical position, disconnect and place the power wire in dry place. [2]: Dismount the small grinding head from the machine, clean and dry them. [3]: Use a half-dry clean rag to clean the machine. Pay attention to cleaning the machine surface after being used in wet environment.

  • Page 9: Notices For Wiring

    Chapter IV Equipment Wiring and Inverter Reset Wiring the equipment, please be sure to operate strictly as per the following instruction, so as to prevent unnecessary loss. 4.1 Notices for Wiring [1]: If necessary self-wiring, wiring must be operated under the instruction of professional electricians or the technicians of the manufacturer.

  • Page 10: Inverter Reset

    For motor wiring detail, please refer to Part B in Figure 18. The indicating lights wiring details are as shown in Part D of Figure 18. 4.4 Inverter Reset When the equipment is shut down because of over-low voltage or overload, please turn off the power supply. Turn on the power supply again after three minutes, and the equipment will recover to normal.

  • Page 11: Maintenance And Overhauling

    Figure 20 Chapter V Equipment Maintenance and Overhauling 5.1 Maintenance and Overhauling [1]: Ensure the operator checks the grinding plate before using, if any loose bolts are located on the grinding plate or the bolt, timely fasten the bolt and the nut for preventing uneven abrasion. [2]: Using this equipment to grind, the operator shall ensure the surface is flat end even.
  • Page 12 for about 1000m , and once every 5 months after the run-in period. [7]: Clean the external housing of this equipment after every use in the premise of outage, and put it in dry and cool place for next use, thus extending the service life. [8]: Please operate this equipment strictly following the instructions, so as to avoid unnecessary loss.
  • Page 13 Machine Warranty Information The quality of this product is warranted to be free from defects in both materials and workmanship. The machine warranty is as follows. Part Engine 2 Year Warranty Fuel System 2 Year Warranty LP Tank (On select models) 1 Year Warranty Machine Body Parts 2 Year Warranty...
  • Page 14 [2]: Check the internal wiring of the power socket of the machine to ensure it is not loose and the wire has a good connection. [3]: Check the motor wire connection box to ensure it is not moist and whether there are burned wires. [4]: To ensure there is sufficient current to operate this machine, we suggest customers to use 3*6square cable to operate 220V 11KW motor and 4*4square meter cable to operate 380V 11KW motor.
  • Page 15 connection and mechanism • Please contact the supplier for repairing • Please use inverter with • Ambient temperature is too high higher power capacity • Inverter external ventilation is not • Improve the ventilation good E0009 Heatsink overheat around the inverter •...
  • Page 16 • Please use inverter with proper power rating • Please check load and • Load disappeared or comes down mechanical transmission Inverter output is E0018 suddenly devices unloaded • • Parameters are not set properly Please set the parameters properly (F20.03-F20.05) •...
  • Page 17 • Please check the connection • Connection fault of communication • Please correctly set the cable communication format • E0029 SCI communication error Disconnected or not well connected (F17.00) and the baud • Communication setting error rate (F17.01) • Communication data error •...
