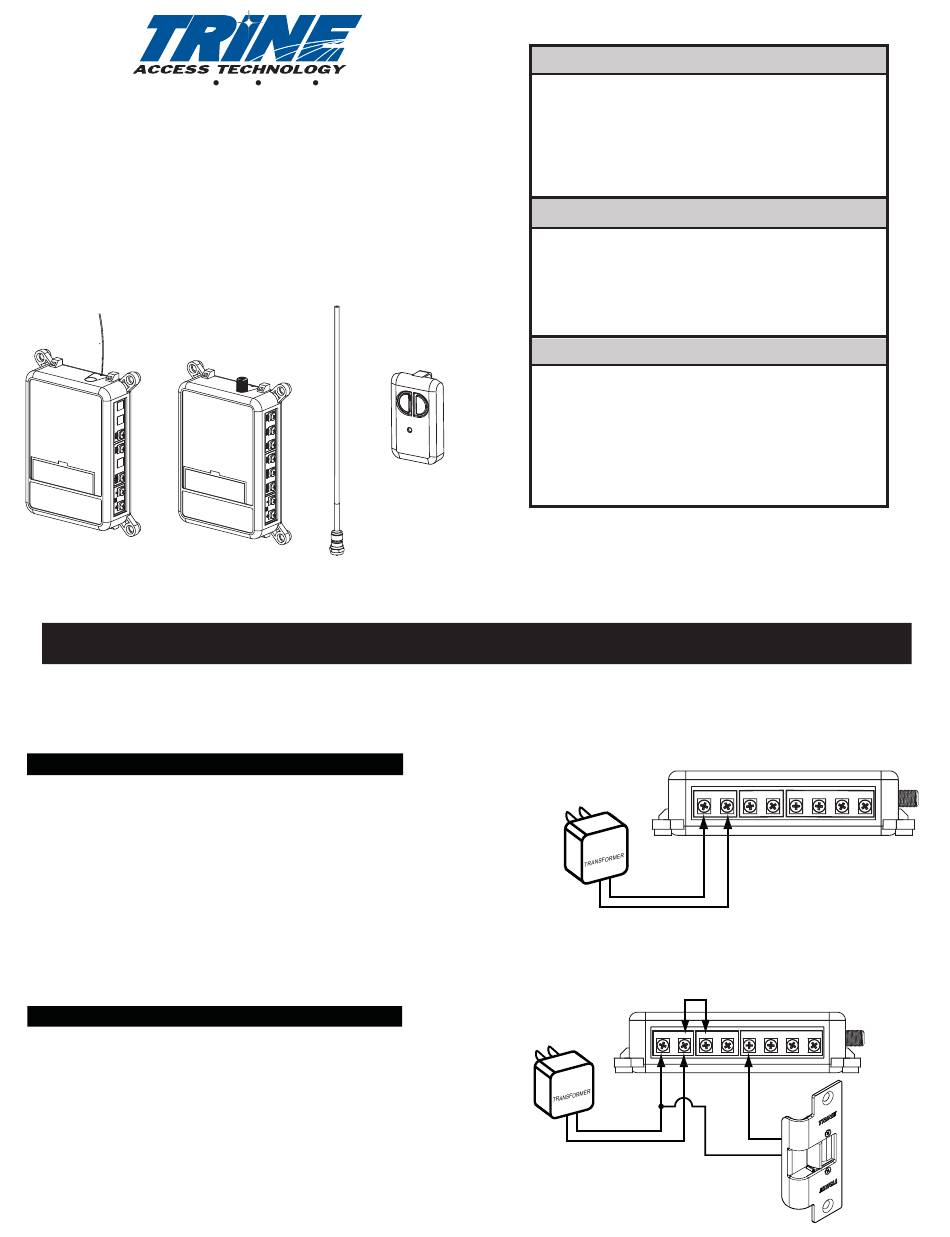

Trine 017TDC-2 Instruction Sheet And Troubleshooting Manual

1440 Ferris Place
017TDC-2 & 3 AND 018-2
WIRELESS CONTROLLERS
AND TRANSMITTER
NOTE: THE 017TDC-2 & 3 AND THE 018-2 ARE NOT COMPATIBLE WITH 017TDC-1 & 018-1
INSTRUCTION SHEET AND
TROUBLESHOOTING GUIDE
017TDC-3
RECEIVER/CONTROLLER
017TDC-2
RECEIVER/CONTROLLER
HOW TO WIRE YOUR 017TDC-2 & 3 WITH DIFFERENT DEVICES
THE ILLUSTRATIONS ON THIS MANUAL SHOWS AN ELECTRIC STRIKE AS THE INTENDED LOAD, THE 017TDC-2 & 3 CAN BE USED TO
FOR OTHER APPLICATIONS (I.E. GARAGE DOOR OPENERS, REMOTE LIGHTING, OTHER SPECIAL APPLICATION SWITCHING... ETC.).
CAUTION:
TO AVOID ELECTROCUTION, MAKE SURE TO TURN OFF THE POWER FROM THE CIRCUIT BREAKER BEFORE
CONNECTING YOUR 017TDC-2 & 3 TO THE POWER SUPPLY
The 017TDC-2 & 3 will work with a range of operating voltages. These
voltages are from 12 Volts through 30 Volts - AC (Alternating Current) or DC
(Direct Current).
If the operating voltage is AC, polarity is not an issue. However, if the
operating voltage is DC, the installer must make sure that all the polarity
must match between the power supply and the devices being connected to
the 017TDC-2 or 017TDC-3.
Figure 1 shows how the transformer is connected. Connect the output wires
of the transformer to the power input terminals marked Positive (+) and
Negative (-) if using DC voltage. If the operating voltage is AC then you need
not bother about polarity, simply connect your wires to the two screws
marked "IN".
CONNECTING A FAIL-SECURE STRIKE TO YOUR 017TDC-2 & 3
Electric strikes can be FAIL SECURE (Locked when power is off) or FAIL
SAFE (Unlocked when power is off). To connect a FAIL SECURE Strike
please see Figure 2. Note that most electric strikes are not polarity sensitive.
Read the electric strike's instruction sheet and follow it's polarity
recommendations.
Bronx New York 10461
018-2
REMOTE
017TDC-3
EXTERNAL
ANTENNA
ELECTRICALLY WIRING THIS DEVICE.

SPECIFICATIONS:

018-2 Two Button Transmitter **
• 6561 security codes available
• LED indicates operation
• Belt clip key ring provided
• Operates on 315 Mhz
• A-23 Battery Included
• FCC, IC Approved
017TDC-2 (Single Relay Controller)
• 100 Foot Range
• Time Delay 5-30 Seconds
• One 5 amp Normally Open and Normally Closed
contacts, rated at 12 through 30 volts AC/DC
• Superheterodyne low radiant receiver
017TDC-3 (Dual Relay Controller)
• 300 Foot Range
• Time Delay 5-30 Seconds
• Two 5 amp Normally Open and Normally Closed
contacts, rated at 12 through 30 volts AC/DC
• Relays can be coupled to work simultaneously or
individually controlled by the 018-2's buttons.
• Superheterodyne low radiant receiver
** BOTH PUSH BUTTONS ON THE 018-2 WILL TRIGGER THE 017TDC-2
CAUTION:
CHANGES OR MODIFICATIONS TO THE 017TDC2,
017TDC-3 AND 018-2 NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS
AUTHORITY TO OPERATE THE DEVICE.
Power Supply
12 - 30 V AC/DC
(For DC ONLY)
FIGURE 1
USE THE COPPER SHUNT (INCLUDED)
TO SUPPLY (-) POWER TO THE STRIKE
Power Supply
12 - 30 V AC/DC
+
(For DC ONLY)
-
(For DC ONLY)
FIGURE 2
1
-
+ IN
COM1 COM2 NO1 NC1 NO2
+ -
(For DC ONLY)
-
+ IN
COM1 COM2 NO1 NC1 NO2 NC2
-
(For DC ONLY)
NC2
Fail Secure
Strike
