Clawbot Guide Book
276-2600-750

Advertisement

loading
Need help?

Need help?

Do you have a question about the Clawbot and is the answer not in the manual?

Questions and answers

Related Manuals for Vex Clawbot

Summary of Contents for Vex Clawbot

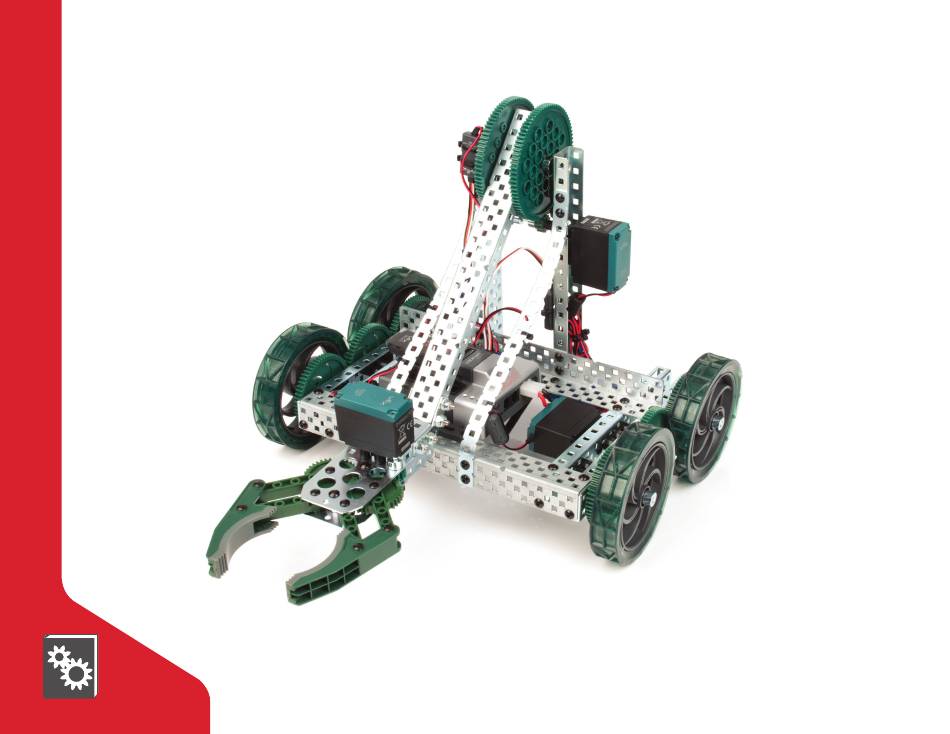

  • Page 1 Clawbot Guide Book 276-2600-750...

  • Page 2: Parts List

    MOTOR COUPLER NYLON LOCKING PATCH [G60] GEAR, 60 TOOTH [S12] #8-32 BUTTON [BST] [SP4.8] HEAD SCREW VEX BATTERY STRAP THIN SPACER �4.8 MM� X 1.5” LONG [S4] [G84] #8-32 BUTTON HEAD �BR-I] GEAR, 84 TOOTH SCREW X 1�2” LONG BEARING POP-RIVET �INSIDE�...
  • Page 3 [A20] CHASSIS BUMPER ANGLE, 20-HOLES LONG [R16] CHASSIS RAIL, 16-HOLES LONG [C20] C-CHANNEL, (1X2X1) 20-HOLES LONG [C15] C-CHANNEL, (1X2X1) 15-HOLES LONG [B20] BAR, 20-HOLES LONG [SH-3] VEX 3” SQUARE SHAFT [ZIP] 4” ZIP TIE...
  • Page 4 �BR�O� �BR�I� 6x [BF] 6x [BF] �SS�L� �SS�S� �BR�O� �BR�I� 3x [BF]...
  • Page 5 �SS�L� �SS�S� �BR�O� �BR�I� 3x [BF] 2x [S2] 2x [NK]...
  • Page 6 2x [S2] 2x [NK] 2x [S2] 2x [NK]...
  • Page 7 6x [S2] 2x [S2] 2x [NK] 6x [NK]...
  • Page 8 Push collars together before tightening set screws Fully insert shaft into motor 2x [SP4.8] 2x [COL] 4x [COL] 1x [SH-3] 2x [SH-3]...
  • Page 9 Push collars together before tightening set screws Fully insert shaft into motor 2x [SP4.8] 2x [COL] 4x [COL] 1x [SH-3] 2x [SH-3]...
  • Page 10 �BR�O� �BR�O� �BR�I� �BR�I� 4x [S4] 4x [NK] 2x [BF] 2x [BF]...
  • Page 11 1x [SS-L] 1x [S-S] 1x [CP] 2x [S2] 1x [CPLR] 2x [NK]...
  • Page 12 2x [S2] 2x [S2] 2x [NK] 1x [ST-1]...
  • Page 13 4x [S4] 2x [NK] 4x [NK] 2x [S12]...
  • Page 14 Fully insert shaft into motor before tightening shaft collars Robot Front 4x [COL] 1x [COL] 1x [SH-3] 1x [SH-3]...
  • Page 15 4x [S4] 4x [NK] 2x [B20]...
  • Page 16 4x [S4] Robot Front 4x [NK]...
  • Page 17 Notes...
  • Page 18 Custom manufactured in China for Innovation First Trading SARL. Distributed in the U.S.A, Mexico, Caribbean, Central & South America by VEX Robotics, Inc., 6725 W. FM 1570, Greenville, TX 75402, U.S.A. Distributed in China by Innovation First International (Shenzhen), Ltd., Suite 1906, Excellence Tower, 98 Fuhua Yi Road, Futian, Shenzhen, Guandong, China 518048. Distributed in other regions by Innovation First Trading SARL, 21b rue Gabriel Lippmann, L-5365 Munsbach, Luxembourg +352 27 86 04 87.
