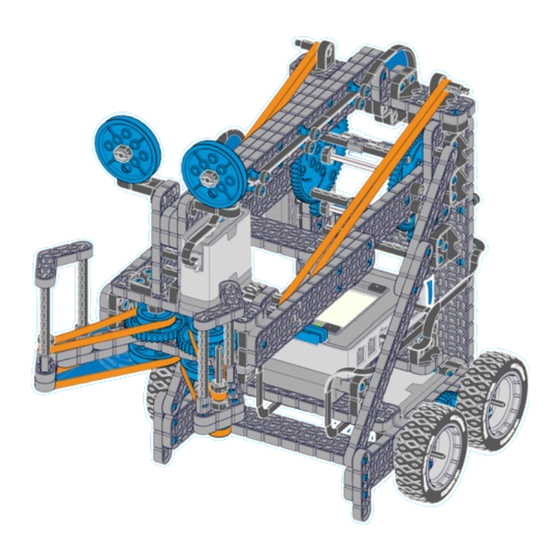

Stretch Build Instructions
228-4444-270

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stretch and is the answer not in the manual?

Questions and answers

Related Manuals for Vex Stretch

Summary of Contents for Vex Stretch

  • Page 1 Stretch Build Instructions 228-4444-270...
  • Page 2 Count before you connect • Contar antes de conectar • Compter avant de connecter • Contare i pezzi prima di collegarli• Erst zählen, dann verbinden• Policz, zanim połączysz • Tell voordat u aansluit Confirm orientation Confirmar orientación Confirmez l’orientation Confermare l’orientamento Ausrichtung prüfen Potwierdź...
  • Page 3 Remove connectors Retirar conectores Retirez connecteurs Rimuovere i connettori Verbindungsstücke entfernen Wyjmij łączniki Verwijder connectors 2x16 15.5 14.5 13.5 1x12 12.5 11.5 10.5 60° 45° Check angle Verificación de ángulo Verifiez l’angle 30° Controllare l’angolazione Winkel prüfen Sprawdź kąt Check hoek Notice Flip Rotate...
  • Page 4 228-3196-215 0.25 228-3196-214 228-3201-114 228-3196-213 228-3201-078 228-2500-209 228-3201-081 228-3990-001 228-3201-082 228-3201-083 228-2500-208 228-3201-094 40mm 40mm 228-3196-166 228-2500-074 30mm 228-3196-165 228-2500-124 20mm 228-3196-164 228-3201-125 10mm 228-3196-163 228-3201-143 118x 228-3196-060 1x2.5 228-3201-127 228-3201-131 228-3196-061 228-3196-062 228-3201-133 228-3201-128 228-3201-064 228-3201-065 228-3201-134 228-3201-067 228-3201-070 228-3201-126 228-3201-220 228-3201-072...
  • Page 5 228-3616-002 228-3616-003 228-3616-007 1x10 228-3616-009 1x12 228-3616-011 2x20 228-3616-030 2x16 228-3616-028 2x12 228-3616-026 2x10 228-3616-025 228-3616-023 228-3616-021 228-3616-019 228-3616-017 60° 228-3616-149 30° 228-3616-147 228-3616-145 228-2560 200mm 228-2780-001 300mm 228-2780-002 600mm 228-2780-004 228-2540...
  • Page 6 2x12 2x12 11.5...
  • Page 8 2x10 2x10 2x10 2x10...
  • Page 10 2x1.5 2x16...
  • Page 11 2x1.5 2x16...
  • Page 12 2x12 2x12...
  • Page 14 2x12 2x12...
  • Page 16 2x1.5 2x1.5 2x16...
  • Page 17 2x16...
  • Page 18 2x10 2x10...
  • Page 19 1x10 1x10...
  • Page 20 1x12 1x12...
  • Page 22 30mm 3x3 60° 30mm 3x3 30° 3x3 60° 10mm...
  • Page 23 10mm 3x3 30° 3x3 30° 3x3 60° 10mm...
  • Page 24 20mm 20mm...
  • Page 26 3x3 60° 3x3 60°...
  • Page 28 2x16 2x20 2x20 19.5 2x16 2x16...
  • Page 29 2x16...
  • Page 30 2x1.5 2x1.5...
  • Page 31 1x2.5 12.5 1x2.5 1x2.5...
  • Page 32 40mm 40mm...
  • Page 34 200mm 200mm...
  • Page 35 200mm...
  • Page 36 300mm 300mm...
  • Page 37 600mm 600mm...
  • Page 38 Motor 4 Normal The Driver Control program must be in 2 Joystick Motor 5 Motor 5 Normal Normal Motor 5 Normal mode to drive Stretch IQ. Set Drive FWD to Reverse. Set DriveTurn to Normal. Select Select Exit Exit Select Exit...
  • Page 39 Questions? We’ve got answers! The VEX IQ Forum is the go-to place for all VEX related questions. Looking for advice about a specific robot design? Get a response from a veteran builder who may have built something similar and can offer their feedback. Or, if you’re having problems with programming or...
  • Page 40 Stretch Build Instructions 228-4444-270 Rev4 Custom manufactured in China for Innovation First Trading SARL. Distributed in the U.S.A. by VEX Robotics, Inc., 1519 Interstate 30 West, Greenville, Texas 75402, U.S.A. Distributed in Europe by Innovation First Trading SARL, 21b rue Gabriel Lippmann, L-5365 Munsbach, Luxembourg +352 27 86 04 87.
