Summary of Contents for Seiki SC-610AUGCT

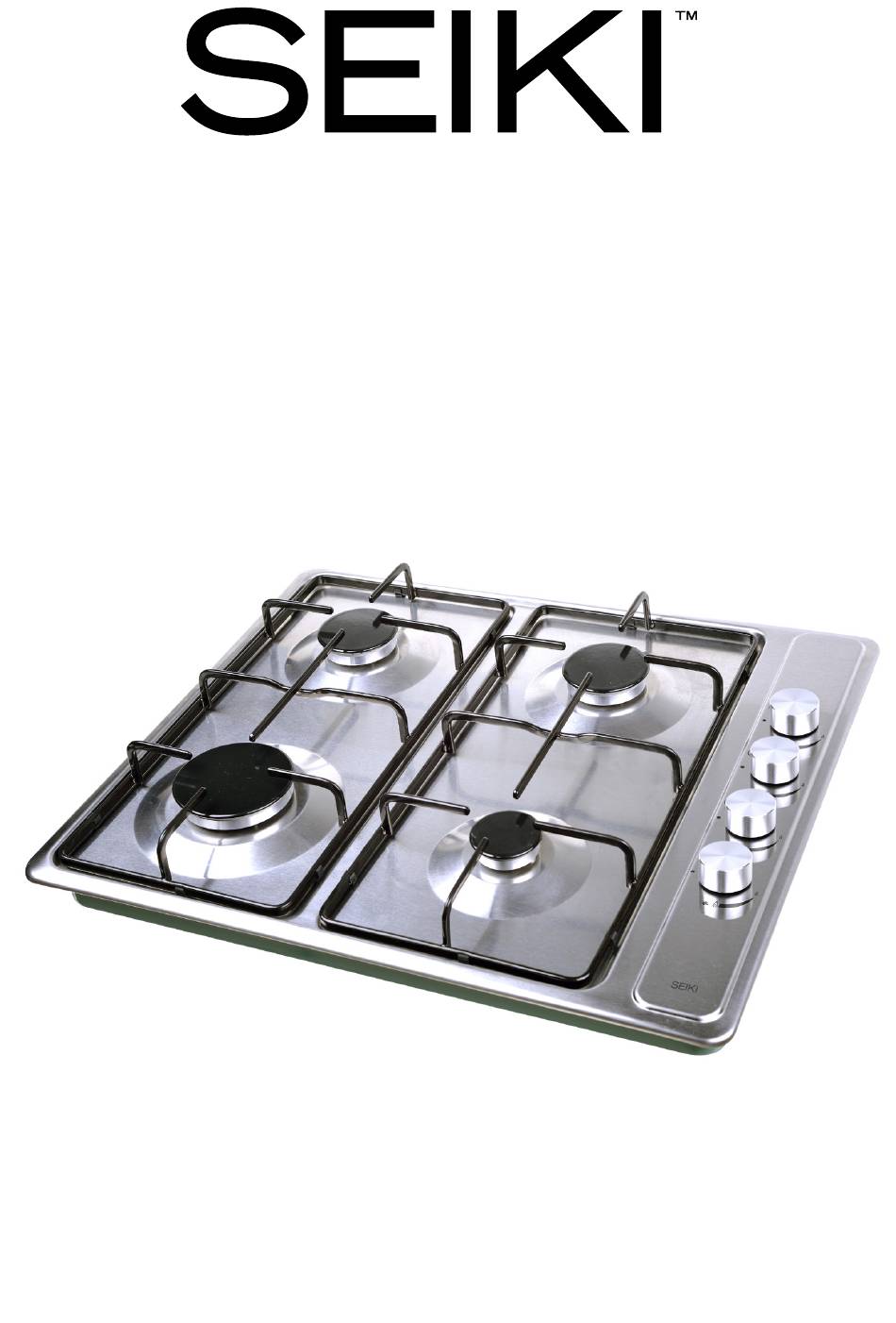

- Page 1 60CM GAS COOKTOP SC-610AUGCT INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Installation Ventilattion Requirements Cooktop Preperation Installing Cooktop Guide Applying Seal Installing and Mounting Cooktop Gas Connection Electrical Conncetion Instructions Other Useful Information FAQs Specifications Customer Helpline... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Gas Cooktop. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. WARNING! •... - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • Do not use any unstable or plastic cookware products or aluminium foil containers. No large cookware are to overlap bench as this can deflect heat back onto the cooktop and damage the surface. Cookware products can become hot while in use with this appliance.
-
Page 7: Product Overview
PRODUCT OVERVIEW 2 x Semi rapid gas burner Control Panel Rear Right Burner Control Rear Left Burner Control Front Left Burner Control Front Right Burner Control Auxiliary Gas Burner 2 x Trivets (Pan Supports) Rapid Gas Burner... -
Page 8: Installation
INSTALLATION Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. UNPACKING • When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. -
Page 9: Ventilattion Requirements
INSTALLATION (Cont.) IMPORTANT ADVICE • The appliance must only ever be located and installed in a kitchen and not any other room. • This cooktop is not suitable for mobile homes, caravans and marine craft unless every burner is fitted with a flame safeguard. •... - Page 10 INSTALLATION (Cont.) MINIMUM CLEARANCES Walls or vertical structures must be at least 200mm away from the burner. Where the horizontal clearance is less than 200mm, that vertical surface must be protected by a non-combustible material for 150mm above the cooktop surface across the entire length (depth, width).
-
Page 11: Cooktop Preperation
INSTALLATION (Cont.) COOKTOP PREPERATION • Make sure there is plenty of ventilation and control elements are easily accessible. • The cooktop can be fitted to benchtops of 40-50mm • For rangehood isntallation above the appliance, check the rangehood instructions for required clearences before installation of the product. •... -
Page 12: Installing Cooktop Guide
INSTALLATION (Cont.) INSTALLING COOKTOP IN YOUR BENCH • Measurements for fitting and cutout of the appliance are as below. 553 mm 150 mm 473 mm 80 mm 150 mm 150 mm... -
Page 13: Applying Seal
INSTALLATION (Cont.) APPLYING SEAL The Gas Cooktop has a special seal which prevents liquid from infiltrating into the cabinet. Be sure to strictly follow these instructions in order to correctly ap- ply this sealing tape before inserting the Gas Cooktop into the benchtop. •... -
Page 14: Gas Connection
INSTALLATION (Cont.) GAS CONNECTION • Make sure that it is possible to run gas lines to the gas connection point of the appliance. The gas connection point must be accessible without having to remove the cooktop. If a flexible hose is used, the connection point must also be accessible without having to remove the cooktop. -
Page 15: Electrical Conncetion
INSTALLATION (Cont.) ELECTRICAL CONNECTION • Insert the powerplug firmly into an appropriate power outlet and switch it on. • The power outlet must be correctly earthed and easily accessible. The outlet voltage and frequency must cirrespond to the voltage indicated on the appliance taing label. -
Page 16: Instructions
INSTRUCTIONS BEFORE USING THE GAS COOKTOP • Before first time use of the Gas Cooktop and that it has been professionally installed. Please read through this manual especially the safety instructions at the beginning of the manual. • Make sure Cooktop is correctly plugged into the wall outlet and power is switched on. - Page 17 INSTRUCTIONS (Cont.) FLAME FAILURE SAFETY • This Gas Cooktop has a flame failure safety feature which quickly cuts off the gas supply to the burner in the event of the flame going out. OPTIMUM USE OF BURNERS 2 x Semi rapid gas burner Front Right Burner Control Control Panel Auxiliary Gas Burner...
-
Page 18: Other Useful Information
OTHER USEFUL INFORMATION CLEANING AND MAINTENANCE CAUTION! • Before cleaning any part of the Cooktop, be sure to have all controls are switched off and the oven has called down sufficiently. • Make sure once all burners are switched off that the cooktop surface is cool before you commence cleaning. - Page 19 OTHER USEFUL INFORMATION ALUMINIUM PARTS • Clean the burner parts once a month to ensure nothing is clogging the mechanism. Use a thin steel needle to remove any dirt, combustion residues or spilled food residues from the burner holes. • Remove the burner bodies from the cooktop and clean them the same way as the enamelled parts, or use a nylon brush to remove any cleaning materials, water or dirt.
-
Page 20: Faqs
FAQS If experiencing issues with your oven and isn’t operating correctly please check the following pages for solutions to the problems. If none of the solutions offered help solve the problem with your appliance then please contact our call centre on 1300 296 699. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. -
Page 21: Specifications
SPECIFICATIONS Model Number SC-610AUGCT Power Supply 220-240VAC 50Hz 1-2W Certified Gas Type Natural Gas / LPG Total Gas Consumption 27.9 MJ/h Rapid Gas Burner NG: 11.2 MJ/h / LPG: 10.1 MJ/h 2 x Semi Rapid Gas Burner NG: 6.4 MJ/h / LPG: 7.0 MJ/h Auxiliary Gas Burner NG: 3.9 MJ/h / LPG: 4.1 MJ/h... -
Page 24: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
