Reattaching The Grass Catcher - Snapper Clean Sweep Triple Catcher Operator's Manual

B

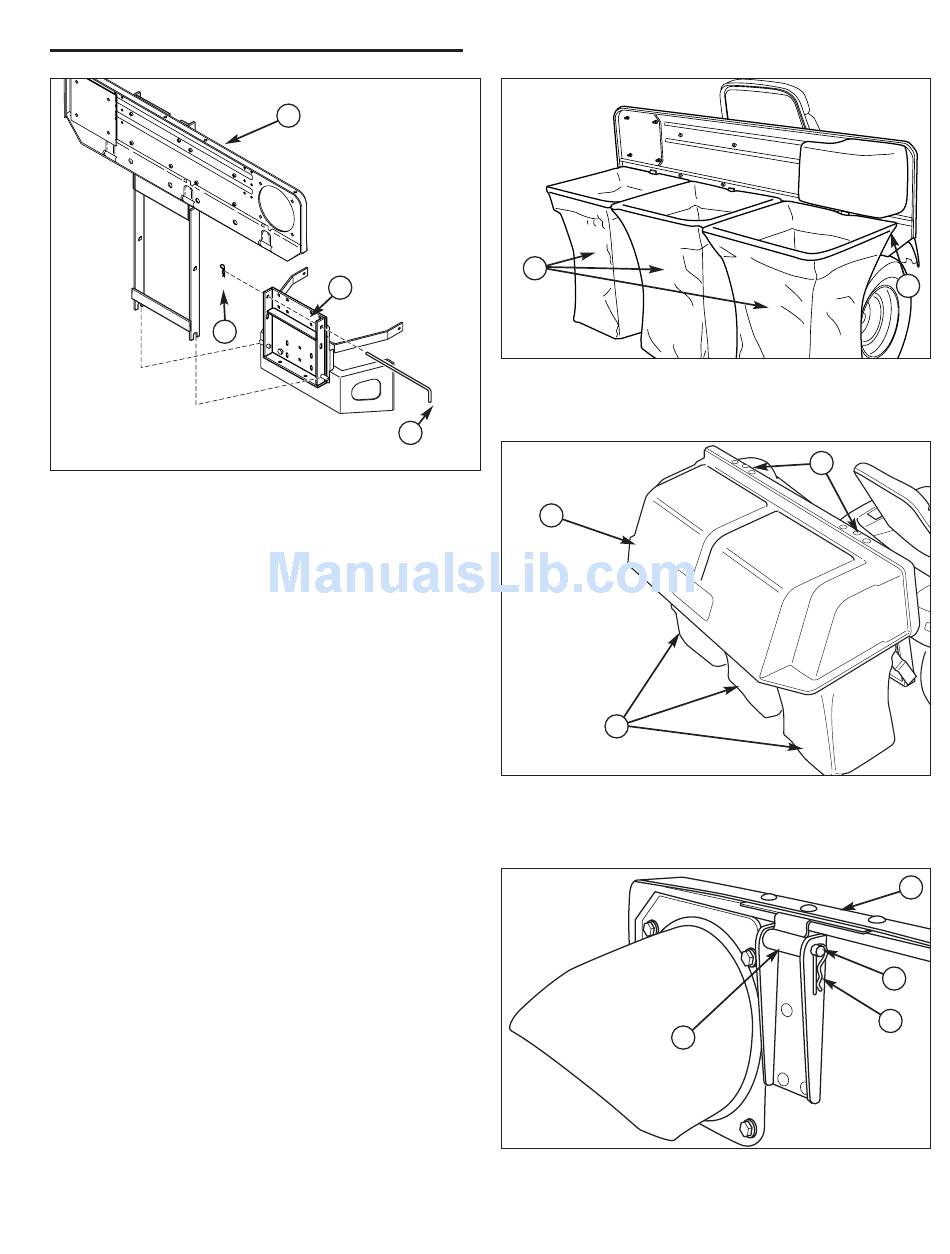

Figure 5. Install Back Plate (Flat Style Bumper shown)
A. Back Plate & Support
B. Hair Pin
Re-attaching the Grass Catcher
1. Set the back plate and support (A, Figure 5) onto pins
of hitch plate (C). Secure with rod (D) and hair pin
(B).
3. Hook the bags (A, Figure 6) on the back plate(B).
4. Install the catcher cover (A, Figure 7 & 8) and secure
with the hinge pins (B) and hair pin clips (D).
NOTE: Push the hair pin clips all the way on or they will
be bent by the hinge when the cover is opened.
5. Insert middle & lower tube (B, Figure 4) into upper
tube (A) and clip (C) onto turbo.
A
C
D
C. Hitch Plate
D. Rod
Removing and Re-attaching Grass Catcher
A
Figure 6. Bags
A. Bags
B. Back Plate
A
B
Figure 7. Install Cover
A. Cover
B. Bags
Figure 8. Install HInge Pins
A. Cover
B. Hinge Pin
15
C
C. Hinges
C
C. Hinge
D. Hair Pin Clip
B
A
B
D
