Installation and Assembly:

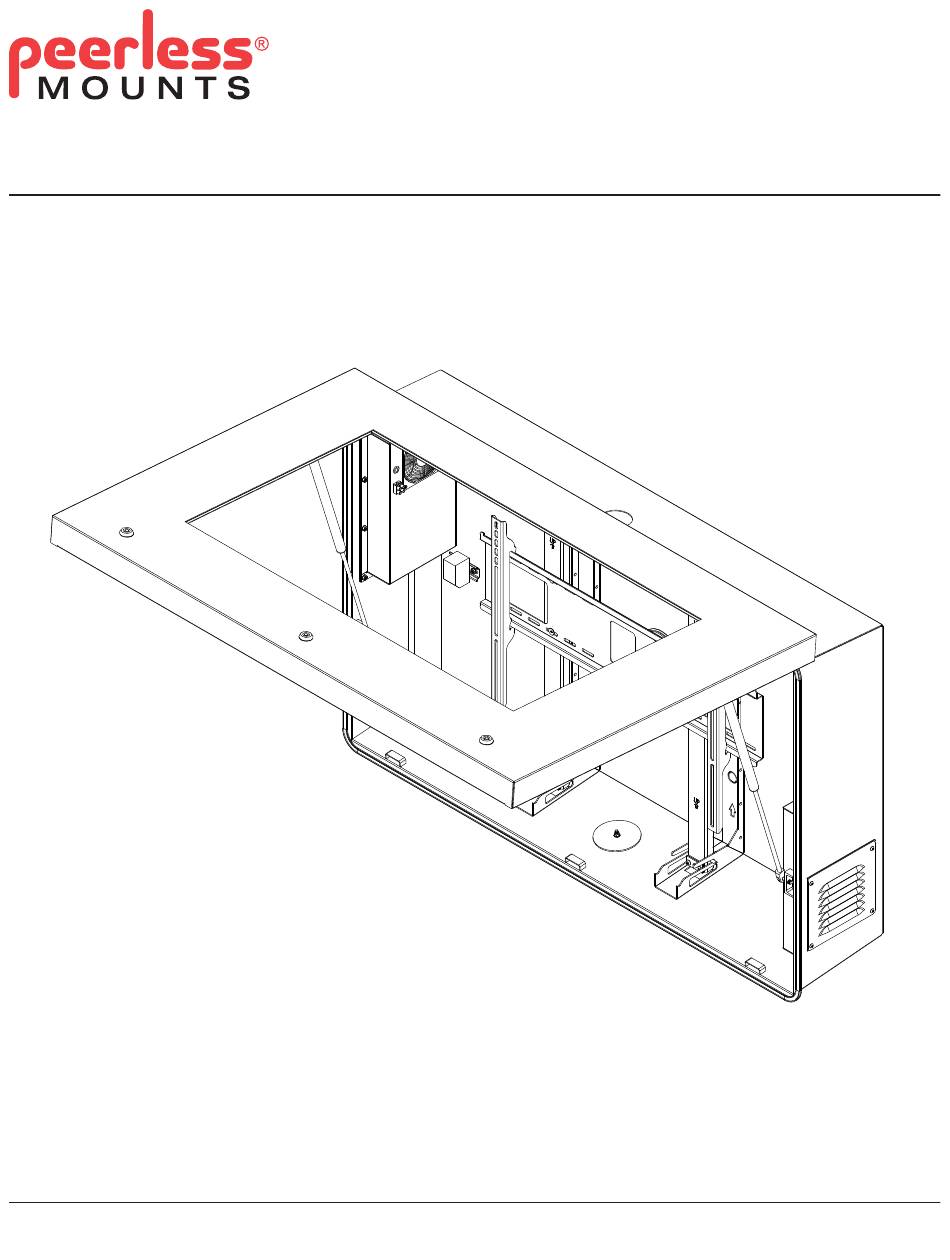

Peerless Environmental Enclosure for 42" Flat Panel Screens
Model: FPE42F-S, FPE42FH-S, FPE42F-B
Max Load Capacity: 250 lb (113 kg)
2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 07-16-10 SHEET #: 061-9050-4 03-04-11
Advertisement
Table of Contents
Related Manuals for PEERLESS FPE42FH-S
Summary of Contents for PEERLESS FPE42FH-S
- Page 1 Installation and Assembly: Peerless Environmental Enclosure for 42" Flat Panel Screens Model: FPE42F-S, FPE42FH-S, FPE42F-B Max Load Capacity: 250 lb (113 kg) 2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com ISSUED: 07-16-10 SHEET #: 061-9050-4 03-04-11...
-
Page 2: Table Of Contents
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List FPE42F-S FPE42FH-S FPE42F-B Description Qty. Part # Part # Part # A enclosure assembly 061-7246 061-7304 061-T1246 B adapter brackets... - Page 4 Adapter Bracket Fasteners M4 x 12 mm (4) M5 x 12 mm (4) (504-9013) (520-1027) M6 x 12 mm (4) (520-1128) M4 x 25 mm (4) M5 x 25 mm (4) M6 x 20 mm (4) (504-1015) (520-9543) M6 x 30 mm (4) (520-9402) (510-9109) .5"...
-
Page 5: Removing Bay Door
Optional Removal of Bay Door WARNING • Grasp bay door fi rmly. Bay door will swing freely when gas springs are removed. Bay door may be removed for ease of installation Remove center set of 10-24 x .5" phillips screws to mounting surface. - Page 6 Installing Cables Removal of Rear Supports: Loosen 1/4-20 x Cables may be routed through top, bottom, or rear 2.36" screws at top and bottom of rear supports as of main enclosure assembly. An additional available shown in detail 2. Lift up rear supports, tilt to the option for cable entry while maintaining the waterproof side, and pull out of carriage supports as shown in seal of the enclosure is the ROXTEC cable gland (F).
-
Page 7: Wall Installation
Installation to Wood Stud Wall WARNING • DO NOT lift more weight than you can handle. Always use an assistant or mechanical lifting equipment to safely lift and position enclosure assembly (A). • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. -
Page 8: Wall Plate Installation
Wall Plate Installation Reinstall rear supports into carriage supports. NOTE: Be sure "UP" arrow of rear support is pointing up. Attach wall plate (J) to rear supports with four 12 mm fl at head screws (H) and four serrated locknuts (I). Slide wall plate (J) to desired vertical position (+/- 3/4"). -
Page 9: Reinstalling Door
Reinstalling Bay Door WARNING • Grasp bay door fi rmly. Bay door will swing freely when gas springs are removed. If bay door was removed in step 1, lower bay door Secure both gas springs to bay door by pressing onto enclosure assembly and slide to the left to on as shown in detail 5. -
Page 10: Attaching Vertical Brackets To Screen
Installing Adapter Brackets WARNING • Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become de- tached. - Page 11 MULTI-WASHER SCREW ADAPTER BRACKET (B) If you have any questions, please call Peerless customer care at 1-800-865-2112. For Bump-out or Recessed Back Screen Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into screen as shown below.
-
Page 12: Mounting And Removing Screen
Mounting and Removing Flat Panel Screen WARNING • Always use an assistant or mechanical lifting equipment to safely lift and position the fl at panel screens. Hook adapter brackets (B) onto wall plate (J) then Swing rear supports up to access safety screws as slowly swing screen in as shown in fi... - Page 13 Firmly grasp top and bottom of screen. Lift up and push the bottom of the rear supports back until it rests in place then push the top of the rear supports back until it rests in place. Tighten 1/4-20 x 2.36" screws at top and bottom of rear supports as shown in detail 7.
-
Page 14: Depth Adjustment
Depth Adjustment WARNING • Failure to allow this space for air circulation and to allow heat to dissipate from the screen may effect the visual ap- pearance and/or cause damage to your screen. NOTE: The installed display should allow a 1/2" air gap between the front of the screen and the interior surface of the window. -
Page 15: Setting Thermotstat
Fan will operate at all times. For all other questions, refer to thermostat instruction sheet included in enclosure assembly HEATER INFORMATION (FPE42FH-S only) Thermostat of heater is not adjustable. The heater will turn on at 40°±7° and will turn off at 60°±5°. - Page 16 Locking Environmental Enclosure Gently lower bay door. Using key (G) rotate door locks clockwise until key cannot turn. Make sure that the key has fully rotated to seal enclosure. If key does not fully rotate, door lock may need to be adjusted for a looser seal. NOTE: Gasket seal of bay door must be compressed to allow for a water tight seal.
-
Page 17: Filter Replacement
