Summary of Contents for Fisher-Price Kid-Touch J8209
- Page 1 J8209, J8210, J8211 www.fisher-price.com...
-
Page 2: Table Of Contents
Table of Contents Getting Started Introduction ................................... 3 Tips for Better Images ..............................4 Package Contents ................................. 5 Your Camera ................................. 6 Specifications ................................9 Setting Up Your Camera “AA“ (LR6) Battery Installation ............................10 CR2032 Battery Installation ............................12 Battery Safety Information and Recycling Information ..................14,15 Using Your Camera Turning the Camera On and Off ..........................16 Taking a Picture ................................17 Using the Flash ................................18 Reviewing or Deleting Pictures . -
Page 3: Introduction
Introduction Introduction • P lease keep this instruction booklet for future reference, as it contains important information. • R equires four “AA” (LR6) alkaline batteries (not included) and one CR2032 lithium button cell battery (included). • A dult assembly is required for battery and software installation. • T ool required for battery installation: Phillips screwdriver (not included). Loosen and tighten screws with a Phillips screwdriver. Do not over-tighten the screws. • Y our Kid Tough Digital Camera includes PhotoShow Deluxe Software to view, manage ™ ™ or edit your digital pictures. If you already have image viewing/editing/managing software installed on your computer, you do not need to use PhotoShow Deluxe Software. ™ • W hen your camera is connected to your computer, you can delete or copy pictures by accessing your camera as a removable storage device. • F or additional picture storage, this camera accepts a Secure Digital (SD) card (not included). CAUTION This package contains small parts in its unassembled state. Adult assembly is required. -
Page 4: Tips For Better Images
Tips for Better Images! Before your child uses the camera independently, we recommend that you first thoroughly read these instructions. Explain to your child how to use the camera and then practice taking pictures with your child. 1. Use Bright Light Indoors M ake sure there is a bright light source when taking indoor pictures. The light source (sun, lamp or window) should be above or facing your picture subject. Do not place your picture subject in front of the light source since the picture subject will look dark in your photo. 2. Hold Still M ake sure the picture taker and the picture subject aren’t moving. Also be sure your child holds the camera with two hands. 3. Proper Distance C enter the picture subject on the LCD screen. The picture subject should be no closer than 4 feet (1.22 m) from camera. For flash pictures, make sure your subject is no further than 7.5 feet away (2.23 m). -
Page 5: Package Contents
Package Contents CD-ROM with PhotoShow Camera Deluxe Software (This is not a toy.) CR202 Lithium Button Cell Battery USB Cable (For adult assembly only.) (This is not a toy.) -
Page 6: Your Camera

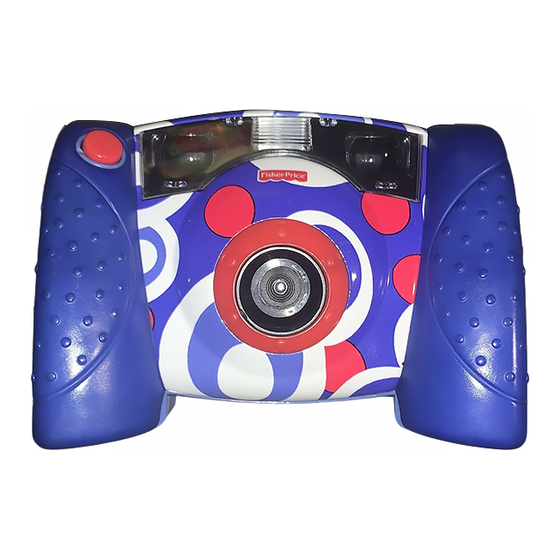

Your Camera The Kid Tough Digital Camera is picture-perfect for your little one! It’s a real digital camera with ™ a durable, drop resistant design. It’s a perfect way for kids to get creative by taking, viewing and even printing their own digital pictures! Shutter Button Introduction Flash Lens Front View... - Page 7 Your Camera Viewfinder Image Back Image Forward Button Button USB Port (open door to access) Speaker LCD Screen Power Button Delete Button Back View...
- Page 8 Your Camera SD Card Slot (SD Card not included and sold separately) CR2032 Battery Compartment “AA“ (LR6) Battery Compartment Battery Tray “AA“ (LR6) Battery Compartment Battery Compartment Door Bottom View...
-
Page 9: Specifications
Specifications Picture Resolution ....640 x 480 Internal Memory ......8 MB SDRAM (approximately 60 pictures) ..........For additional memory (image storage), this camera ..........accepts an SD card (sold separately and not included). Lens ..........4.8 mm, f = 2.6 Focus Range ......4 ft. (1.22 m) - infinity LCD Screen .......1.3” color LCD preview Connectivity ......USB (version 1.1 or higher) Batteries ........4 “AA” (LR6) alkaline batteries ..........1 CR2032 lithium button cell battery Flash Range ......4 ft. - 7.5 ft. (1.22 m - 2.23 m) Camera Dimensions ....W - 5.5” (14 cm) x D - 3.0” (7.6 cm) x H - 3.375” (8.57 cm) Camera Weight .......10.44 oz. (296 g) (without batteries or SD card) -
Page 10: Aa" (Lr6) Battery Installation
“AA“ (LR) Battery Installation Battery Compartment Door... - Page 11 “AA“ (LR) Battery Installation 1.V x “AA” (LR) • Locate the battery compartment door on the bottom of the camera. • Loosen the screws in the battery compartment door. Remove the battery compartment door. • Insert four “AA” (LR6) alkaline batteries. Hint: We recommend using alkaline batteries for longer battery life. • Replace the battery compartment door and tighten the screws. • When the low battery indicator appears on the LCD screen , it’s time for an adult to change the batteries. • Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities (Europe only).
-
Page 12: Cr2032 Battery Installation
CR202 Battery Installation CR202 Battery Tray Battery Compartment Door... - Page 13 CR202 Battery Installation The CR2032 lithium button cell battery provides power to your camera when you change the “AA” (LR6) batteries to ensure no pictures are lost. If you find that your camera loses pictures when you change the “AA” (LR6) batteries, it’s time to change the CR2032 lithium button cell battery. • Loosen the screws in the battery compartment door. Remove the battery compartment door. • Locate the battery tray inside the bottom of the camera. • Loosen the screw in the battery tray and pull to remove the battery tray. • Insert one CR2032 lithium button cell battery. • Replace the battery tray and tighten the screw. • Replace the battery compartment door and tighten the screws.
-
Page 14: Battery Safety Information And Recycling Information
Battery Safety Information In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your toy. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). • Insert batteries as indicated inside the battery compartment. • Remove batteries during long periods of non-use. Always remove exhausted batteries from the toy. Dispose of batteries safely. Do not dispose of this product in a fire. The batteries inside may explode or leak. • Never short-circuit the battery terminals. • Use only batteries of the same or equivalent type, as recommended. • Do not charge non-rechargeable batteries. • Remove rechargeable batteries from the toy before charging. • If removable, rechargeable batteries are used, they are only to be charged under adult supervision. - Page 15 Recycling Information If your product contains replaceable button cell batteries, please remove and recycle the battery(ies). If the batteries in your product are not replaceable, please recycle your product. • Visit your nearest recycling center. For the location of the nearest recycling center, visit us online at www.service.mattel.com. • I f a recycling center is not available in your area, contact us for a pre-paid mailing label. Visit us online at www.service.mattel.com or call us toll-free, 1-800-432-5437.
-
Page 16: Turning The Camera On And Off
Turning the Camera On and Off Power Button • Press the power button on the back of the camera to turn power on. You will hear a tone. • To turn power off, press and hold the power button until you hear a tone. Hint: If you have not used the camera for a while, it shuts off automatically. To turn it back on, simply press the power button. -
Page 17: Taking A Picture
Taking a Picture • Have your child look through the viewfinder or look at the LCD screen to see the picture subject. • While holding the camera steady, press the shutter button on the front of the camera. Listen for a “shutter sound” and look for the camera icon on the LCD screen. • The picture you just took will stay on the LCD screen for a few seconds so you can make sure you “got the shot.” Hint: The number on the LCD screen indicates the number of pictures taken. Shutter Button... -
Page 18: Using The Flash
Using the Flash Flash Indicator • If you are taking pictures in low light (dim light) and the flash is required, the flash will operate automatically. A lightning bolt appears on the LCD screen and blinks until the flash is ready. • While holding the camera steady, press the shutter button to take a picture. Hint: The flash works best when your picture subject is about 4 ft. - 7.5 ft. (1.22 m - 2.23 m) from the camera. • When the batteries are getting weak, the flash will not fully charge and the “no flash“ lightning bolt appears on the LCD screen. You can contiune to take pictures without a flash but you will need to change batteries soon (see page 10). -
Page 19: Reviewing Or Deleting Pictures
Reviewing Pictures Image Back Image Forward Button Button • Press the image forward or image back buttons to review the pictures you have taken. • When you are finished reviewing, the camera switches back to normal picture taking mode in a few seconds. - Page 20 Deleting Pictures Image Delete Button • If you decide you do not want a picture, first locate it by using the image forward or back buttons. • Then press the image delete button X . A trash can with a question mark appears on the LCD screen. • If you want to delete the picture press the image delete button again. • If you decide you do not want to delete a picture, simply wait a few seconds and the trash can disappears.
-
Page 21: System Requirements
System Requirements Operating System ......Windows 2000 and up Hardware ........Pentium Class 500 MHz processor or better Hard Drive Space ......75 MB hard drive space recommended CD ROM........CD-R Burner for any CD burning (2x or faster) Input Port ........USB (version 1.1 or higher) Note: While PhotoShow Deluxe is not Macintosh compatible, the camera can be connected ™ as a mountable USB device. Simply drag photos to a folder or to your desktop. Use any image editing software to manage or edit your photos. -
Page 22: About Photoshow™ Deluxe Software
About PhotoShow Deluxe Software Note: Your Kid Tough Digital Camera includes PhotoShow Deluxe Software to view, ™ ™ manage or edit your digital pictures. If you already have image viewing/editing/managing software installed on your computer, you do not need to use PhotoShow Deluxe Software. ™ • To install PhtoShow Deluxe, insert the CD into the CD-ROM drive of your computer. ™ • The software installer launches automatically. Follow the on-screen instructions to complete the installation. • Double click the PhotoShow Deluxe shortcut on your desktop to launch the software. ™ • On the opening screen you can click the “manage” button to jump right in or click on a topic to learn more about how the software works. ™ • To exit PhotoShow Deluxe, click close window X at the top of the window. -
Page 23: Connecting Your Camera To Your Computer
Connecting Your Camera to Your Computer • L ocate the USB door on the back of the camera. • S lide the door open and insert the USB cord (smaller end) into the USB port. • I nsert the larger end of the USB cord into a USB port on your computer, generally marked with this symbol • T he camera turns on automatically and USB appears on the LCD screen Note: Do not disconnect the camera or computer while pictures are importing. Connection Indicator... -
Page 24: Disconnecting Your Camera
Disconnecting Your Camera • To disconnect your camera, click “eject disk” on your computer's task bar. • Select the “USB Mass Storage Device” (your camera) and click “stop.” • Click “OK” to confirm. • A message will appear on your computer screen advising you to remove your device (camera). • Unplug the USB cord from your computer, then your camera. Close the USB door on the camera. The camera shuts off automatically. -
Page 25: Using An Optional Sd Card
Using an Optional SD Card Add an optional SD card (not included and sold separately) to store more pictures on your camera. • Make sure the camera is turned off. • Loosen the screws in the battery compartment door. Remove the battery compartment door. • Gently insert an SD card into the slot in the camera bottom, as shown. Gently press the SD card. You will feel a click when the SD card is in place. Press Note: The card will fit in the slot Here... - Page 26 Using an Optional SD Card Your Kid Tough Digital Camera has an internal memory that stores approximately 60 pictures. ™ If you’d like to be able to take and store more than 60 pictures, we recommend purchasing and using an SD card (sold separately and not included). Here is the approximate picture storage capacity with typical SD cards: 8 MB ........68 pictures 16 MB ........ 136 pictures 32 MB ....... 272 pictures 64 MB ....... 544 pictures 128 MB ......1088 pictures 256 MB ......2176 pictures 512 MB ......4352 pictures 1 GB ........8500 pictures Notes: • If you use your Kid Tough Digital Camera with an SD card (sold separately and not included), ™ pictures already stored in your camera’s memory are not visible. To see them again, simply remove the SD card. • When using an SD card from another camera, pictures already on the SD card may be lost when inserted into the Kid Tough Digital Camera. We recommend using a new SD card with ™...
-
Page 27: Troubleshooting
Troubleshooting Problem Cause Solution Camera will not take pictures Batteries are weak Replace the batteries in the or exhausted camera with four, new “AA” (LR6) alkaline batteries. Camera is turned off Press the power button on the back of the camera to turn it on. Camera memory or SD card Download pictures to your computer is full of images ( appears or use the delete button on the on the LCD screen) camera to remove some of them. Photos too dark Flash does not work because Replace the batteries in the batteries are weak or exhausted camera with four, new “AA” (LR6) alkaline batteries. The range of the flash is about You are out of the range of the flash 4 ft. - 7.5 ft. (1.22 m - 2.23 m). Photos too bright You are too close to your subject The range of the flash is about 4 ft. - 7.5 ft. (1.22 m - 2.23 m). Flash takes too long to recharge Batteries are weak Replace the batteries in the or exhausted camera with four, new “AA” (LR6) alkaline batteries. - Page 28 Troubleshooting Problem Cause Solution Photos are blurry Lens may be dirty or smudged Clean the lens with a soft cloth. Camera moved when picture Try to keep the camera steady when was taken you take pictures. Flash may not have Wait for flash to fully charge before been charged you take a picture . The focus range is from about 4 ft. You are too close to your subject (1.22 m) - infinity Can not transfer pictures to PhotoShow Deluxe software Insert PhotoShow Deluxe CD into the the computer is not installed CD-ROM drive of your computer and install the software. USB cord may not be Check cord connections on both your properly connected camera and your computer. Camera is not recognizing SD card is corrupted or Use only certified SD cards. SD card (not included, not certified sold separately) Pictures on my camera CR2032 lithium button cell Replace the CR2032 lithium button battery is weak or exhausted cell battery.
-
Page 29: Care
Care • Keep water, sand and dirt off of the camera. • Keep the camera away from direct sunlight and excessive heat. • Wipe the camera with a soft, clean cloth. Do not immerse the camera. • This camera has no consumer serviceable parts. Please do not take this toy apart. -
Page 30: Fcc Statement
FCC Statement (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. Note: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. -
Page 31: Consumer Information
Consumer Information Visit us on line at www.service.fisher-price.com. Call our Consumer Relations Department, toll-free at 1-800-2-, 9 AM - 7 PM EST Monday through Friday and 11 AM - 5 PM EST Saturday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. Write to us at: Fisher-Price Consumer Relations, 636 Girard Avenue, East Aurora, New York 14052. ® For customer support using the PhotoShow Deluxe software visit support.simplestar.com For countries outside the United States: CANADA: Questions? 1-800-2-. Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2; www.service.mattel.com. GREAT BRITAIN: Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500303. www.service.mattel.com/uk. AUSTRALIA: Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond, Victoria 3121 Australia. Consumer Advisory Service 1300 135 312. NEW ZEALAND: 16-18 William Pickering Drive, Albany 1331, Auckland. ASIA: Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. - Page 32 ©2002-2006 Simple Star , Inc. Simple Star , Inc. and PhotoShow TM logos are trademarks of Simple Star , Inc. All rights reserved. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2006 Mattel, Inc. All Rights Reserved. ® and TM designate U.S. trademarks of Mattel, Inc. PRINTED IN CHINA J8209a-0920...
