Everik EM-AMB Instructions Manual

Instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE
REFERENCE! IF YOU DO NOT UNDERSTAND THE INSTRUCTIONS, OR DO NOT
FEEL THAT YOU CAN FOLLOW THEM SAFELY, CONTACT A QUALIFIED
CONTRACTOR. THE WARRANTY WILL BE HONOURED IF ACCOMPANIED BY AN
ORIGINAL SALES RECEIPT, AND ONLY IF THE INSTRUCTIONS HAVE BEEN
FOLLOWED EXACTLY.
• The AMB is designed to mount a TV panel onto a vertical wall. Hardware for mounting to a wood
stud is included. For mounting to any other surface, contact a qualified contractor.
• The wall or mounting surface must be capable of supporting the combined weight of the mount and
the display; otherwise the structure must be reinforced.
• Safety gear and proper tools must be used. A minimum of two people are required for this
installation. Failure to use safety gear and/or attempting this installation alone can result in property
damage, serious injury, or death.
• Follow all instructions and recommendations regarding adequate ventilation and suitable locations
for mounting your display. Consult the owner's manual for your display for more information.
• This product will hold flat screens up to 46" and weighing up to 100 lbs.
• VESA 400mm x 400mm
Tools Required
Phillips head screwdriver
•
Ratchet or driver with 1/2" (13 mm) socket
•
Portable or electric drill
•
1/4" (6 mm) drill bit and stud finder
•
3/8" (10 mm) masonry bit for concrete installation
•
• Level

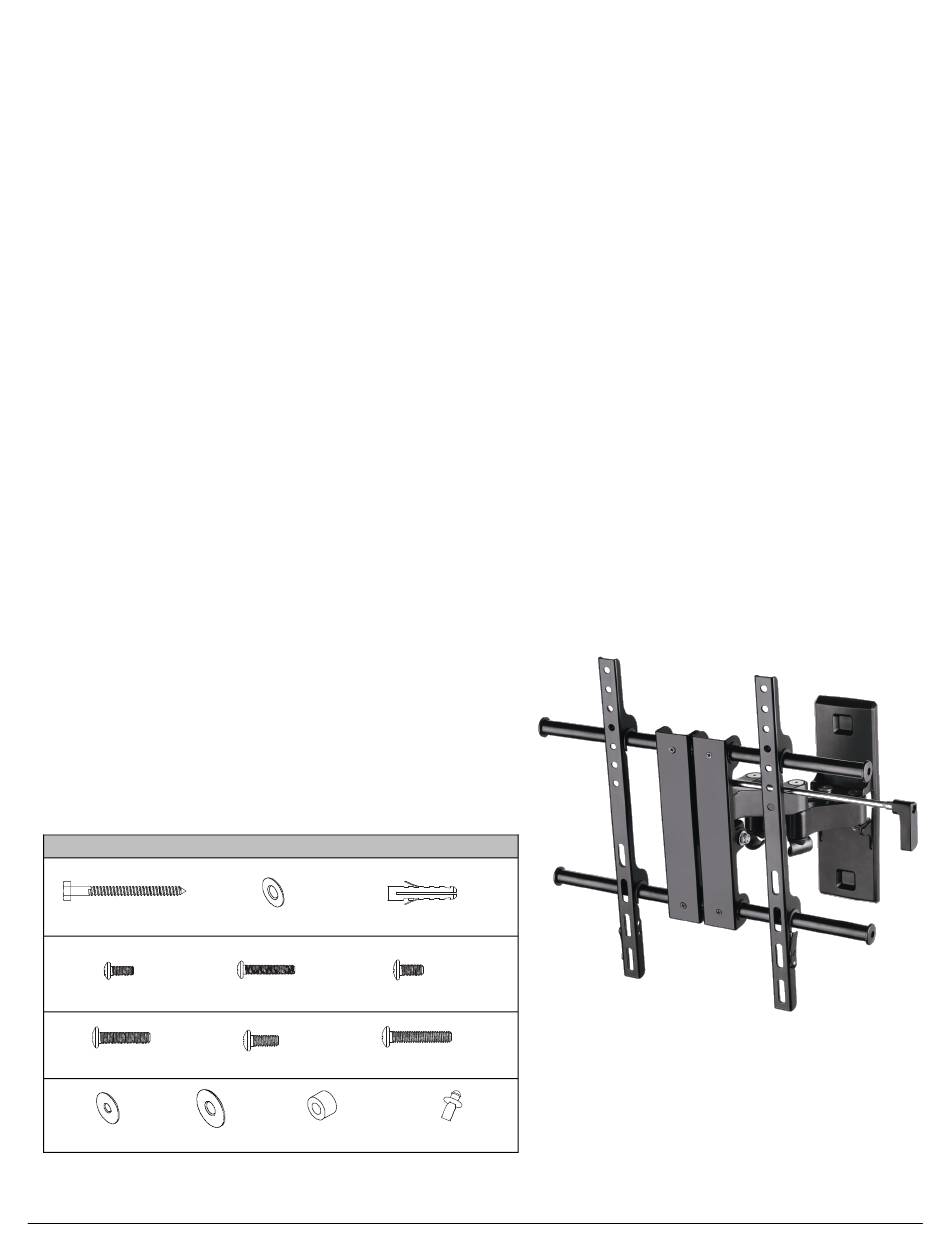

(A) M8 x 63 Lag Bolt (x4)
(D) M4 x 12 Screw (x4)
(G) M6 x 30 Screw (x4)
(J) M6 Washer (x4) (K) M8 washer (x4)
1
(Ref) Item (Qty)
(B) Lag Bolt Washer (x4) (C) Concrete Anchor (x4)
(E) M4 x 30 Screw (x4) (F) M6 x 12 Screw (x4)
(H) M8 x 16 Screw (x4) (I) M8 x 30 Screw (x4)
(L) Spacer (x8) (M) Safety Stopper (x2)
Model:
EM-AMB
IM-AMB
FP-AMB
AMB.ME.072011.IM
