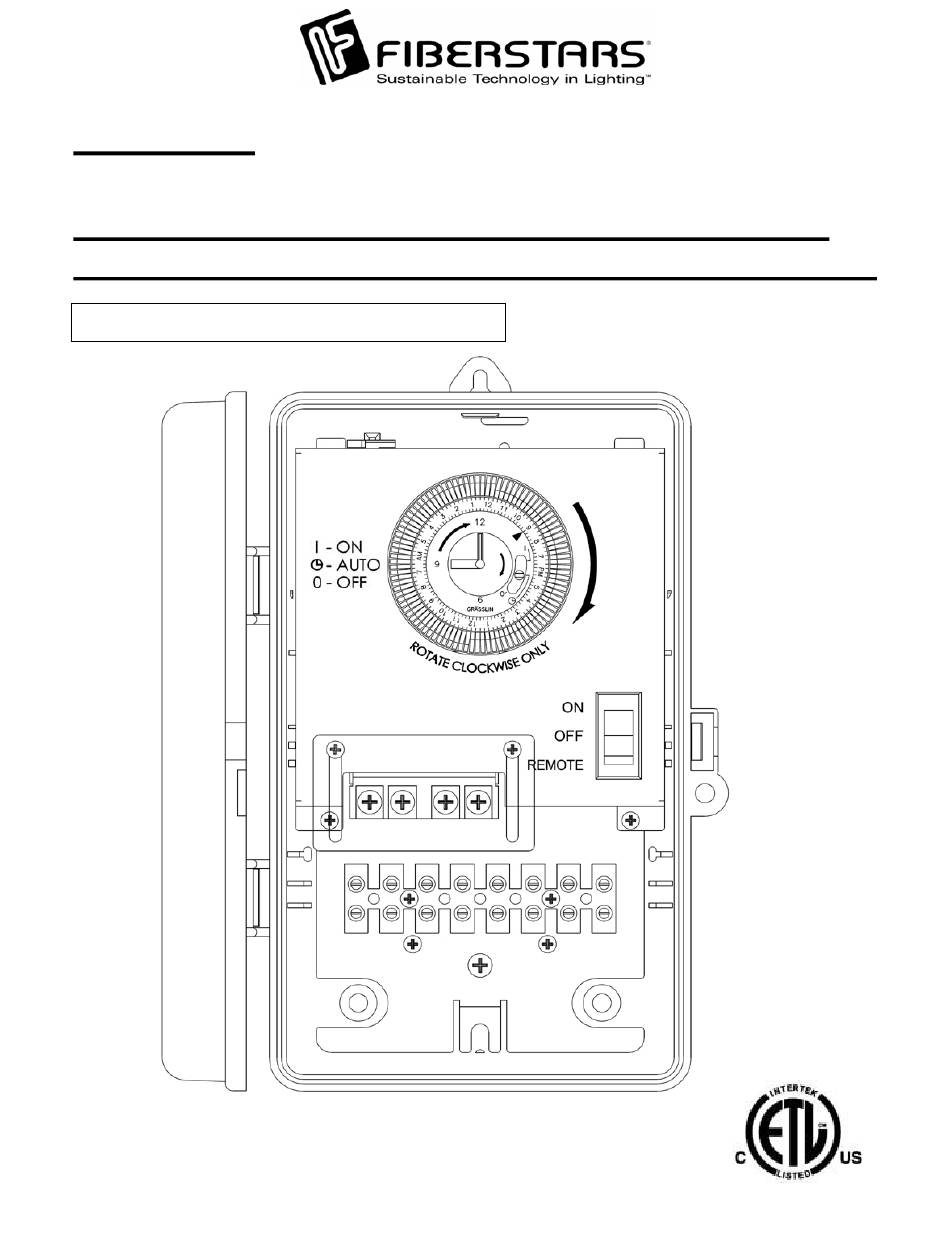

WPC-04R
Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications
Installation Instructions: Read these instructions in
their entirety before performing any installation work.
FOR USE WITH POOL AND SPA PRODUCTS
79-15103-00 REV. B
http://www.fiberstars.co
m
ETL LISTED
Conforms to UL STD 508;
Certified to CSA STD
C22.2 No. 14
Pag
e 1 of 11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fiberstars WPC-04R
Summary of Contents for Fiberstars WPC-04R
- Page 1 WPC-04R Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications Installation Instructions: Read these instructions in their entirety before performing any installation work. FOR USE WITH POOL AND SPA PRODUCTS ETL LISTED Conforms to UL STD 508; Certified to CSA STD C22.2 No.
- Page 2 The WPC-04R consists of the following parts: Item No. Qty. Component part No. Description 42-15032-00 Timer 41-15004-08 8 Position Terminal Block 10-15089-01 M3 Screw, 4MM Length 10-15089-07 M3 Screw, 14MM Length 37-15000-00 Relay 02-15287-00 Base Plate 02-15286-00 Timer and Switch Plate...
-
Page 3: Important Safety Information
1. A qualified electrician must install the WPC-04R in accordance to the National and Local Electrical Codes. 2. The WPC-04R must not be less then 5 feet (3 meters in Canada) from inside edge of pool. ONLY USE COPPER CONDUCTORS. -
Page 4: Wiring Instructions
• VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE. LOCATION Install the WPC-04R enclosure using the mounting plates included with each enclosure. The WPC-04R is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool equipment and the breaker panel. WIRING INSTRUCTIONS FOLLOW PROPER WIRING PRACTICES IN ACCORDANCE WITH ALL LOCAL REGULATORY REQUIREMENTS. - Page 5 1 switch, pull wires from the product to the WPC-04R through conduits connected to the bottom of the WPC-04R. As illustrated, connect the light that will be operated by the Rocker Switch to the Light Hot terminal. Connect the Neutral to the Light Neutral terminal.
- Page 6 240VAC Circuit Breaker on the breaker panel. Circuit Breaker should be rated to correspond to Horsepower and Amperes rating of Pump being used. NOT TO EXCEED 1.5HP 120V/3HP 240V – 30Amps. PRIMARY 240VAC PUMP SECONDARY http://www.fiberstars.com 79-15103-00 REV. B Page 6 of 11...
- Page 7 WPC-04R unit. This repeater receives signals from the wireless remote and sends that signal to the WPC-04R via the 10 foot cable. Establish a location for the Repeater that is in line of sight from where the wireless remote will be used most frequently and that is no more then 75 feet from furthest where the remote will be used.
-
Page 8: Wireless Remote Operation
NOTE: The Rocker Switch on the WPC-04R must be set to REMOTE for wireless operation. The POWER ON/OFF button controls the device connected to the Rocker Switch terminal. With each push of the button, the WPC-04R toggles the Circuit 1 control device ON and OFF. http://www.fiberstars.com 79-15103-00 REV. -
Page 9: Timer Operation
Timer tabs set to Timer tabs set to OFF position ON position Timer dial rotation direction indicator Current time and Timer function switch set point PM hours AM hours Timer function switch Timer dial http://www.fiberstars.com 79-15103-00 REV. B Page 9 of 11... - Page 10 For Freeze Protect Switch For Freeze Protect Switch http://www.fiberstars.com 79-15103-00 REV. B Page 10 of 11...
- Page 11 79-15103-00 REV. B Page 11 of 11...
