WPC-1
Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications
Installation Instructions: Read these instructions in
their entirety before performing any installation work.
FOR USE WITH POOL AND SPA PRODUCTS
79-15053-00 REV. C
http://www.fiberstars.com
ETL LISTED
Conforms to UL STD 508;
Certified to CSA STD
C22.2 No. 14
Page 1 of 16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fiberstars WPC-1
Summary of Contents for Fiberstars WPC-1
- Page 1 WPC-1 Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications Installation Instructions: Read these instructions in their entirety before performing any installation work. FOR USE WITH POOL AND SPA PRODUCTS ETL LISTED Conforms to UL STD 508; Certified to CSA STD C22.2 No.

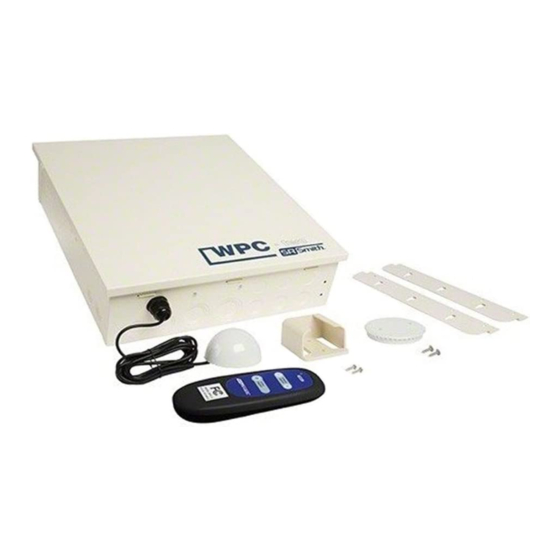

- Page 2 The WPC-1 consists of the following parts: Item No. Qty. Component part No. Description WPC-1 Enclosure 94-15087-00 WPC-1 Enclosure Door 37-15000-00 Relay 41-15004-08 8 Position Terminal Block 42-15032-00 Timer 02-15268-00 Face Plate 02-15274-00 WPC-1 Mounting Bracket 41-15003-00 Grounding Bar 94-15090-00...
- Page 3 1. A qualified electrician must install the WPC-1 in accordance to the National and Local Electrical Codes. 2. The WPC-1 must not be less then 5 feet (3 meters in Canada) from inside edge of pool. ONLY USE COPPER CONDUCTORS.
- Page 4 • VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE. LOCATION Install the WPC-1 enclosure using the mounting plates included with each enclosure. The WPC- 1 is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool equipment and the breaker panel.
- Page 5 Power Connection with GFCI To wire the WPC-1 with the use of a GFCI, punch out the GFCI knockout NEUTRAL on the side of the WPC-1 enclosure. LOAD SIDE LOAD SIDE Install an outdoor rated GFCI. Using COPPER wire only,...
- Page 6 To connect a lighting product to the Circuit 1 and Circuit 2 switch, pull wires from the products to the WPC-1 through conduits connected to the bottom of the WPC-1. As illustrated, connect lights that will be operated by the Circuit 1 Switch to the Circuit 1 terminal. Connect the Neutral to the Neutral terminal.
- Page 7 GREEN cable. Finally, for synchronization operation, connect the C/W CONTROL cable to the Circuit 2 terminal and on the other end to the RED wire on the Fiberstars unit. You may connect up to 8Amps of Fiberstars units to Circuit 1.
- Page 8 NOTE: The Secondary 120V must be directly connected NOTE: Pump Breaker MUST be turned OFF pump for 240V operation. before servicing as 2 leg of 240V circuit is HOT at all time! http://www.fiberstars.com 79-15053-00 REV. C Page 8 of 16...
- Page 9 Heater. NOTE: The Heater circuit only completes the circuit of the Heater terminals when the 24V Valve control is energized to the NO Load circuit. TO HEATER TO HEATER http://www.fiberstars.com 79-15053-00 REV. C Page 9 of 16...
- Page 10 FOR TEMPERATURE FREEZE PROTECT SWITCH OPTION FOR USE ON WPC-2 AUXILIARY RELAY http://www.fiberstars.com 79-15053-00 REV. C Page 10 of 16...
- Page 11 Repeater Mounting The WPC-1 is equipped with a signal repeater that can be mounted up to 10 feet from the WPC-1 unit. This repeater receives signals from the wireless remote and sends that signal to the WPC-1 via the 10 foot cable. Establish a location for the Repeater that is in line of sight from where the wireless remote will be used most frequently and that is no more then 75 feet from furthest where the remote will be used.
- Page 12 OPERATING INSTRUCTIONS WPC-1 TOGGLE SWITCH OPERATION Units equipped with toggle switches The WPC-1 receiver box houses two switches. For operation with the wireless transmitter, the switches need to be in the REMOTE position. To manually turn ON the devices connected to either Circuit 1 or Circuit 2, flip the switches to the ON position.
- Page 13 Timer tabs set to Timer tabs set to OFF position ON position Timer dial rotation direction indicator Current time and Timer function switch set point PM hours AM hours Timer function switch Timer dial http://www.fiberstars.com 79-15053-00 REV. C Page 13 of 16...
- Page 14 CODE ADJUSTMENTS If it is necessary to change the transmission code on the WPC-1 an adjustment to the receiver AND the transmitter DIP switches must be performed. RECEIVER DIP SWITCHES – Turn OFF power to the WPC-1 from the breaker panel. Open the enclosure and unscrew the face plate.
- Page 15 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16 DIP Switch http://www.fiberstars.com 79-15053-00 REV. C Page 15 of 16...
- Page 16 Time Clock has Shut OFF) with the push of the Button 2 on the remote or flipping the Circuit 2 switch to ON. And this equipment is equipped with a Freeze Protect device which will turn on the High Speed pump when outside temperatures drop near freezing. http://www.fiberstars.com 79-15053-00 REV. C Page 16 of 16...
