Operation (Continued)
Stopping - Engine, Wheel Drive,
Blade (Continued)
Park Brake

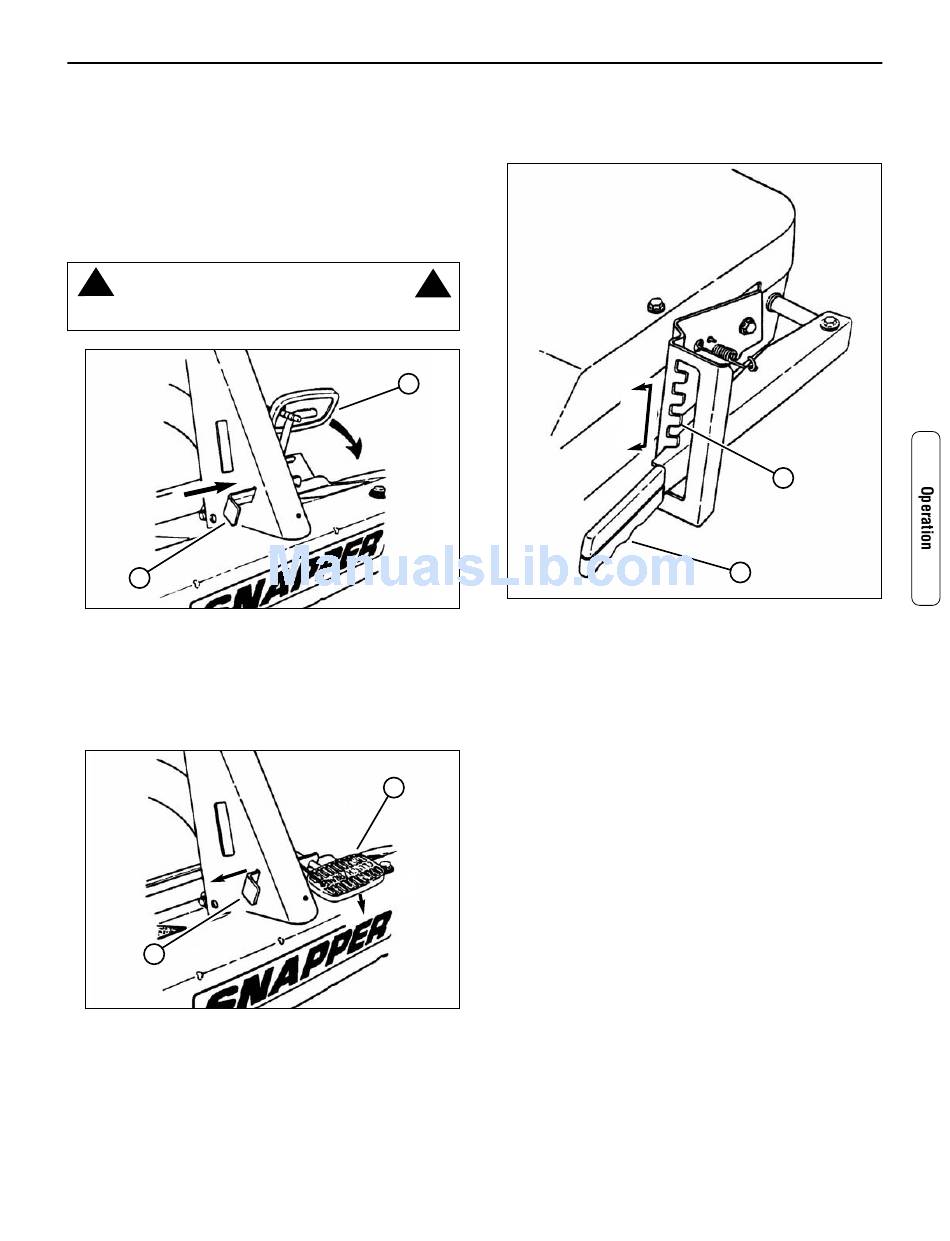

1. To set the park brake, press the clutch/brake pedal (A,
Figure 16) all the way down, slide the park brake latch
(B) all the way in to the engaged position, and release
the clutch/brake pedal. A detent in the park brake latch
will keep the park brake engaged.
!
WARNING
DO NOT park the machine on slopes.
B
Figure 16: Setting the park brake
2. Release the park brake by pressing down firmly on the
clutch/brake pedal (A, Figure 17). The park brake latch
(B) is spring-loaded, and will slide back to the disen-
gaged position unassisted.
B
Figure 17: Releasing the park brake

Cutting Height Adjustment

1. Adjust the cutting height by raising or lowering the deck
lift lever (A, Figure 18) into the desired height of cut
notch (B).
!
A
Figure 18: Cutting height adjustment
A
B
A
