2.5.3 Buzzer
•
User feedback (beep) with different sounds.
2.5.4 Installation
Fix the base-plate on the wall and then mount the reader with a switch for tamper evidence in
between . Wires required for connection to the alarm needs to be connected to the switch, prior to
mounting the reader.
Connect the D0, D1, LED, BUZZER, RELAY lines from the reader to the control panel.

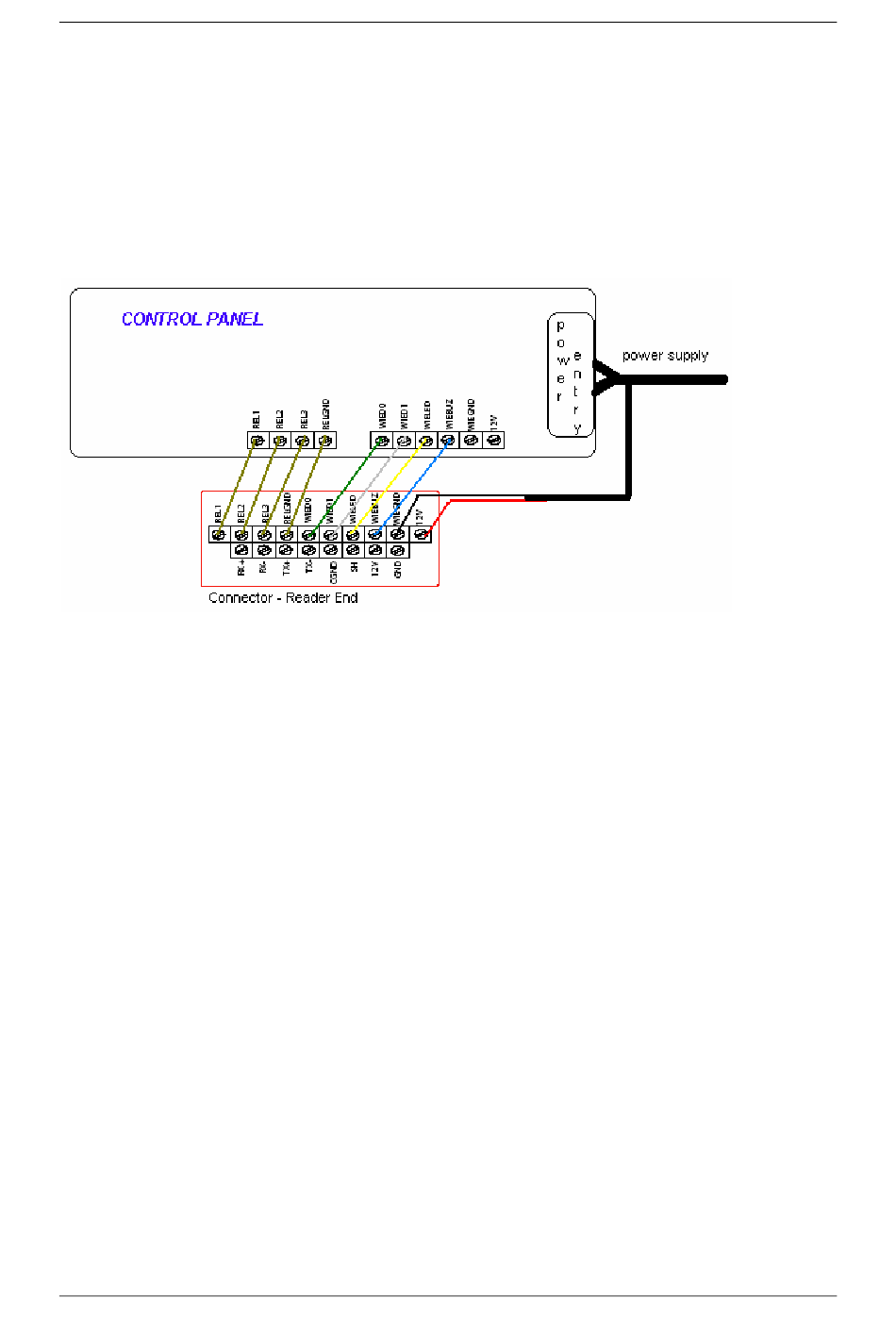

Shown below is the bottom portion of the reader.
OEM Manual – PACT-STC II
Page 5 of 10
