Atlanta BKI 109 e Operating Instructions

Department
Rev. Index
Date

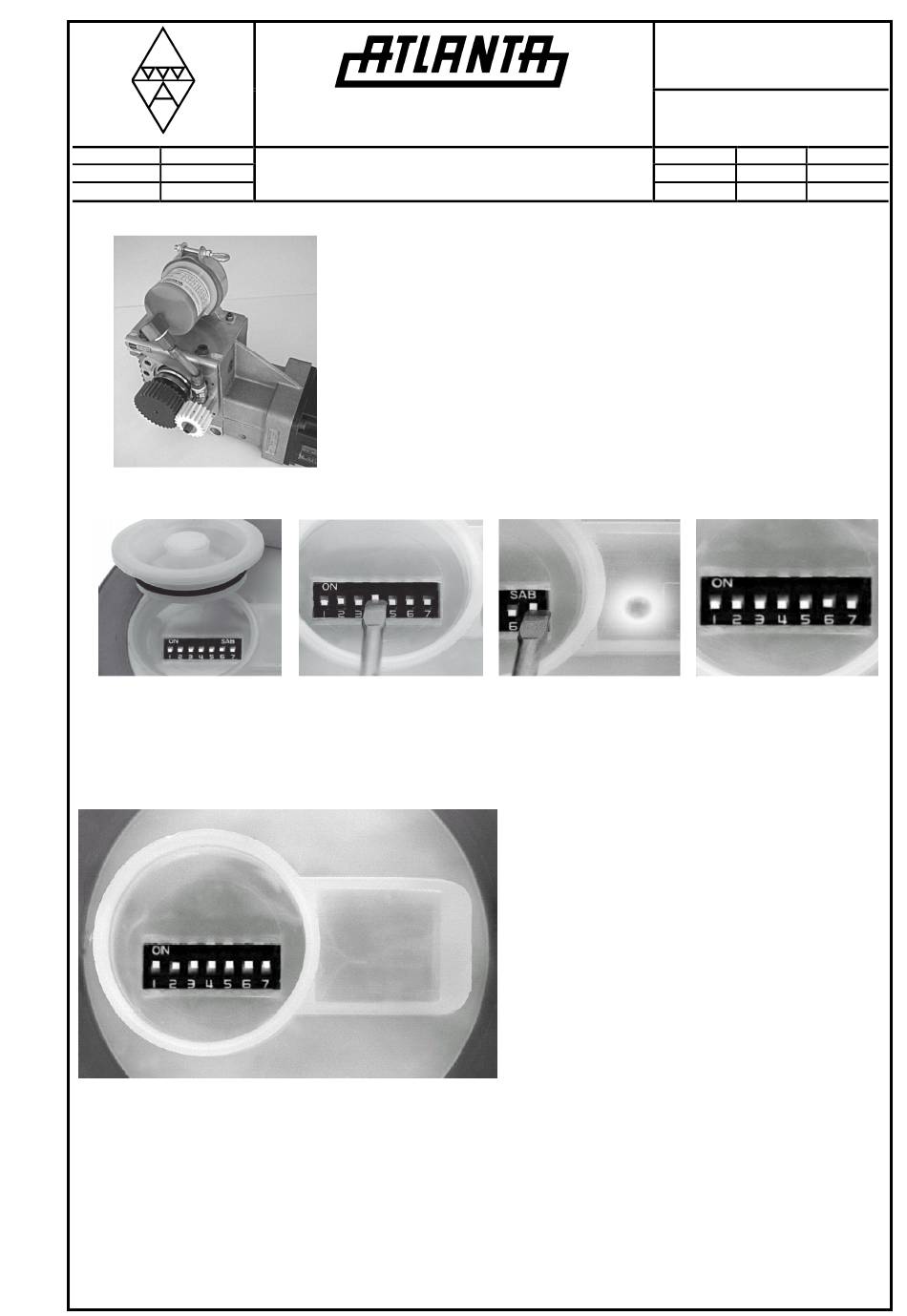

Start-up:
Remove protective lid
and switch on lube
dispenser
Tip:
Before using the lube dispenser for the first time fill the hose with grease and soak the felt gearwheel
with grease.
Visual control of the grease filling at the transparent housing of the lube dispenser.
Signal light blinks also when the lube dispenser is empty.
Optionally available are also lube dispensers with emptying monitor.
BKI 109 engl.DOC
O p e r a t i n g I n s t r u c t i o n s
Electronically controlled lubricators
3
125 cm – battery-operated
applicable to 65 91 006
Features:
Precise dosing of lubricant.
Activation, deactivation, and
setting of grease supply via micro-switch.
Automatic pressure control from 0.2 to 3 bar.
Explosive – Ex protection BVS PP 03.2138 EG
To be mounted in any position.
Can be used again and again for many years.
Refillable.
Any dosage required
can be set via DIP
switch combinations
Page
Name
released
DIP switch 7 active,
indicator light blinks
approx. every 20sec
Advantages:
Change of lubricating time or combinations of
switching times possible (see also page 2
setting combinations).
Battery-operated:
Battery capacity approx. = 2600 mA
Consumption in 1 year:
25 microamperes x 8640 h = 216 mA
Signal light:
8 microamperes x 8640 h = 69 mA
Yearly consumption = 285 mA
BKI 109 e
4100-001-04/12
1 3
Schell 18.04.12
Reichert 18.04.12
To switch off:
turn all switches
down
