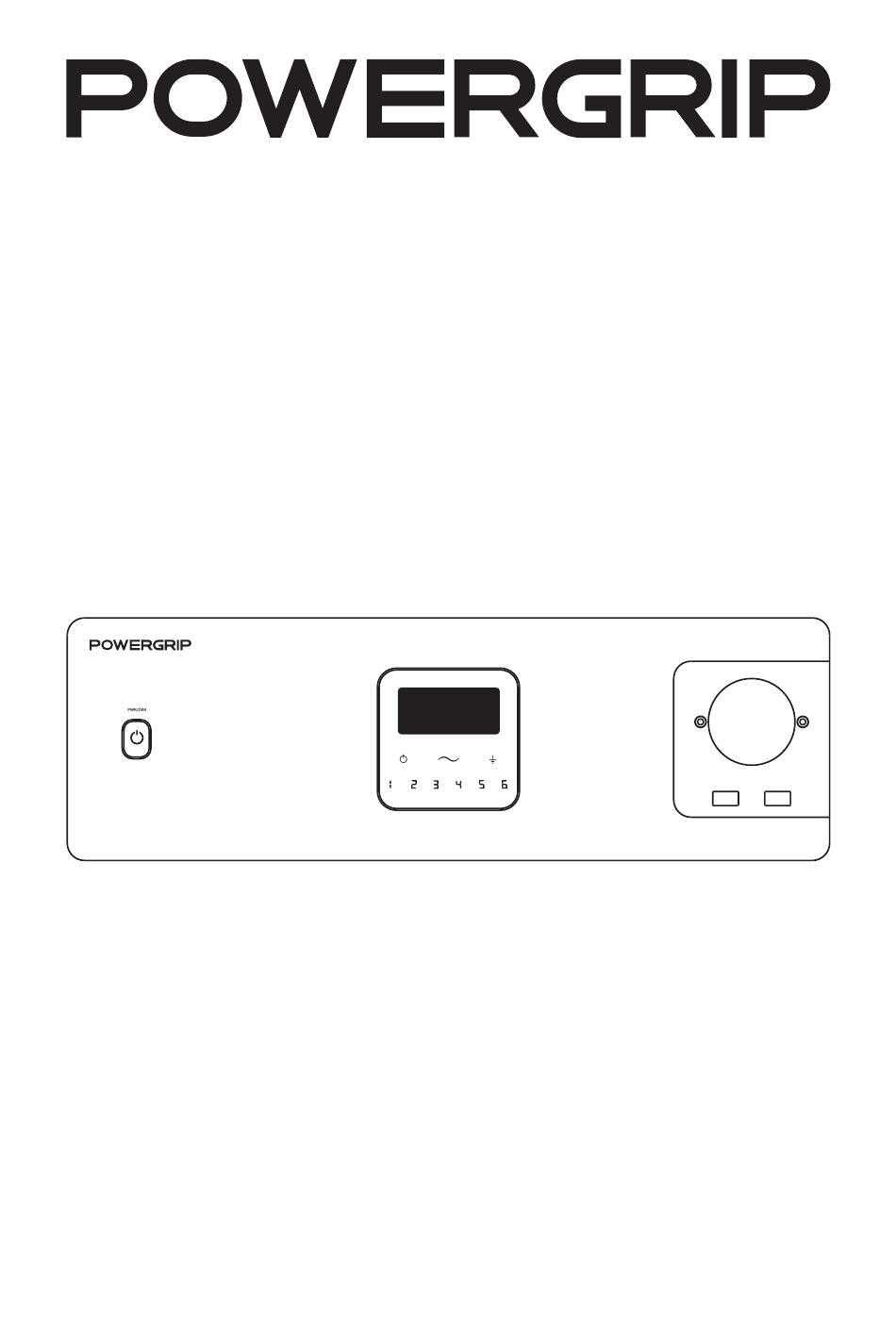

- Page 1 YG-1 POWER CONSOLE OPERATION MANUAL...
-
Page 2: General Description
GENERAL DESCRIPTION GENERAL DESCRIPTION The PowerGrip YG-1 power supply console is intended to protect equipment that is connected to it against high mains voltage and power surges, as well as against various kinds of interference. Due to the wide spread of the digital-type power supply units, there exist a multitude of high frequency interference signals that affect operation of devices with the classical power supply units. -
Page 3: Specifications
SPECIFICATIONS SPECIFICATIONS • Power supply characteristics: 190 – 256 V ~ 16 A (3680 W with 230 V) • Number of outlet sockets: 11 programmable sockets • Energy indicator in Joules: 6220 J • Maximum peak current: 187000 A • Voltage range values for an emergency power supply cut-off: ≤ 190 ±... -
Page 4: Appearance And Controls
APPEARANCE AND CONTROLS APPEARANCE AND CONTROLS FRONT PANEL 1. Power ON/OFF button is intended to operate the ON and OFF action for the groups of outlet sockets. Press and keep the Power ON/OFF button to adjust brightness of the display. The brightness can be adjusted in any mode of the power console. - Page 5 APPEARANCE AND CONTROLS 6. Protection indicator signals an activated protection from a higher (> 256 V) or lower (< 190 V) voltage values of the mains line. When this protection is activated, all the sockets are cut off and the power console stays locked for two minutes. To de- activate the voltage protection, press the Power ON/OFF button when the locking period is over.
- Page 6 APPEARANCE AND CONTROLS REAR PANEL 9. Letter "L" indicates the location of the live terminal in a socket when the proper connection indicator (7) is steadily lit up. 10. Selector switches for permanently energized socket groups. Select groups of sockets that will be energized immediately after the console is plugged into an electrical mains outlet.
- Page 7 APPEARANCE AND CONTROLS 14. Filter type for a certain socket group. The power console is equipped with three types of filters (See the “Connection of Devices” section). 15. Sockets for connection of coaxial lines. 16. Input port of trigger signals is designed for switching the console on and off through a signal sent from another device.
-
Page 8: Connection Of Devices
CONNECTION OF DEVICES CONNECTION OF DEVICES The sockets of the PowerGrip console implement various types of filters so that the best possible result is achieved for specific equipment. For connection of the devices equipped with digital power supply units the power console implements a multi-level filter, indicated as DIGITAL (applied in the first and second groups of socket outlets). -
Page 9: Safety Instructions
If you do not know which power supply outlets are adequately earthed, please contact a qualified electrician. Despite the fact that the PowerGrip console is designed to accept considerable power surges and spikes, we recommend you to disconnect the console from the wall outlet during a severe thunderstorm. - Page 10 NOTES...
- Page 11 NOTES...
- Page 12 Power Console Model: YG-1 Designed & Engineered in Russian Federation Assembled in Taiwan Manufacturer: AO «Barnsly Import» Office 10, 3 bld.1, Signalny Proezd, Moscow 127106, Russia www.powergrip.com Version 11.2017...
