Contents
Package Contents .................................................................... 2
Safety Information .................................................................. 2
Initial Setup ............................................................................... 2
Out of Box (Factory Settings) ............................................ 2
Finding IP Address Using NMU v1.9 ................................. 2
Default Login Details .......................................................... 3
Physical Dimensions ............................................................... 3
Specifications ........................................................................... 4
Hyperion Hardware Interface (Front) ................................. 5
LED Status .................................................................................. 5
Hyperion Hardware Interface (Rear) .................................. 5
Application Diagram ............................................................... 6
Ethernet Link Pin Out ............................................................. 6
Redundancy Link ..................................................................... 7
How to Access Web Interface?.............................................. 8
Hyperion Web Interface ......................................................... 9
Home Page ................................................................................ 9
Settings Page .......................................................................... 10
Change Password .............................................................. 10
Ports Page ................................................................................ 11
Link Aggregation .................................................................... 12
Administration ........................................................................ 13
Restore to factory defaults (web interface) ............... 13
Restore to factory defaults (reset button) .................. 14
Reboot .................................................................................. 14

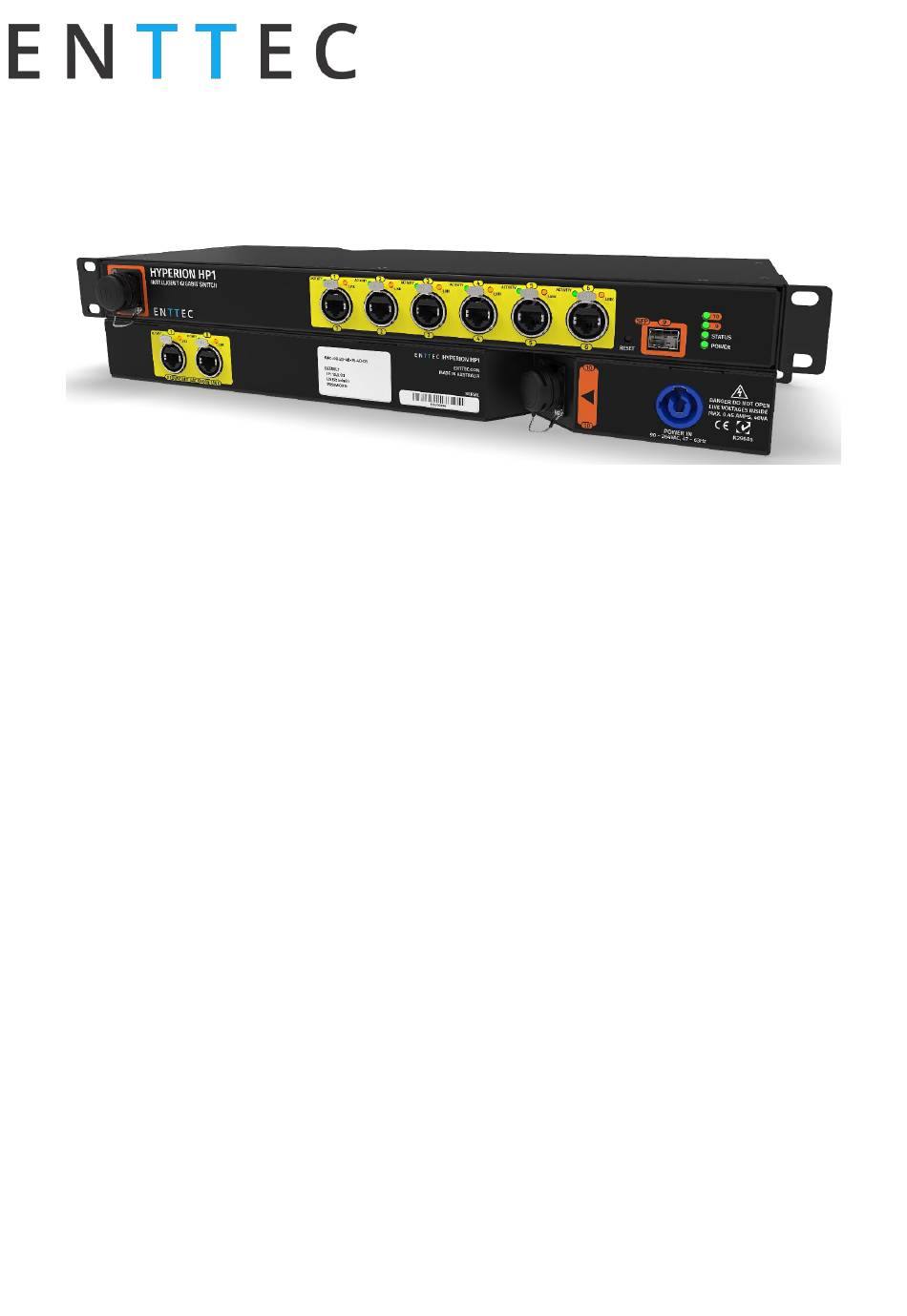

January 19
Hyperion
INTELLIGENT GIGABIT SWITCH
Backup ..................................................................................14
Restore .................................................................................14
Firmware Update................................................................ 15
Tips and Tricks ........................................................................ 17
Hyperion not found by NMU ........................................... 17
Settings do not Save ......................................................... 17
Redundancy Link Doesn't work ...................................... 17
Connection Lost ................................................................ 18
Device connected to Hyperion, not found ................. 18
Device not discovered on reconnection ..................... 18
Settings for your Computer .............................................19
Steps for Windows 7 ......................................................19
Steps for MacOS ............................................................ 20
Available Models .................................................................... 21
Ordering Information ............................................................ 21
Accessories and Recommended Products....................... 21
ID: 3809208
Hyperion User Manual
51164
For latest version visit:
www.enttec.com
1
Advertisement
Table of Contents
Related Manuals for Enttec Hyperion 71025
Summary of Contents for Enttec Hyperion 71025
-
Page 1: Table Of Contents
Hyperion User Manual 51164 For latest version visit: www.enttec.com Hyperion INTELLIGENT GIGABIT SWITCH Backup ..................14 Contents Restore .................14 Package Contents ..............2 Firmware Update..............15 Safety Information ..............2 Tips and Tricks ................ 17 Initial Setup ................2 Hyperion not found by NMU ........... 17 Out of Box (Factory Settings) .......... -
Page 2: Package Contents
Gateway: 0.0.0.0 • Do not remove the cover, there are no user • Open ENTTEC NMU. If prompted with serviceable components inside multiple networks, select the correct one (identified by the IP address of your •... -
Page 3: Default Login Details
Hyperion User Manual 51164 For latest version visit: www.enttec.com Default Login Details • Type in the default IP shown on NMU into The log in details for the device are as follows: any browser • Username: admin • Log into the device as shown in window below: •... -
Page 4: Specifications
21.78 in x 9.72 in x 4.37 in IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Ethernet Compliance Gigabit Ethernet Due to continuous improvements and innovations of all ENTTEC products, specifications and features are subject to change without notice. January 19 ID: 3809208... -
Page 5: Hyperion Hardware Interface (Front)
Hyperion User Manual 51164 For latest version visit: www.enttec.com Hyperion Hardware Interface (Front) LED Status Power LED Status LED Operation Green (static) Amber Device loading firmware Green (Static) Green (Blinking) Normal operation Green (Static) No lit Rebooting Hyperion Hardware Interface (Rear) -
Page 6: Application Diagram
Hyperion User Manual 51164 For latest version visit: www.enttec.com Application Diagram Ethernet Link Pin Out Colour White/Orange Orange White/Green Blue White/Blue Green White/Brown Brown January 19 ID: 3809208... -
Page 7: Redundancy Link
Hyperion User Manual 51164 For latest version visit: www.enttec.com Redundancy Link Redundancy link is the ability of two ports of Hyperion to be connected to the same networking device. Redundancy link will automatically take over the signal within milliseconds, once link failure is detected. -
Page 8: How To Access Web Interface
Hyperion User Manual 51164 For latest version visit: www.enttec.com How to Access Web Interface? 1. Open any modern web browser, such as Chrome, Firefox, Safari or Edge 2. To access the web interface type in the assigned IP address of Hyperion e.g: 10.10.0.201 3. -
Page 9: Hyperion Web Interface
Hyperion User Manual 51164 For latest version visit: www.enttec.com Hyperion Web Interface The Hyperion web interface has the following sections: 1. Home 3. Ports 2. Settings 4. Administration Home Page Home page shows the followings information: • Gateway IP •... -
Page 10: Settings Page
Hyperion User Manual 51164 For latest version visit: www.enttec.com Settings Page The setting pages permits the setting of: Change Password The change password feature is under the Settings • System name - Assign a device name page as shown in screen below: •... -
Page 11: Ports Page
Hyperion User Manual 51164 For latest version visit: www.enttec.com Ports Page • Shows the status and speed of: • Flow control – disabled by default. Supports o etherCON ports flow control when enabled. o opticalCON Duo port (model • MTU – specify the largest network layer... -
Page 12: Link Aggregation
Hyperion User Manual 51164 For latest version visit: www.enttec.com The network statistics for each port can be observed by clicking on the speed link indicated above Link Aggregation • Allows two ports to be linked into a Trunk. A total of 3 trunks are allowed •... -
Page 13: Administration
Hyperion User Manual 51164 For latest version visit: www.enttec.com Administration The Administration page enables: • Firmware update of the switch • Backup of the switch configurations • Restore the switch • Reboot the device • Reset to factory defaults Restore to factory defaults (web interface) •... -
Page 14: Restore To Factory Defaults (Reset Button)
Hyperion User Manual 51164 For latest version visit: www.enttec.com Restore to factory defaults (reset button) To restore using the reset button (front of the unit) • Press and hold the reset button, till the status led turns off • Release the rest button, and wait for Hyperion to restore (takes 60 seconds) •... -
Page 15: Firmware Update
Firmware Update It is recommended to always update your Hyperion units to the latest firmware. Firmware files are released and available on www.enttec.com/hyperion. Firmware update option is under the Administration Menu. The steps for updating firmware are listed below: 1. Select the firmware to be loaded to the device (must be the correct firmware file for Hyperion only) 2. - Page 16 Hyperion User Manual 51164 For latest version visit: www.enttec.com During step one and two: status LED will continue to blink. At step three, status LED will switch off for 30 seconds, then turn amber for roughly 10 seconds. It could take between 30-60 seconds for firmware update to complete. It is important, that you do not interrupt the firmware update procedure at any time.
-
Page 17: Tips And Tricks
Hyperion User Manual 51164 For latest version visit: www.enttec.com Tips and Tricks Hyperion not found by NMU • If you just reset Hyperion (factory restore), it might not be discovered by NMU. • However, after a reset, it will always be set to IP: 192.168.0.10 •... -
Page 18: Connection Lost
Hyperion User Manual 51164 For latest version visit: www.enttec.com Connection Lost • Is Hyperion still powered on and connected to the network? • Make sure the connections are good, and re-power Hyperion – if you can’t talk to it Device connected to Hyperion, not found To troubleshoot do the following: •... -
Page 19: Settings For Your Computer
Hyperion User Manual 51164 For latest version visit: www.enttec.com Settings for your Computer Steps for Windows 7 1. Click Start>Control Panel>Network and Internet>Network and Sharing Center>Change adapter settings 2. Select Internet Protocol Version 4 (TCP/IPv4), then click Properties Select Internet Protocol Version 4 (TCP/IPv4) -
Page 20: Steps For Macos
Hyperion User Manual 51164 For latest version visit: www.enttec.com Steps for MacOS 1. Click System Preferences -> Network -> Ethernet 2. Select Configure IPv4: Manually, and enter values as shown below January 19 ID: 3809208... -
Page 21: Available Models
Hyperion User Manual 51164 For latest version visit: www.enttec.com Available Models Ordering Information Model Handle Description 71025 HP1-82F Hyperion Gigabit Switch with OpticalCON Duo (Front) 71026 HP1-81 Hyperion Gigabit Switch NO OpticalCON 71027 HP1-82R Hyperion Gigabit Switch with OpticalCON Duo (Rear) -
Page 22: Accessories And Recommended Products
Hyperion User Manual 51164 For latest version visit: www.enttec.com Accessories and Recommended Products Description Gigabit LC Fibre Optic Hyperion SFP Module 51155 (SFP-1GE-LX-1310nm) 73910 US Mains plug powerCON cable 73911 UK Mains plug powerCON cable 73912 EU Mains plug powerCON cable...
