Contents
Package Contents .................................................................... 2
Safety Information .................................................................. 2
Physical Dimensions ............................................................... 3
Specifications ........................................................................... 4
Hyperion Hardware Interface ............................................... 4
Application Diagram ............................................................... 6
Ethernet Link Pin Out ............................................................. 6
Redundancy Link ..................................................................... 7
Initial Setup ............................................................................... 2
Out of Box (Factory Settings) ............................................ 2
Change Device IP ................................................................. 2
Default Login Details .......................................................... 2
How to Access Web Interface?.............................................. 8
Hyperion Web Interface ......................................................... 9
Home Page ................................................................................ 9
Settings Page .......................................................................... 10
Change Password .............................................................. 10
Ports Page ................................................................................ 11
Administration ........................................................................ 12
Backup .................................................................................. 13
Restore ................................................................................. 13
Restore to factory defaults (web interface) ............... 12
Restore to factory defaults (reset switch) .................. 13
Firmware Update ............................................................... 13
Ordering Information............................................................ 15
November 17

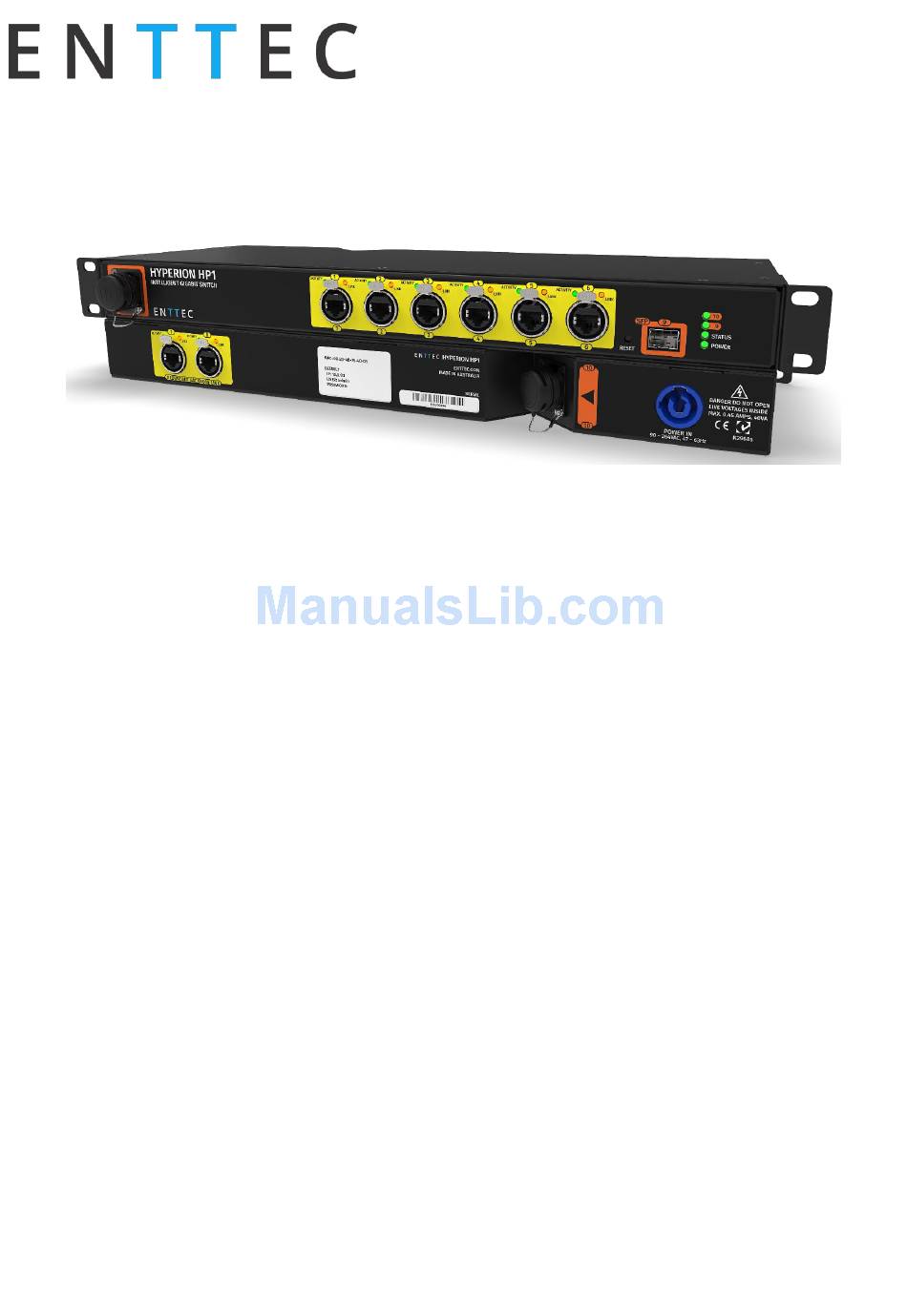

Hyperion
INTELLIGENT GIGABIT SWITCH
ID: 3809208
Hyperion User Manual
51164
For latest version visit:
www.enttec.com
1
Advertisement
Table of Contents
Related Manuals for Enttec Hyperion
Summary of Contents for Enttec Hyperion
-
Page 1: Table Of Contents
Contents Package Contents ..............2 Safety Information ..............2 Physical Dimensions ............... 3 Specifications ................4 Hyperion Hardware Interface ..........4 Application Diagram ............... 6 Ethernet Link Pin Out ............. 6 Redundancy Link ..............7 Initial Setup ................2 Out of Box (Factory Settings) ..........2 Change Device IP .............. -
Page 2: Package Contents
• Power-supply cords should be routed so that they are not likely to be walked on or pinched Initial Setup Out of Box (Factory Settings) All Hyperion devices come with the following default settings: • IP: 192.168.0.10 • Subnet Mask: 255.255.255.0 •... -
Page 3: Physical Dimensions
Hyperion User Manual 51164 For latest version visit: www.enttec.com Physical Dimensions November 17 ID: 3809208... -
Page 4: Specifications
Flow Control, IEEE 802.3ab Gigabit Compliance MAC Address Ethernet 8192 table limit Due to continuous improvements and innovations of all Maximum frame 9216 B ENTTEC products, specifications and features are length subject to change without notice. Hyperion Hardware Interface (Front) November 17 ID: 3809208... -
Page 5: Led Status
Hyperion User Manual 51164 For latest version visit: www.enttec.com LED Status Power LED Status LED Operation Green (static) Amber Device loading firmware Green (Static) Green (Blinking) Normal operation Green (Static) No lit Rebooting Hyperion Hardware Interface (Rear) November 17 ID: 3809208... -
Page 6: Application Diagram
Hyperion User Manual 51164 For latest version visit: www.enttec.com Application Diagram Ethernet Link Pin Out Colour White/Orange Orange White/Green Blue White/Blue Green White/Brown Brown November 17 ID: 3809208... -
Page 7: Redundancy Link
Redundancy Link Redundancy link is the ability of both port 7 and port 8 of Hyperion to be connected to the same networking device. This ensures that the network connection is maintained in case of failure of one of the two links. -
Page 8: How To Access Web Interface
1. Open any modern web browser, such as Chrome, Firefox, Safari or Edge 2. To access the web interface type in the assigned IP address of Hyperion e.g: 10.10.0.201 3. You will be prompted to login using the following details: •... -
Page 9: Hyperion Web Interface
Hyperion User Manual 51164 For latest version visit: www.enttec.com Hyperion Web Interface The Hyperion web interface has the following sections: 1. Home 3. Ports 2. Settings 4. Administration Home Page Home page shows the followings information: • Mac address •... -
Page 10: Settings Page
Hyperion User Manual 51164 For latest version visit: www.enttec.com Settings Page Change Password The setting pages enables the following: The change password feature is under the Settings • System name - Assign a device name page as shown in screen below: •... -
Page 11: Ports Page
Hyperion User Manual 51164 For latest version visit: www.enttec.com Ports Page • specified Shows the status and speed of all the etherCON ports • Flow control – disabled by default. Supports • flow control when enabled. Shows the status and speed of all the opticalCON ports •... -
Page 12: Administration
Hyperion User Manual 51164 For latest version visit: www.enttec.com Administration The Administration page enables: • Firmware update of the switch • Backup of the switch configurations • Restore the switch • Reboot the device • Reset to factory defaults Restore to factory defaults (web interface) •... -
Page 13: Backup
Hyperion User Manual 51164 For latest version visit: www.enttec.com Restore to factory defaults (reset switch) Hold down reset button in front of device until status light switches off. This will: • Resets password to default of no password • Resets device IP to default of 192.168.0.10 •... -
Page 14: Firmware Update
Firmware update option is under the Administration Menu. The steps for updating firmware are listed below: 1. Select the firmware to be loaded to the device (must be the correct firmware file for Hyperion only) 2. Click on Update Firmware button WARNING: Please do not interrupt or power off your Hyperion unit, during a firmware update, as this can brick your Hyperion unit. - Page 15 Hyperion User Manual 51164 For latest version visit: www.enttec.com During step one and two: status LED will continue to blink. At step three, status LED will switch off for 30 seconds, then turn amber for roughly 10 seconds. It could take between 30-60 seconds for firmware update to complete. It is important, that you do not interrupt the firmware update procedure at any time.
-
Page 16: Ordering Information
HP1-81 Hyperion Gigabit Switch NO OpticalCON 71027 HP1-82R Hyperion Gigabit Switch with OpticalCON (Rear) 51155 Gigabit LC Fibre Optic Hyperion SFP Module (SFP-1GE-LX-1310nm) 73910 US Mains plug powerCON cable 73911 UK Mains plug powerCON cable 73912 EU Mains plug powerCON cable...
