On-board electrical system/power supply

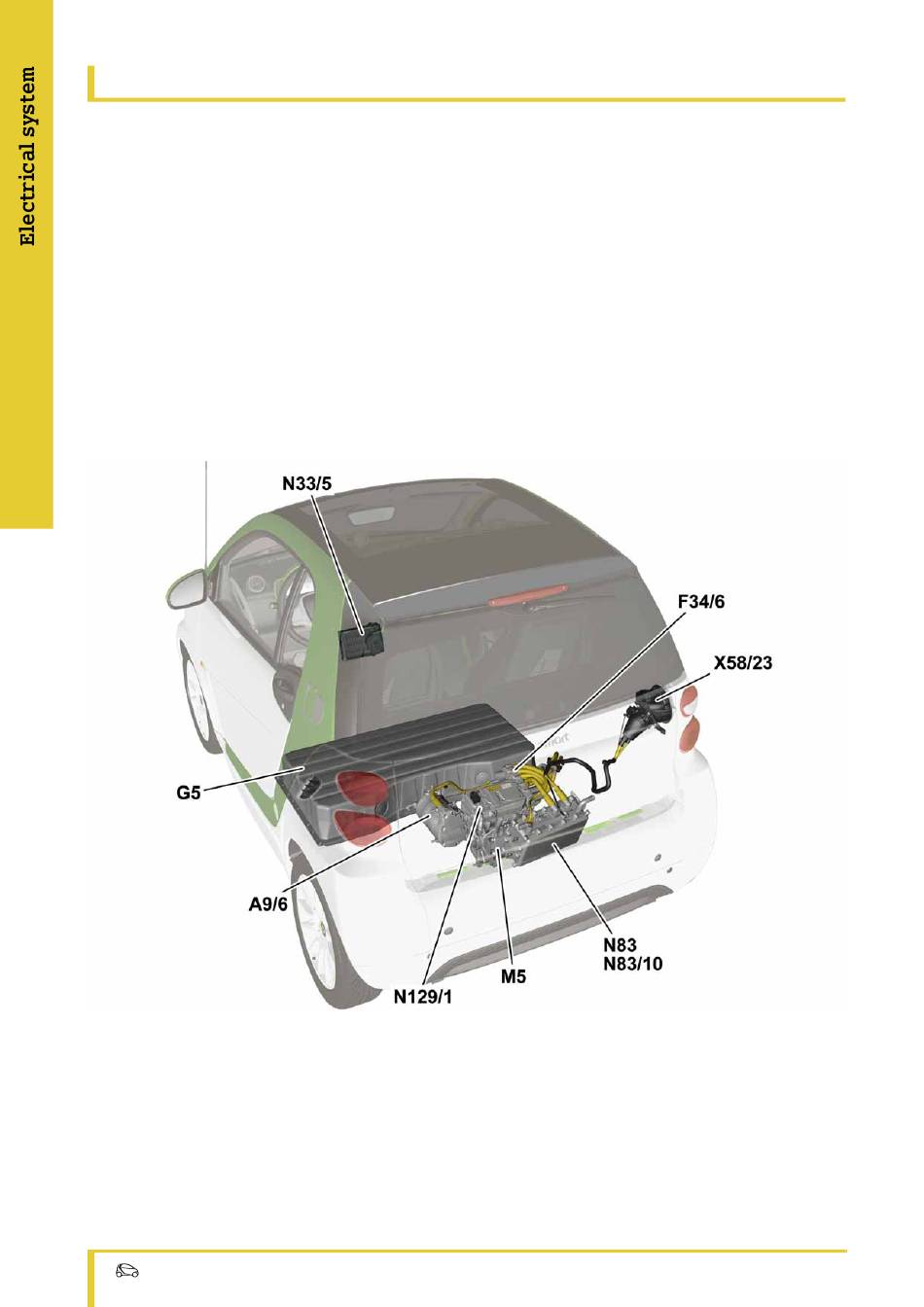

Overview of high-voltage components
The high-voltage on-board electrical system on
the smart fortwo electric drive consists of the
following high-voltage components:
• Electric drive motor
• Power electronics control unit
• High-voltage battery
• Electric refrigerant compressor
• High-voltage PTC heater
• High-voltage adapter plate fuse box
• On-board charger
A9/6
Electric refrigerant compressor
F34/6
High-voltage adapter plate fuse box
G5
High-voltage battery
M5
Electric drive motor
N33/5
High-voltage PTC heater
20
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
N83
On-board charger 3kW
N83/10 On-board charger 22 kW
(with code (908) 22 kW on-board charger)
N129/1 Power electronics control unit
X58/23 Charger feed-in socket
P54.00-2890-00
