Envertech EnverBridge EVB202 User's Operating Manual
Hide thumbs Also See for EnverBridge EVB202:

Advertisement

User Operating Manual
Model Number: EVB202
Zhejiang Envertech Corporation Ltd.
Zhejiang Envertech Corporation Ltd.
Tel:+86 579 8926 6326
Email:info@envertec.com
All rights reserved
Add:24th Floor, Jintong Mansion,
Center of Headquarters, Yongkang City,
Zhejiang Province, China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EnverBridge EVB202 and is the answer not in the manual?

Questions and answers

Summary of Contents for Envertech EnverBridge EVB202

  • Page 1 User Operating Manual Model Number: EVB202 Zhejiang Envertech Corporation Ltd. Zhejiang Envertech Corporation Ltd. Tel:+86 579 8926 6326 Email:info@envertec.com All rights reserved Add:24th Floor, Jintong Mansion, Center of Headquarters, Yongkang City, Zhejiang Province, China...
  • Page 2: Table Of Contents

    Content Overview.................... Brief Introduction....................Features......................Key Equipments....................Installation Guide................System Diagram....................Parts and Features..................2.2.1 Parts........................2.2.2 Structure of EVB202..................2.2.3 Installation Steps....................2.2.4 Main Functions....................2.2.5 Technical Parameters..................Register a new account..............Add devices..................Monitoring Webportal Interface..............2.5.1 Overview Page....................2.5.2 Real-time Monitoring..................
  • Page 3: Overview

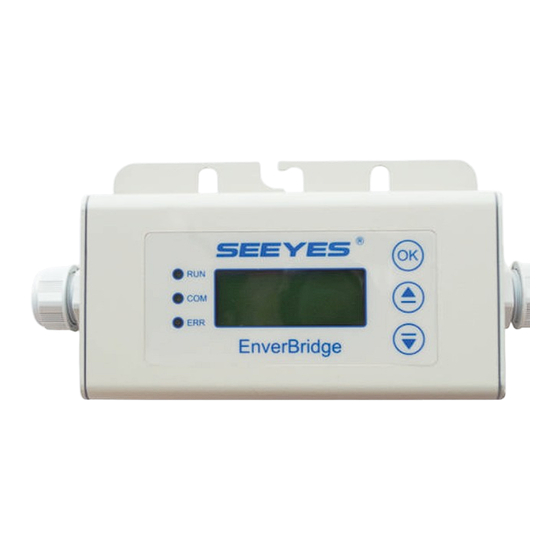

    1.1 Brief Introduction The monitoring device EVB202 is the commnication interface of microinverters, which can effectively communicate with any Envertech microinverter and transmit the latest information of the microinverter to the server. Users can have access to data through a simple,flexible and convenient way.
  • Page 4: Installation Steps

    2.3 Register a new account EnverPortal, an intelligent monitoring system developed by Envertech, monitors the performance of the whole Envertech microinverter system as well as that of every Step 4 : module in the system. New users need to register an account.
  • Page 5: Add Devices

    Click “Next”, and create a power station 2.5 Monitoring Webportal Interface 2.5.1 Overview Page Smart Monitoring Webportal——EnverPortal,for single power station 2.5.2 Real-time Monitoring Click “Realtime” button to enter the realtime data page. 2.4 Add devices Select “Settings”→ “System Info”→ “Device Manager”,and click “Add”to enter the interface.
  • Page 6: Begin To Use

    Press “OK”button (Backlight lights up automatically) to enter [Menu Interface] When EVB202 displays the Start-up interface, the first line shows the company which is shown as shown below. name “Envertech” and the second line shows the company website * Monitor Interface “www.envertec.com”.
  • Page 7 Step 3. Select “MI Status”, it will show below message if there is an error. The third line displays the problem microinverter ID and fault description. After checking, press “OK” to return to the main menu. 15 16 Without error,it shows as below: Step 1.
  • Page 8: Explanation Of Malfunction

    Select “YES”and press “OK”to enter the parameter setting interface. The setting time is about 1~2 minutes. 15 16 After successful setting, the screen will be shown as below. The number after “MI” is the quantity of the microinverters that complete setting. This interface will remain until the user presses “OK”...
  • Page 9: Mi Quick Binding

    3.2 MI Quick Binding 3.2.1 Login 2. Input the microinverter IDs which need to be added to the template. On the left 3.2.2 Select“System Info”under “Settings”, and click “Device Manager”. side of the following template is the EnverBridge ID, and on the right side is the microinverter ID.
  • Page 10: Basic Operations

    NOTE The “Note” mark in this manual indicates important product information. WARNING Do not attempt to repair the Envertech monitoring device without authorization, because it does not contain parts available for users to repair. If the microinverter fails, please contact Envertech customer service.

Table of Contents
