Summary of Contents for eisenblatter POLY-PTX 500+

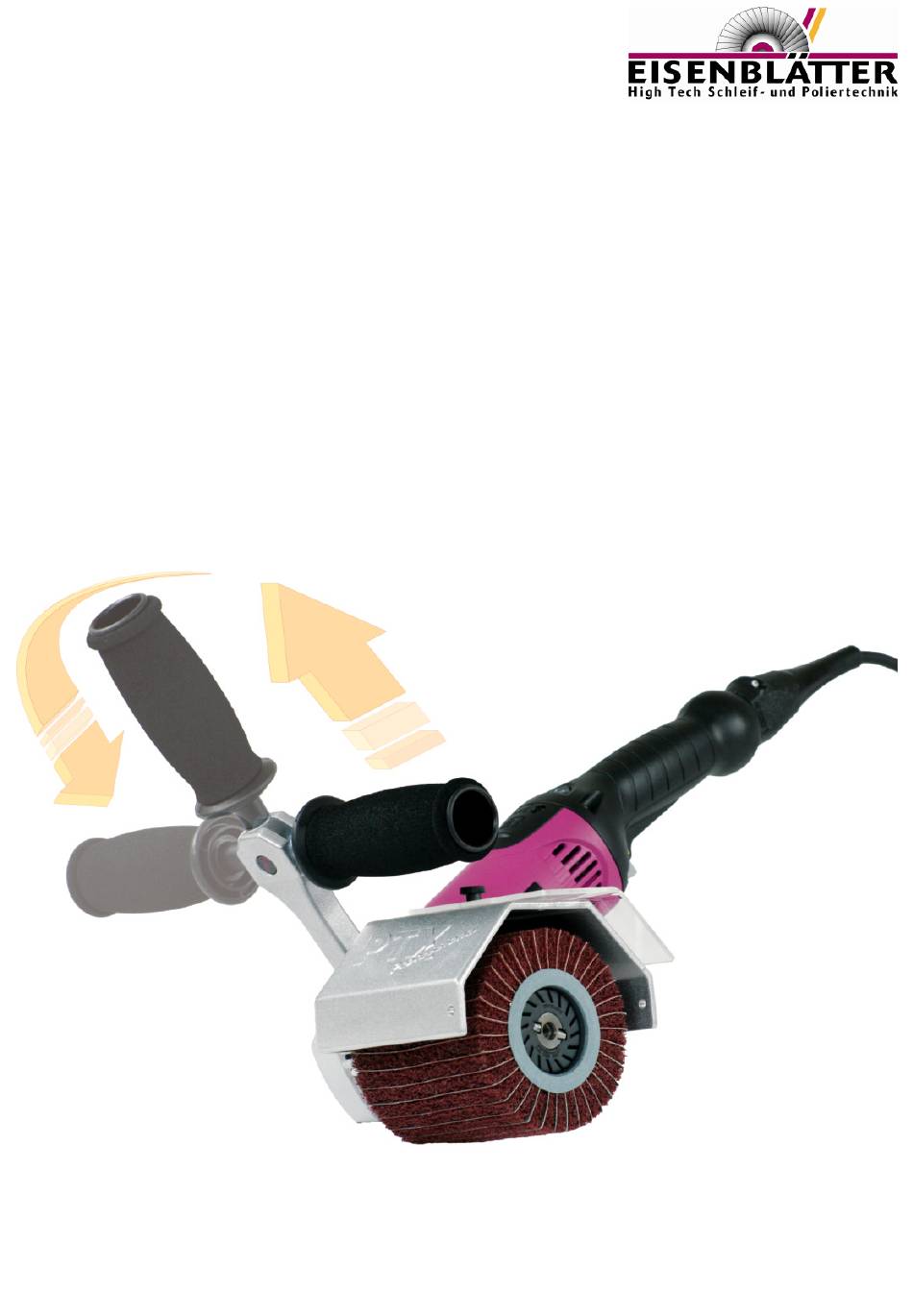

  • Page 1 ® POLY-PTX Operating instructions Detail drawing Spare part list...
  • Page 2 ® POLY-PTX You have made a good decision by buying our PTX 500 . This grinding and polishing machine with its large variety of tools accessories can be universally used for most surface problems. Due to its ergonomic form and low weight, i t is particularly easy to operate. The new “Quick-Lock”-cable system allows a quick change of the machines ( e.
  • Page 3: Maintenance

    ® POLY-PTX Suction A s an accessory , our PTX-suction cover (A rt.-No. 40005) with a conical connecting piece for industrial v acuum cleaners is av ailable. It can be quick ly fixed to the protectiv e cov er by means of 3 k nurled-head screws. D) Grinding belt accessory 1.
  • Page 4 ® POLY-PTX Typ 1.600 - 220 V + 110 V...
  • Page 5 ® POLY-PTX Typ 1.600 - 220 V + 110 V Model 220 V Pos. Item-No. Designation Pos. Item-No. Designation 3 52003-3 Screw 200 52200-3 Gear box 4 52004-3 QUICK-LOCK cable 4,0m 201 52201 sleeve 100 52100-3 Motor-plastic case 204 52204 Ball bearing 101 52101-3 Service case cover...
  • Page 6 Gerd Eisenblätter GmbH Jeschkenstr. 10 DE-82538 Geretsried ® CE 94 Anlage zur POLY-PTX - manual ENGLISH NEDERLANDS EC DECLAR A TION OF CONFORMITY EC-KONFORMITEITSVERKLARING We declare under our sol e responsi bility that this product is in conformity Wij verkl aren op eigen verantwoordi ng, dat dit produkt voldoet aan de with the following standards or standardi- volgende normen of normatieve dokumenten: EN 60745, EN 55014-1, zation doc uments: EN 60745, EN 55014-1, EN 55014-2,...
