ICP CON I-7550E User Manual

Profibus/ethernet converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

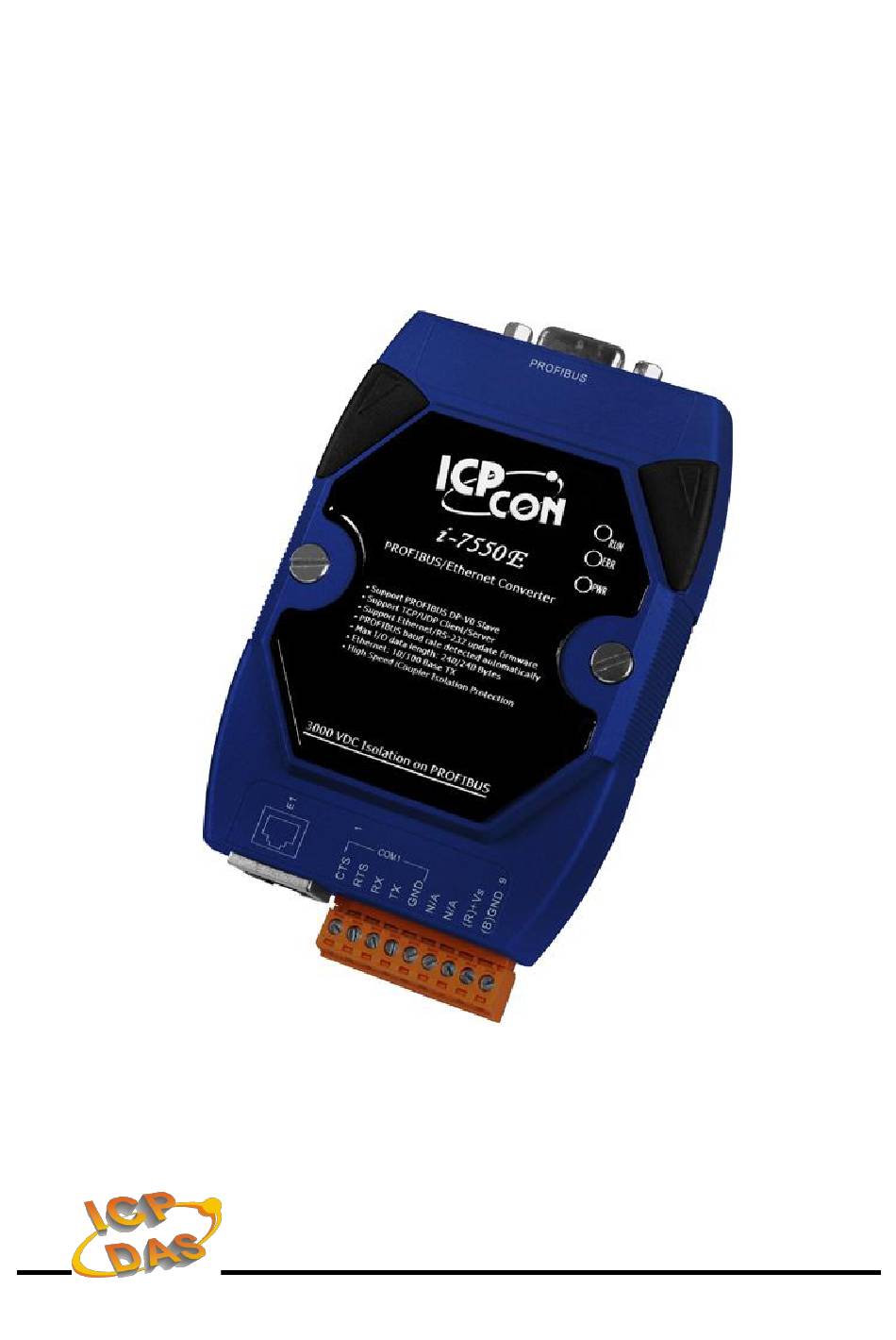

I-7550E PROFIBUS/Ethernet Converter
User's Manual
High Quality, Industrial Data Acquisition, and Control Products
I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
PAGE: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-7550E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP CON I-7550E

Summary of Contents for ICP CON I-7550E

  • Page 1 I-7550E PROFIBUS/Ethernet Converter User's Manual High Quality, Industrial Data Acquisition, and Control Products I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 1...
  • Page 2 Copyright 2014 by ICP DAS. All rights are reserved. Trademark The names used for identification only may be registered trademarks of their respective companies. List of Revision Date Author Version Revision 2014/06/10 Luke 1.00 Release I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 2...

  • Page 3: Table Of Contents

    4.3 The Configuration of the modules 4.4 Diagnostic messages 4.5 Establish connection with I-7550E 4.6 Data exchange example—I-7550E is as TCP server. 4.7 Data exchange example—I-7550E is as TCP Client 4.8 Data exchange example—I-7550E is as UDP Server 4.9 Data exchange example—I-7550E is as UDP Client 5.

  • Page 4: Introduction

    PROFIBUS is one of famous protocols and is wildly used in the fields of factory and process automation. Ethernet is a most popular computer networking technology for local area networks. The I-7550E is a PROFIBUS to Ethernet converter. By using this module, users can easily put the Ethernet devices into PROFIBUS network.

  • Page 5: Specification

    ● Module specs: Dimensions: 119mm x 72mm x 33mm ● Operating temperature: -25 ~ 75 ºC ● Storage temperature: -30 ~ 85 ºC ● Humidity：5 ~ 95% RH, non-condensing ● I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 5...
  • Page 6 LED Status Indicators(Table 1) ● Table 1 LED status indicator  Show the power state PWR LED  Show error state ERR LED  Show communication state of PROFIBUS RUN LED I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 6...

  • Page 7: Hardware

    2. Hardware 2.1 Block Diagram of I-7550E Figure 2 Block diagram of I-7550E 2.2 Pin Assignment Figure 3 Pin assignment of I-7550E I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 7...
  • Page 8 Power supply ground for the first node and the last node +5V Power Supply for the first node and the last I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 8...

  • Page 9: Wiring

    RS-232. The following section describes the connection interface of the I-7550E. 2.3.1 RS-232 connection The RS-232 port of the I-7550E has got three pins. The wiring of the RS-232 device with the RS-232 port of the I-7550E is shown in Figure 4. I-7550E...
  • Page 10 Figure 5 Ethernet connection 2.3.3 PROFIBUS Connection The PROFIBUS interface of the I-7550E is a DB9 female connector. The connector uses the standard PROFIBUS 9 pin assignment. It is recommended to use a standard PROFIBUS cable and connector (DB9 male). As with every serial bus the rate of safe data transmission in a PROFIBUS network decreases with increasing distance between Master and Slave.
  • Page 11 Figure 7. Figure 6 PROFIBUS connection Terminator ON Terminator OFF Terminator Switch Figure 7 PROFIBUS connector I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 11...

  • Page 12: Setting The Profibus Address

    2.4 Setting the PROFIBUS Address The station address of I-7550E can be set by using either the DIP switch or by writing it directly to the EEPROM. The DIP switch covers a range from 0 to 255.

  • Page 13: Led Status Indicator

    Slave a new address. 2.5 LED status indicator The I-7550E provides three LEDs to indicate the statuses of the I-7550E module. The position of LEDs and descriptions are shown in Table 8 and Figure 9.

  • Page 14: Normal/Setting Dip Switch

    Figure 9 LED position 2.6 Normal/Setting DIP switch There is a DIP switch on the back of the I-7550E module, as shown in Figure 10. The DIP switch is used to set the I-7550E module works in operation mode or setting mode.
  • Page 15 In this case, the I-7550E module can communicate with Ethernet devices. When the user sets the DIP switch to the “Setting” position, the I-7550E module will set the password of Web Configuration and local IP as default value temporarily. At this time, if user doesn’t change any local IP settings/Password and switch back to “Normal”...

  • Page 16: Communication Protocol Transfer Theorem

    The Maximum input/output length is 240 Bytes, but the first 20 Bytes of input/output are reserved for I-7550E(We call it as “System setting module”).The I-7550E supports the Maximum Ethernet data length is 1460 Bytes, so if the I- 7550E receives the data that its length is greater than configured input length, the I-7550E will partition data into several sections according to configured input length.
  • Page 17 The user needs to fill these values of output area of system setting module, and the I-7550E will handle the data according to these value. When the I-7550E receives the data from Ethernet device, it will put the information in the input area of “System setting module”.
  • Page 18 Read/Write mode (Set Byte 0 of output area in “System setting module” as 1). In the same time, the user needs to change the value of Trigger byte then the I-7550E will transfer data to Ethernet device (Please refer to section 3.3.1) as shown Figure 14.
  • Page 19 If the user wants to send the data that its length is over configured output length of PROFIBUS to Ethernet device, the I-7550E provides a method that helps the user to combine several packages to one. After receiving all package, the I-7550E combine them and transfers to Ethernet device as shown Figure 15 and Figure 16.

  • Page 20: Ethernet Protocol

    The I-7550E provides Web Configuration for the user to configure the settings of TCP/UDP via browser (Please refer to section 5.2). The I-7550E supports TCP and UDP protocol and it can be as Server or Client. When the I-7550E is TCP/UDP server, it allows the maximum 8 connections from client devices.
  • Page 21 Ethernet FIFO buffer. In every Data exchange cycle, the I-7550E will move the first exiting data from FIFO to PROFIBUS Input Data area as shown Figure 19 and Figure 20. The first 20 Bytes are reserved for the I-7550E that stored the information of the data from Ethernet device.
  • Page 22 Figure 20 Data flow of Ethernet (2)  Partition Method When the size of data is over configured Input Data length, the I-7550E will partition this data into several packages. In every data exchange cycle, the I- 7550E puts 1 partition package into PROFIBUS Input Data area. After all of the packages are done, the I-7550E will process next data from Ethernet device as shown Figure 21 and Figure 22.

  • Page 23: Profibus I/O Data Area

    I-7550E then the I-7550E could handle this data according to this information. So the I-7550E reserves the first 20 Bytes of Input/output data area and designs the protocol of communication for data exchange. That means the user must arrange and configure the “System Setting Module”...
  • Page 24 Byte module When the value of Byte 0 is zero (Idle Mode), the I-7550E won’t transfer data from PROFIBUS Master to Ethernet device. But it still can receive data from Ethernet device and will put data into the Ethernet FIFO buffer.
  • Page 25 Byte 0: Operation Mode 0: Idle mode. In this mode the I-7550E won’t transfer any output data, but it still receive input data when Ethernet device transfers data to the I-7550E. The data from Ethernet will be stored in FIFO buffer.
  • Page 26 Byte 3 in section 3.3.2 Input Data Area) will be clear as zero. Byte 3: Connection ID The user must set this byte to let the I-7550E know which Ethernet device the data will be sent. This value is depended on “Server IP setting” and “Client IP setting”...
  • Page 27 The I-7550E will depend on this value to send data to Ethernet device. That means if the user set this property as zero, the I-7550E won’t send any data to Ethernet Device. If this value is bigger than configured output length, the I-7550E will only send the length of configured output, and the diagnostic message and error message will be written.
  • Page 28 When the I-7550E is in “Idle Mode” (Byte 0 =0), the value of Input data area will be zero. Table 13 Input data area of Read/Write Mode ((Byte 0 =1) Byte Data type Description...
  • Page 29 3.3.1 Byte 3). Byte 11: Total numbers of message index When the I-7550E receives the data that its length is over configured input length, the I-7550E will partition this data to several packages (Partition Method). This property will inform the user how many packages are the data partitioned.

  • Page 30: Example For Output Data Of "System Setting Module

    Now we have some examples to show the user how to set the value of output data area in “System setting module”. It will help the user easier to know the control method of the I-7550E. Please refer to 3.3.1 to know more detail about output data of “System setting module”.
  • Page 31 The I-7550E provides “Combined Method” that can combine the data from PROFIBUS Master and sends to Ethernet device at once. In this example, we assume the I-7550E is configured output data length as 220 Bytes, and the user wants to send 300 Bytes package to Ethernet device with connection ID 11.

  • Page 32: Example For Input Data Of "System Setting Module

    3.5 Example for Input data of “System setting module” 3.5.1 Single Package received When the I-7550E receives the data from Ethernet Device, there is some information put in input data area of “System setting module”. In this example, the length of the data is in the range of configured input length and the user can see the information as shown Table 18.
  • Page 33 I-7550E receives a data with 420 Bytes from connection ID 1. That means the I-7550E will partition this data into 2 packages. And these 2 input data of “System setting module” are as shown Table 19 and Table 20.
  • Page 34 Word 0x00 Input 7 Word 0x01 Input 8 Byte 0x00 Input 9 Word 0x00 Input 11 Byte 0x02 Input 12 Byte 0x01 Input 13 Word 0x1A4 Input 15 Byte 0xC8 I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 34...

  • Page 35: Communication

    A master station can be a PLC, PC or any other smart device. The system can be a mono-master system (Figure 23) or a multi-master system (Figure 24). The I- 7550E enables the integration of the Ethernet devices into a PROFIBUS DP network. Figure 23 Mono-master system I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 35...

  • Page 36: Gsd File

    7550E companion CD-ROM (PATH--> \profibus\converter\I-7550E\gsd\). The user can copy GSD file (IPDS0EB9.gsd ) and the Bitmap file ( ICP7550E.bmp,i_7550E.bmp ) to the PROFIBUS configuration tool. 4.2.1 The example of how to load GSD file In the following examples the CIF50-PB PROFIBUS Master card from Hilscher is used.
  • Page 37 Step 2: Click “insert slave” button in the PROFIBUS configuration tool. Figure 25 Insert PROFIBUS Slave device Step 3: Select I-7550E and click “Add” button to assign the I-7550E. Figure 26 Assign the I-7550E I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
  • Page 38 Step 4: Set the address of the I-7550E and click “OK” button. Figure 27 Set the address of the I-7550E Step 5: The I-7550E icon is shown in the window. It adds the I-7550E successfully in the software. Figure 28 Finish adding the I-7550E I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)

  • Page 39: The Configuration Of The Modules

    Chapter 5. 4.4 Diagnostic messages The I-7550E can record maximally 10 diagnostic messages at the same time. If the number of the diagnostic messages is bigger than 10, the I-7550E will not process other diagnostic message. The diagnostic messages have three types. They are “Connection ID Error”, “System Setting Module Error”, “Output data error”...

  • Page 40: Establish Connection With I-7550E

    When the I-7550E receives a “data output command” (output byte 1) from system setting module, and this command didn’t increase in order (ex: 0->1, 1- >2,…, 255->0), the I-7550E will think that it lose some output data of the PROFIBUS Master and a diagnostic message (“Trigger Byte Error”) will be sent by the I-7550E to the PROFIBUS Master.

  • Page 41: Data Exchange Example-I-7550E Is As Tcp Server

    If there is no error occurs, I-7550E proceeds into data exchange state. Users can observe the status indicator LED to know the state of I-7550E. At the meantime, if there is any error occurs, I-7550E will return to wait parameterization.
  • Page 42 The configuration and communication is done by the program “SyCon” provided by Hilscher. Step 1: Copy the GSD file and assign the I-7550E a valid station address (Please refer to the section 4.2 GSD file). Step 2: Connect I-7550E module to Ethernet and the PROFIBUS port to a PROFIBUS Master (Figure 30).
  • Page 43 Figure 31 Double click the I-7550E icon to open the “Slave configuration” window Figure 32 Select modules for I/O length Step 4: Close the “Slave Configuration” window by clicking the “OK” button Step 5: Now the setting done by the configuration tool has to be downloaded to the PROFIBUS Master.
  • Page 44 7550E. The default IP address is “192.168.255.1”. Figure 34 Use MiniOS7 utility to find IP address of the I-7550E  Open web browser (ex. IE). Enter IP address of the I-7550E in the Address field and press “Enter” to connect with I-7550E, and then enter default password (“icpdas”) to login to I-7550E in Login page...
  • Page 45 Figure 35 Browser the Web of I-7550E and enter the default password to login.  Click “Server IP Setting” to set the network configuration of the I- 7550E (please refer to user manual section 5.3). The network configuration of the I-7550E must have the same domain and different IP with the PC(TCP client Program) (ex: PC’s...
  • Page 46 I-7550E. The user can power on I-7550E again or press “Reboot” button to restart the I-7550E as shown Figure 37 Figure 37 Press “Save to Device” to save settings to the I-7550E, and restart the I-7550E. 4.6.1 Sending data from a PC(TCP client) to PROFIBUS Master -- Start the test program “TCPClient”...
  • Page 47 The user need to set the I-7550E in Read/Write mode(Please refer to section 3.3.1). We set Byte 0 of system setting module as 0x01 as shown Figure 39 Figure 39 Set Byte 0 of system setting module as 0x01to let the I-7550E in Read/Write mode.
  • Page 48 0x01. Now we need to set the necessary value in the output data are of “system setting module” and “Output module” for sending data to TCPClient 、 as shown Table 23 Table 24 and Figure 42 . I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 48...
  • Page 49 Output 23 Byte 0x44 Output 24 Byte 0x41 Output module Output 25 Byte 0x53 Output 26 Byte 0x54 Output 27 Byte 0x65 Output 28 Byte 0x73 Output 29 Byte 0x74 I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 49...
  • Page 50 After setting all values, set the Byte 1 of “System setting module” from 0 to 1. And it will trigger the I-7550E transfer data to TCPClient. TCPClient will receive data as shown Figure 43. About Trigger method, please refer to section 3.3.1.

  • Page 51: Data Exchange Example-I-7550E Is As Tcp Client

    The configuration and communication is done by the program “SyCon” provided by Hilscher. Step 1: Copy the GSD file and assign the I-7550E a valid station address (Please refer to the section 4.2 GSD file). Step 2: Connect I-7550E and PC by Figure 44.
  • Page 52 Figure 44 Wiring diagram between PC and I-7550E Step 3: Set the parameters of the I-7550E.We just need to configure the I/O length of Input/Output. The user can choose the I/O length depended on their requirement. In this example, we need 10 Bytes for...
  • Page 53 Figure 47 Click “Online->Download” to download the setting into PROFIBUS Master Step 6: Set the network of configuration of I-7550E as shown below:  Open MiniOS7 utility and press “F12” to find IP address of the I- 7550E. The default IP address is “192.168.255.1”.
  • Page 54 Figure 48 Use MiniOS7 utility to find IP address of the I-7550E  Open web browser (ex. IE). Enter IP address of the I-7550E in the Address field and press “Enter” to connect with I-7550E, and then enter default password (“icpdas”) to login to I-7550E in Login page as shown Figure 49.
  • Page 55  Press “Save to Device” to save settings to EEPROM of I-7550E. Figure 50 Set the configuration of Local IP  Click “Client IP Setting” to set I-7550E as TCP Client. Set TCP server’s IP(192.168.253.1) in C_IP9 field, and Time Out value as 4000, ReConnect Time as 8000, Port as 1000, and Protocol Type as 0.
  • Page 56 (3) Set the length of response data. (4) Press “Listen” to start TCP server service. Figure 52 TCPServer Program (5)When the I-7550E is in data exchange mode, it will connect to TCPServer as shown Figure 53. Figure 53 TCPServer Program connect with I-7550E I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
  • Page 57 The user need to set the I-7550E in Read/Write mode(Please refer to section 3.3.1). We set Byte 0 of system setting module as 0x01 as shown Figure 54 Figure 54 Set Byte 0 of system setting module as 0x01to let the I-7550E in Read/Write mode.
  • Page 58 0x65 Output 28 Byte 0x73 Output 29 Byte 0x74 Figure 55 The value of output data area -- Set the Byte 1 of “System setting module” from 0 to 1 I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 58...
  • Page 59 After setting all values, set the Byte 1 of “System setting module” from 0 to 1. And it will trigger the I-7550E transfer data to TCPServer. TCPServer will receive data as shown Figure 56. About Trigger method, please refer to section 3.3.1.

  • Page 60: Data Exchange Example-I-7550E Is As Udp Server

    The configuration and communication is done by the program “SyCon” provided by Hilscher. Step 1: Copy the GSD file and assign the I-7550E a valid station address (Please refer to the section 4.2 GSD file). Step 2: Connect I-7550E module to Ethernet and the PROFIBUS port to a PROFIBUS Master (Figure 58).
  • Page 61 Figure 58 Wiring diagram between PC and I-7550E Step 3: Set the parameters of the I-7550E.We just need to configure the I/O length of Input/Output. The user can choose the I/O length depended on their requirement. In this example, we need 10 Bytes for...
  • Page 62 Figure 61 Click “Online->Download” to download the setting into PROFIBUS Master Step 6: Set the network of configuration of I-7550E as shown below:  Open MiniOS7 utility and press “F12” to find IP address of the I- I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
  • Page 63 7550E. The default IP address is “192.168.255.1”. Figure 62 Use MiniOS7 utility to find IP address of the I-7550E  Open web browser (ex. IE). Enter IP address of the I-7550E in the Address field and press “Enter” to connect with I-7550E, and then enter default password (“icpdas”) to login to I-7550E in Login page...
  • Page 64 I-7550E. The user can power on I-7550E again or press “Reboot” button to restart the I-7550E. Figure 65 Press “Save to Device” to save settings to the I-7550E, and restart the I-7550E. I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
  • Page 65 Figure 66 UDPClient test program --Set the I-7550E in Read/Write mode. The user need to set the I-7550E in Read/Write mode(Please refer to section 3.3.1). We set Byte 0 of system setting module as 0x01 as shown Figure 67. I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
  • Page 66 Figure 67 Set Byte 0 of system setting module as 0x01to let the I-7550E in Read/Write mode. --Send Data to the PROFIBUS Master. The user can input data in the text box of UDPClient and press “Send” button 、 to send data to the PROFIBUS Master as shown Figure 68 Figure 69.
  • Page 67 0x0A 4.8.2 The PROFIBUS Master sends data to UDPclient Note: If UDP client device never sent data to the I-7550E, the I-7550E is impossible to send (response) data to UDP client device. -- Set the output data area of “System setting module”.
  • Page 68 Output 23 Byte 0x44 Output 24 Byte 0x41 Output module Output 25 Byte 0x53 Output 26 Byte 0x54 Output 27 Byte 0x65 Output 28 Byte 0x73 Output 29 Byte 0x74 I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 68...
  • Page 69 After setting all values, set the Byte 1 of “System setting module” from 0 to 1. And it will trigger the I-7550E transfer data to UDPClient. UDPClient will receive data as shown Figure 71. About Trigger method, please refer to section 3.3.1.

  • Page 70: Data Exchange Example-I-7550E Is As Udp Client

    The configuration and communication is done by the program “SyCon” provided by Hilscher. Step 1: Copy the GSD file and assign the I-7550E a valid station address (Please refer to the section 4.2 GSD file). Step 2: Connect I-7550E and PC by Figure 72.
  • Page 71 Figure 72 Wiring diagram between PC and I-7550E Step 3: Set the parameters of the I-7550E.We just need to configure the I/O length of Input/Output. The user can choose the I/O length depended on their requirement. In this example, we need 10 Bytes for...
  • Page 72 Figure 73 Double click the I-7550E icon to open the “Slave configuration” window Figure 74 Click “Parameter Data…” button to open the “Parameter Data” window Step 4: Close the “Slave Configuration” window by clicking the “OK” button Step 5: Now the setting done by the configuration tool has to be downloaded to the PROFIBUS Master.Click on the Master area in the...
  • Page 73 7550E. The default IP address is “192.168.255.1”. Figure 76 Use MiniOS7 utility to find IP address of the I-7550E  Open web browser (ex. IE). Enter IP address of the I-7550E in the Address field and press “Enter” to connect with I-7550E, and then enter default password (“icpdas”) to login to I-7550E in Login page...
  • Page 74 Figure 77 Browser the Web of I-7550E and enter the default password to login.  Click “Server IP Setting” to set the network configuration of the I- 7550E (please refer to user manual section 5.3). The network configuration of the I-7550E must have the same domain and different IP with the PC(UDP server Program) (ex: PC’s...
  • Page 75 IP(192.168.253.1) in C_IP9 field, and Protocol Type as 1. Please keep others value in default.  Check “C_IP9” in Enable Connection IP field.  Press “Save to Device” to save settings to EEPROM of I-7550E. And restart the I-7550E. Figure 79 Set the configuration of TCP Client.
  • Page 76 The user need to set the I-7550E in Read/Write mode(Please refer to section 3.3.1). We set Byte 0 of system setting module as 0x01 as shown Figure 81. Figure 81 Set Byte 0 of system setting module as 0x01to let the I-7550E in Read/Write mode.
  • Page 77 Output 23 Byte 0x44 Output 24 Byte 0x41 Output module Output 25 Byte 0x53 Output 26 Byte 0x54 Output 27 Byte 0x65 Output 28 Byte 0x73 Output 29 Byte 0x74 I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 77...
  • Page 78 After setting all values, set the Byte 1 of “System setting module” from 0 to 1. And it will trigger the I-7550E transfer data to UDPServer. UDPServer will receive data as shown Figure 83. About Trigger method, please refer to section 3.3.1.
  • Page 79 Figure 83 UDPServer receives data and response data to PROFIBUS Master -- PROFIBUS Master receives echo data from UDPServer. UDPServer will response 10 Bytes data(“ICPDASTest) to PROFIBUS Master as shown Figure 84. Figure 84 PROFIBUS Master receives data from TCPServer I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 79...
  • Page 80 Input 7 Word 0x09 System setting Input 8 Byte 0x00 module Input 9 Word 0x00 Input 11 Byte 0x01 Input 12 Byte 0x00 Input 13 Word 0x0A Input 15 Byte 0x0A I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 80...

  • Page 81: Configuration With Web Browser

    5. Configuration with Web Browser 5.1 Connecting to Web Server Open web browser (ex. IE) and enter the IP address of the I-7550E module in the Address field and press “Enter” to connect to I-7550E module, as shown in Figure 85...

  • Page 82: Web Configuration-Function Menu

    Figure 87 IP address Note:  The user can turn the switch on the back of the I-7550E to setting mode (Please refer to section 2.6), and then the IP address of I- 7550E will become default value temporarily. The default IP address is 192.168.255.1...

  • Page 83: Web Configuration-Setup Page

    Login Figure 89 Login Note:  The user can turn the switch on the back of the I-7550E to setting mode (Please refer to section 2.6) , and then user can login by using the default password of the I-7550E.
  • Page 84 Enable Connection IP : When TCP/UDP server is enabled, it allows total maximum 8 connections, the user can set the numbers of allowing IPs. For TCP server, if any IP that is not allowed try to connect to I-7550E, it will be denied; For UDP server, the data will be ignored.
  • Page 85 D. Client IP Setting The user can set client IP setting when I-7550E as TCP/UDP client in this page, as shown in Figure 92. If Client IP setting is ok, user needs to restart I-7550E to let new settings effective.
  • Page 86 (4) Enable Connection IP : When the user enable connection IP, I-7550E will try to connect to this IP during PROFIBUS is in Data exchange mode. Time out Value: the time that I-7550E tries to connect to TCP server. ReConnect Time: I-7550E will reconnect to TCP server if the connection is fail.
  • Page 87 Information is shown in Figure 94. This page has 5 parts, they are (1)PROFIBUS INFO、(2)ERROR MSG INFO、(3)DIAGNOSTIC INFO、 (4)FIFO BUFFER INFO and (5)DEVICE INFO. Figure 94 Information (1) PROFIBUS INFO： PROFIBUS Status：This page shows PROFIBUS mode、 PROFIBUS address and PROFIBUS baud rate. I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 87...
  • Page 88 (2) ERROR MSG INFO： The user can check Error message in this page as shown in Figure 95. The I-7550E will log some errors that are not affect communication. It will help the user to find out the issue of data communication.
  • Page 89 Figure 95 Error Message INFO (3) DIAGNOSTIC INFO： When PROFIBUS state is online, this page will shows the diagnostic messages of I-7550E, as shown in Figure 96. Figure 96 Diagnostic info (4) FIFO BUFFER INFO： This page shows the FIFO usage information as shown in Figure 97.
  • Page 90 Figure 97 Diagnostic info (5) DEVICE INFO： This page shows the device information of I-7550E, as shown in Figure 98. I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 90...
  • Page 91 Figure 98 Device info I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 91...

  • Page 92: Virtual Com Port/Vxcomm Utility

    6. Virtual COM Port/VxComm Utility I-7550E supports virtual COM Port. VxComm Utility provides the user the way that maps Ethernet to COM Port. Please notice that the IP address of PC must be set in “Server IP Setting” page in Web Configuration.(Please refer to section 5.3). The connection ID of Virtual COM Port is 17, the user need to set Byte 3 of output data area in “System setting module”...
  • Page 93 Figure 100 Install Process (2) Step 4： When the “Select Additional Tasks” screen appears, select the appropriate option and click the "Next" button. Figure 101 Install Process (3) I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 93...

  • Page 94: Setup Virtual Com Port

    Utility in Startup manual or on desktop as below icon. 6.2 Setup Virtual COM Port Now an I-7550E with an IP address 192.168.253.2 and a PC with an IP address 192.168.253.1 are used as an example. Step 1：...
  • Page 95 Figure 103 Setup Process (1) Step 2： Click “Save to Device” button and restart I-7550E. Figure 104 Setup Process (2) Step 3： Open VxComm Utility and click the “Search Servers” button, The VxComm Utility will then find I-7550E device. I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014)
  • Page 96 Figure 105 Setup Process (3) Step 4： Right click on “I-7550E” in the list, and then select “Add Server(s)” from the popup menu Figure 106 Setup Process (4) Step 5： When the “Adding Servers” window is popped up, select a valid COM Port and click “OK”...
  • Page 97 Driver” from the “Tools” menu. Figure 108 Setup Process (6) Step 7： Click the “Restart Driver” button to save the settings and then exit the VxComm Utility. Now a virtual COM Port is available. I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 97...

  • Page 98: Remove Virtual Com Port

    Server” from the drop-down menu. Figure 110 Remove Process (1) Step 2： When the following alert is displayed, click the "Yes" button to confirm the removed of the server. Figure 111 Remove Process (2) I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 98...
  • Page 99 Figure 112 Remove Process (3) Step 4： Click the “Restart Driver” button to save the settings and then exit the VxComm Utility. Now a virtual COM Port is available. Figure 113 Remove Process (4) I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 99...

  • Page 100: Troubleshooting

    PROFIBUS Master station. The configuration and address of I- 7550E in the PROFIBUS Master station are not correct. It means the I-7550E is in setting mode and connects with Utility. 'ERR' LED indication of the Please set the I-7550E to operation mode (please refer section 2.6...

  • Page 101: Dimensions

    8. Dimensions I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 101...
  • Page 102 I-7550E PROFIBUS/Ethernet Converter User Manual (Version 1.00, June/2014) PAGE: 102...
