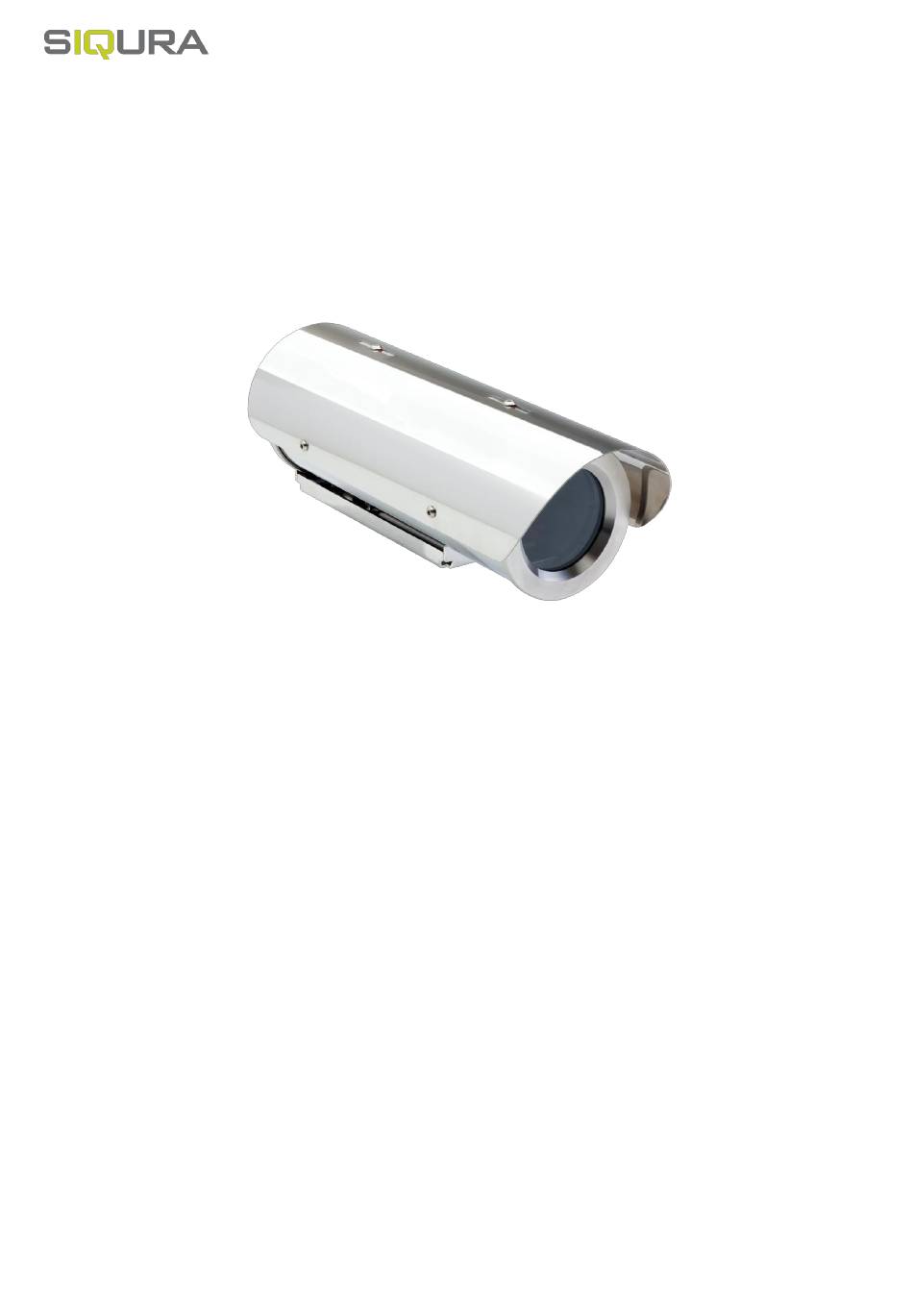

- Page 1 Installation manual SA FIX Series 316L Fixed camera station Document name: safixseries_v3-IM-EN.docx...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Installing The Camera
316L sun-shield, a thermostatically controlled heater element, and a integrated wiper. The housing is not sold separately, it is only available in combination with a Siqura daylight camera module, such as the BC822v2H3-AS, and an interface (INT-RJ/SM/MM). - Page 4 Screws and washers 1. Open the housing a. Loosen the screw at the bottom of the external rail. The screw is fixed to a nut welded on the housing. b. Unscrew the two M6 screws on the rear flange. c. Slide the housing outer body away from the back flange. Be careful not to lose screws, washers and O-rings.
- Page 5 7. Connecting a external washer pump (Models with integrated IP-camera and wiper) Models with integrated wiper are fitted with a mini telemetry receiver. Connect the washer pump to AUX 2. (M3, pin 3 & 4) To Washer Tank (SA-WP10) 8. Setting PTZ camera number (Analog models only) The 8 way dip-switch on the telemetry receiver (DIS1) can be used to set up the unit address (binary).
- Page 6 DIMENSIONS SA-FIX: SA-FIX T 6 of 7 | P a g e...
- Page 7 SA-FIX W 7 of 7 | P a g e...
