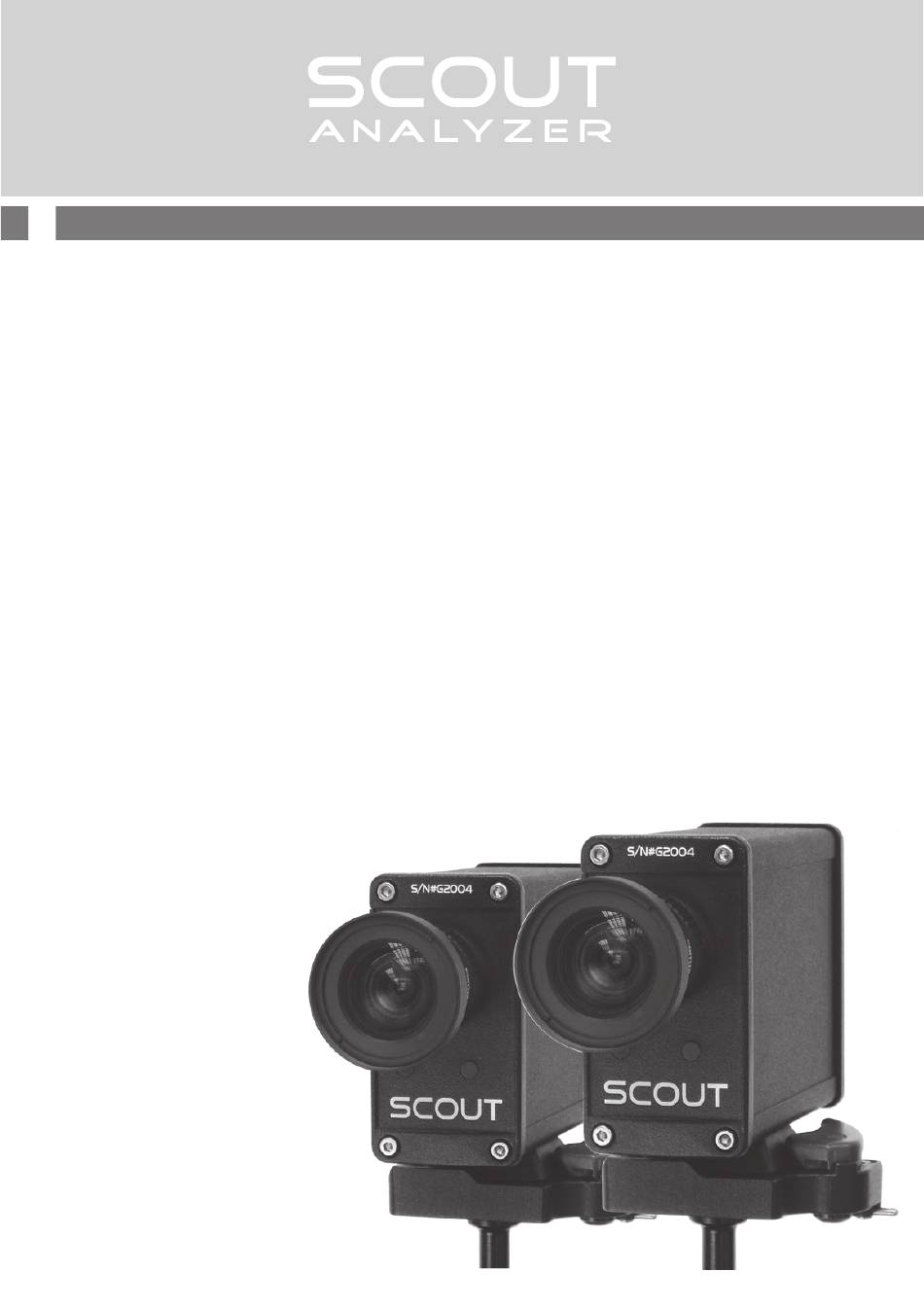

- Page 1 SCA-UI-#170327 w w w . s c o u t - a n a l y z e r . c o m > > DUAL CAMERA SYSTEM - QUICK START GUIDE...
-
Page 2: Table Of Contents
SCA-UI-#170327 w w w . s c o u t - a n a l y z e r . c o m > > CONTENTS Wiring instructions Windows login (as delivered) Start software Logon screen Buttons and context menus Live mode (capture mode) Camera settings (predefined sets) Video impact detection... -
Page 4: Windows Login (As Delivered)
LOGON SCREEN The first screen Scout Analyzer displays is the logon screen. Here you can create or choose Pro and Student accounts for the Swing Archive. The last swing stored for a student is shown to the right of the selection fields. -
Page 5: Buttons And Context Menus
> > BUTTONS AND CONTEXT MENUS Buttons of the Scout Analyzer software can show three different states. These states indicate the status of the corresponding function that a button provides: selectable active inactive For some buttons additional functions are available in their context menus. You can open the context menu with a right click on the button. -
Page 6: Video Impact Detection
> > VIDEO IMPACT DETECTION When the software is in “Live Mode” it can automatically detect an impact of a golf swing by using the visual impact detector. • start “Live Mode” by clicking [LIVE] or by pressing the F1 - Key on your keyboard •... -
Page 7: Other Impact Detection
“external impact” Foresight GC2 If you have the Foresight GC2 connected with your SCOUT ANALYZER system you can use the GC2 as an external impact detector. Just make sure the GC2 is connected and for impact detection you have: “external impact detector”... -
Page 8: Trouble With Impact Detection
> > OTHER IMPACT DETECTION Trouble with impact detection ? # impact marker position In case the marker “I” for “impact position” is not positioned correctly, please make sure the acous- tic impact detector works properly. You can assure that by checking the blue LED of the impact detec- tor. - Page 9 > > COMPARE For detailed comparison the compare-mode allows to display the same perspectives (down the line or fron- tal) of two different swing recordings side by side. Like in “Play-Mode” it is possible in compare to replay play both swings synchronously or navigate through the swings step by step.To activate the compare mode click on the comp-button (see image below at pos.
-
Page 10: Zoom
> > ZOOM To activate the zoom function click on the zoom-button. The cursor then changes its icon to a magnifier symbol. Click on the image to zoom into selected image section. To deactivate the zoom funtion click on the zoom button again. The images then are shown as actual size automatically. >... - Page 11 > > FUNCTION OVERVIEW Function Panel (right) Open Menu Open menu for further settings. Video Slots tempory storage for swing recordings. Use context menu (right click) to store recordings permanently in your swing archive. Impact Tool to mark ball position for visual impact detection. Line Cross Activate tool to draw a line cross.
-
Page 12: List Of Shortcuts
> > LIST OF SHORTKEYS Function Keys: • F1 start and stop LIVE video capture • F2 enable or disable the impact sensor (only in LIVE mode) • F8 set impact manually (for practice swings) • F10 delete last drawing video-picture left •...
