Summary of Contents for Scout scout

  • Page 1 started...

  • Page 2: Download App

    Scout is a self-installed security system - no tools required. Install Scout from your smartphone or tablet for real-time feedback and instructions. Let’s get started: step one: download app download the Scout app in the Apple App Store, Google Play Store or visit scoutalarm.com/install...
  • Page 3 Included Scout Hub Ethernet Cord Door Panel Power Adapter Quick Start Card Window Decals Optional Access Sensor Motion Sensor Yard Sign...
  • Page 4 step two: register Once you have downloaded the app, you will be prompted to sign up. Use the installation code on the Quick Start Card in the hub box to verify your system and proceed with creating your account. installation code SA1234...

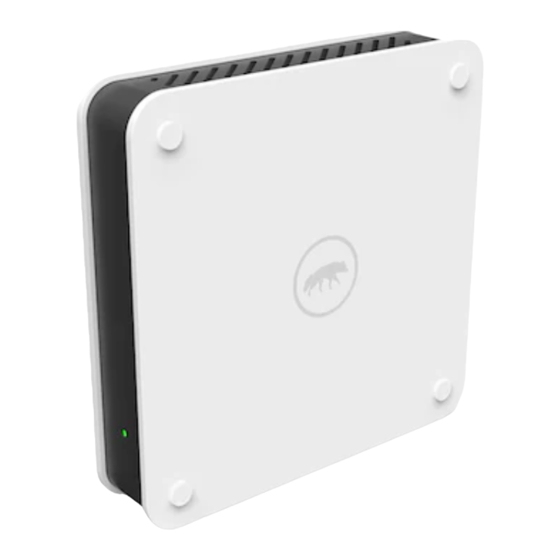

  • Page 5 The hub is the brains of Scout and essential to your system. The hub has a 150 ft. range. Let’s get started setting up the hub and then follow along in the app to install the rest of your devices.
  • Page 6 step three: power up Locate a power outlet close to your internet router and plug the power cord into the hub and the wall. An LED light on the front of the hub will turn on to indicate that the hub is powered on.

  • Page 7: Connect Internet

    step four: connect internet Plug the provided ethernet cord into your router and the back of the hub. Lights near the ethernet port will indicate that the ethernet plug is connected correctly.

  • Page 8: Confirm Connection

    As the hub connects, it will flash a variety of lights. A solid green light means you are connected to our servers. Once you have a solid green light, please proceed with the instructions in the Scout app to continue setting up the sytem.

  • Page 9: Installation Notes

    Install the sensor closest to the hub first and work your way out. Scout sensors have a range of approximately 150 ft. battery pull tabs Only remove the battery pull tabs when pull prompted. Pulling multiple tabs at once may result in pairing the wrong device.
  • Page 10 If you have questions or need help at any point during the installation: see our knowledge base at scoutalarm.com/support watch Scout tutorial videos at scoutalarm.com/support e-mail support@scoutalarm.com...

  • Page 11: Important Safety Instructions

    Monitor your device’s battery level often to ensure proper operation. Use a dry cloth to clean your Scout device. Do not use liquids of any kind. Exposure to liquids, detergents, or abrasive cleaners may scratch your device and could affect performance.
  • Page 12 Operating environment details can be found at scoutalarm.com/legal Recycling and Disposal The above symbol on your Scout device and the device’s packaging is in accordance with the European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive. In accordance with WEEE, your Scout device should be disposed of or recycled of separately from normal household waste.
  • Page 13 Z-Wave certified devices can be included and excluded from your Scout system in the fol- lowing manner; to include a Z-Wave device, remove the battery pull tab and follow along in the Scout app while the device pairs to the Scout hub and confirms inclusion of the device...
  • Page 14 ID in that group, and the node ID must be 1. To have the Scout hub learn into an existing network, navigate to the hub icon under device tab, scroll down to the Z-Wave section and tap on the Learn button. To factory reset the Z- Wave network on the Scout hub, navigate to the hub icon under the device tab, scroll down to the Z-Wave section and tap on the Leave button.

  • Page 15: Software License Agreement

    Service and Support Except for its battery, your Scout device does not contain any user-serviceable parts. If you need service, contact Scout at one of the numbers below. Helpful information is also available on our website at: support.scoutalarm.com Toll-Free Within the United States: 1-844-AT-SCOUT (287-2688)
  • Page 16 local laws. This Warranty does not apply to any Product misused, abused, altered or used other than as approved in writing by Seller, as determined by Seller’s inspection of the Product. Other limitations on this Warranty are described in Seller’s End User License Agreement (“EULA”) located at www.scoutalarm.com/legal.
