Dreamline ENIGMA Z Installation Instructions Manual

Shower enclosure
Hide thumbs

Advertisement

Quick Links

Download this manual
ENIGMA Z
S
E
I
I
HOWER
NCLOSURE
NSTALLATION
NSTRUCTIONS
IMPORTANT
DreamLine
reserves the right to alter, modify or redesign products at any time without prior
TM
notice. For the latest up-to-date technical drawings, manuals or any other details please refer
to the
support.BathAuthority.com
web page.
Please read these instructions carefully before installing. If you have any questions regarding
installation, please call our technical support specialists Monday through Friday 9:00 AM – 5:00
PM EST at Phone: 1-866-731-2244, Fax:
1-866-227-1533
or e-mail our technical support group
support@BathAuthority.com.
at
TM
For more information on
DreamLine
Shower Enclosures
please visit
www.BathAuthority.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENIGMA Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dreamline ENIGMA Z

Summary of Contents for Dreamline ENIGMA Z

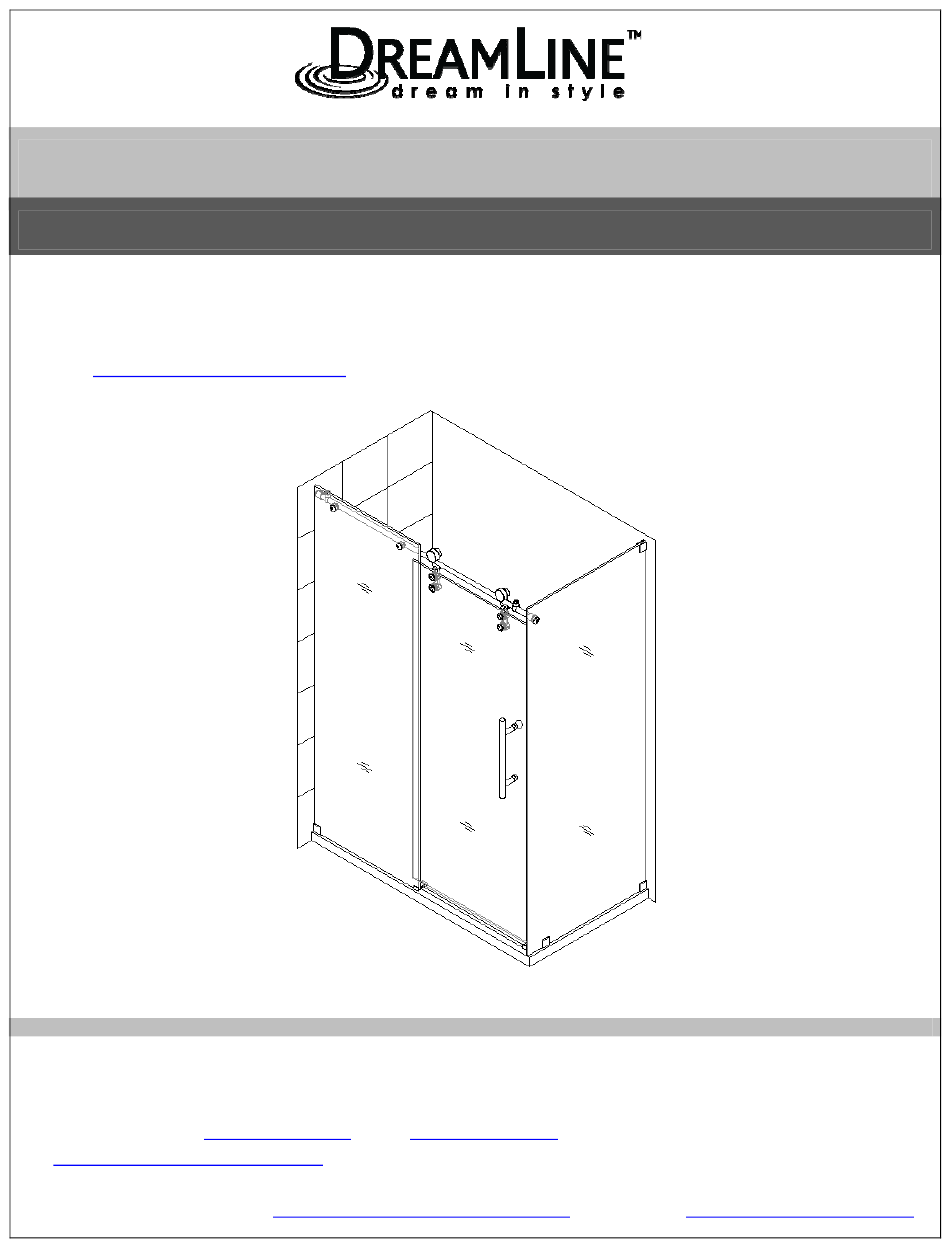

  • Page 1 ENIGMA Z HOWER NCLOSURE NSTALLATION NSTRUCTIONS IMPORTANT DreamLine reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals or any other details please refer to the support.BathAuthority.com web page.

  • Page 2: Tools Required

    Shower Door Components”. Examine boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 5 business days of the delivery date. Please note that DreamLine will not replace any damaged products or missing parts free of charge after 5 business days or if the product has been installed.

  • Page 3: Packing List

    Before discarding the carton, check for small hardware bags that tend to fall to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. NOTE: Retain these installation instructions for future reference. “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 4 Shower Enclosure Plan 32 1/2” (825mm) 46 1/2” (1182mm 34 1/2” (877mm) 58 1/2” (1487mm) NOTE: To match the shower base, you have to cut 2” off from the Upper Guide rail (03) “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 5 See Fig. 1 for details. Fig. 1 2. Attach the Wall brackets (19) to the Return panel (22). Bolted side has to face inside the shower. See Fig. 2 and Fig. 3 for details. Fig. 2 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 6 Make sure the Return panel is aligned with the shower base or the threshold. See the “Shower Enclosure Plan” for the dimensions. Some trimming may be required. See Fig. 4 for details. Fig. 4 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 7 Drill the hole in the shower base or threshold using Ø 1/8” drill bit and mount the Wall bracket (19) using the Round head screw ST4.2×25 (17). See Fig. 6 for details Fig. 6 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 8 See Fig. 7 for details. Fig. 7 7. Measure the distance between the finished walls and the internal side of the Return Panel (22). This distance is marked as “W”. See Fig. 8 for details. Fig. 8 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 9 Slide the Guide Rail brackets (08) on each end of the Upper guide rail and temporarily secure them as well. Assemble the Wall Bracket (19) to the bottom corner of the Stationary glass (02). See Fig. 10 and Fig. 11 for details. Fig. 10 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 10 Upper Guide Rail (03) to the Return panel (22). Slightly tighten the set screws. (Please note that the Upper Guide rail secured on the Stationary Glass must face inside the shower). See Fig. 12 for details. Fig. 12 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 11 Stationary glass and the Guide Rail bracket from the Upper Guide Rail (03) and by placing them back to the outlined positions mark the drilling holes on the wall. See fig. 14 for details. Fig. 14 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 12 Guide rail bracket on the wall until the top rail is absolutely vertical. Tighten the screws on both sides of the Guide rail bracket. See Fig. 16 and Fig. 17 for details. Fig. 16 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 13 Guide rail bracket (08) on the wall and adjust Glass connector (21) on the Return panel (22) until the top rail is absolutely vertical. Tighten the screws on both sides of the Guide rail bracket. See Fig. 18 for details. Fig. 18 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 14 Fasten the Guide block and the Threshold bracket to the shower base or threshold with the Round head screw ST4.2×25 (17). Cover holes with the provided decorative plugs. See Fig. 20 for details. Ø1/8” Fig. 20 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 15 Tighten the set screw to fasten them in place. Adjust the Roller guards on both Roller assemblies to ensure that the Glass door is secure to the Upper guide rail. See Fig. 22 for details. Fig. 22 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 16 Caulk Caulk Fig. 23 21. Apply silicone along the connections of the Stationary glass and Return Panel with the wall and the shower base or threshold. See Fig. 24 for details. Caulk Fig. 24 “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...

  • Page 17: Product Maintenance

    Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish, work with (not across) the grain. Never use abrasive sponge or cloth, steel wool or wired brushes. “ENIGMA Z” Enclosure Rev.1 Ver.1 05/2013...
  • Page 18   WARRANTY TERMS  DreamLine  will,  at  its  election,  repair  or  replace  the  product  found  by  DreamLine  in  its  sole  judgment,  to  be  defective  within  the  warranty  period  under  normal  residential  use  and  maintenance.  The replacement of a product is limited to supplying a replacement product or part (same as existing or if not available, comparable product). DreamLine warranty obligation  shall be discharged upon tender of parts, replacement or repair of the product. Purchaser’s refusal to accept the tender terminates all warranty obligations and VOIDS THE WARRANTY. Cost  of  freight  for  returning  products  to  DreamLine  for  repairs  or  replacement  under  this  limited  warranty  are  the  responsibility  of  the  customer.  Cost  of  freight  associated  with  shipping  of ...
